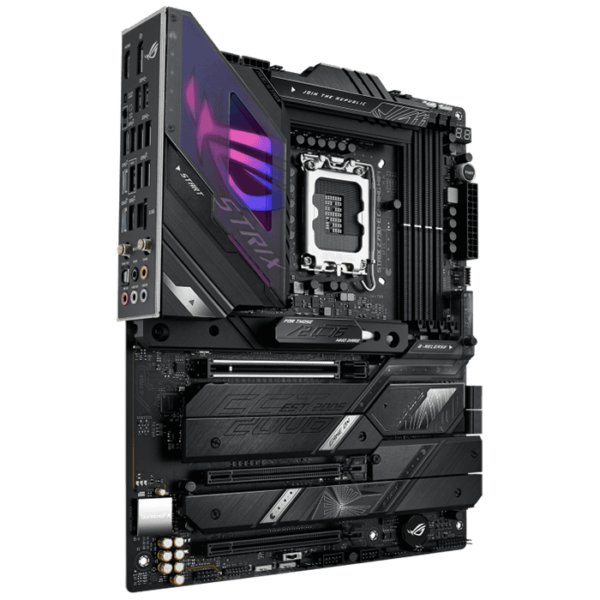

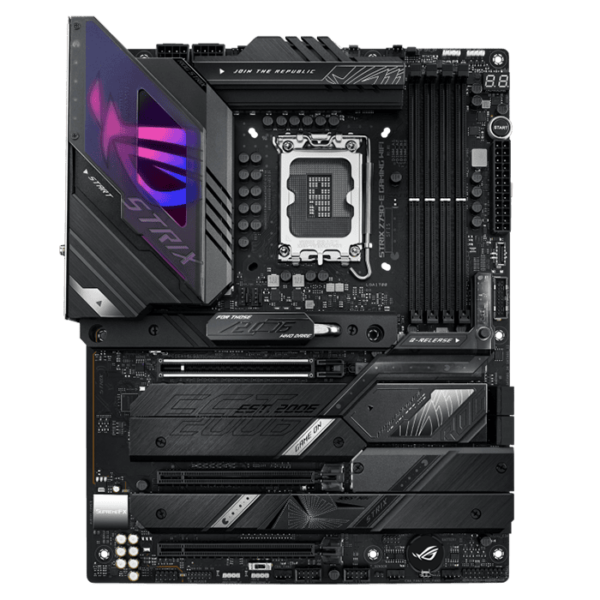

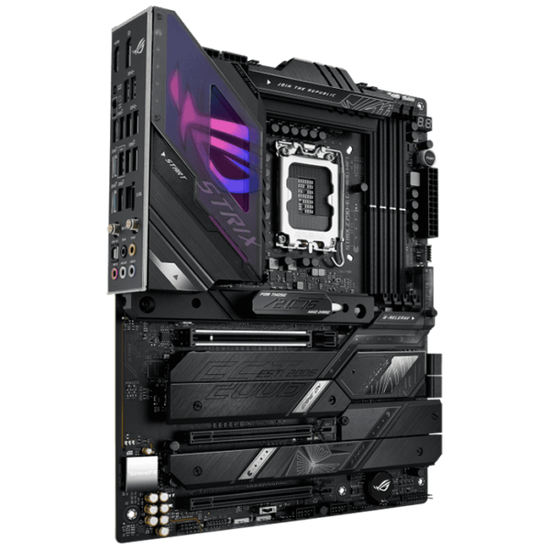

Asus ROG STRIX Z790-E GAMING WiFi Intel® Z790 LGA 1700 ATX motherboard with 18 + 1 power stages, DDR5, five M.2 slots

Dhs. 2,184.00
Dhs. 2,184.00
Dhs. 2,590.00
Intel® LGA 1700 socket: Supports 13th Gen Intel® Core™ processors, along with 12th Gen Intel Core™, Pentium® Gold, and Celeron® Processors Enhanced Power Solution: Employs an 18 + 1 power solution, delivering 90A per stage, backed by dual ProCool II...
Availability: In stock Out of stock

Free Delivery and Returns

Free Standard Delivery All Over UAE

We will dispatch the Product in 1-2 Days. Product will deliver in Maximum 3 - 5 Days.

You can return your order for any reason, free of charge, within 60 days.

Build Your Gaming Setup

Feel free to contact our customer support for building your dream gaming setup
Asus ROG STRIX Z790-E GAMING WiFi Intel® Z790 LGA 1700 ATX motherboard with 18 + 1 power stages, DDR5, five M.2 slotsAsus ROG STRIX Z790-E GAMING WiFi Intel® Z790 LGA 1700 ATX motherboard with 18 + 1 power stages, DDR5, five M.2 slots

Intel® LGA 1700 socket:

Supports 13th Gen Intel® Core™ processors, along with 12th Gen Intel Core™, Pentium® Gold, and Celeron® Processors

Enhanced Power Solution:

Employs an 18 + 1 power solution, delivering 90A per stage, backed by dual ProCool II power connectors, premium alloy chokes, and resilient capacitors for multi-core processors

Optimized VRM Cooling:

Equipped with large heatsinks integrated within the I/O cover, supported by high-conductivity thermal pads, and joined via an L-shaped heatpipe for efficient heat dissipation

Cutting-Edge M.2 Support:

Showcases a PCIe® 5.0 M.2 slot with Combo-sink and backplate, along with four PCIe 4.0 M.2 slots, all fitted with individual heatsinks

Expanded Connectivity:

Features a USB 3.2 Gen 2x2 Type-C® rear I/O port and front-panel connector supporting PD 3.0 up to 30W, plus eleven additional USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4 Advanced Networking: Offers on-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet, fortified with ASUS LANGuard for a reliable network experience

Intelligent Control:

Showcases ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation, streamlining setup and enhancing overall system performance

Immersive Gaming Audio:

Fitted with ALC4080 partnered with Savitech SV3H712 amplifier, supported by DTS® Sound Unbound and Sonic Studio III for an enriched gaming audio experience

Unrivaled Customization:

Includes ASUS-exclusive Aura Sync RGB lighting, one RGB header, and three addressable Gen 2 headers, allowing for personalized aesthetics

DIY-Friendly Design:

Boasts user-friendly elements like PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack™ button, BIOS FlashBack LED, and Clear CMOS button for added convenience

Trusted Software:

Offers a bundled 60-day AIDA64 Extreme trial subscription and a user-friendly UEFI BIOS dashboard integrated with MemTest86

Specification,

CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z790 Chipset
Memory 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/ 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.



** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slot Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slotIntel® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot* Please check the PCIe bifurcation table
on the support site (https://www.asus.com/support/FAQ/1037507/).
** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.
*** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
USB Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
7 x USB 3.2 Gen 2 ports  (6 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports  (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectorsStorage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s portsUSB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports



Miscellaneous
3 x Addressable Gen 2 headers
1 x Alternative PCIe Mode Switch
1 x AURA RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Start button
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features Extreme Engine Digi+
– 5K Black Metallic Capacitors

ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink designASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM



AURA Sync
– AURA RGB header
– Addressable Gen 2 RGB headers

Front Panel USB 3.2 Gen 2×2 with PD Fast-charge Support
– Support: up to 30W charging
– Output: 5/9V max. 3A, 12V max 2.5A
– Compatible with PD3.0
Software Features ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound UnboundASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator- Aura Sync
– Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– Easy Optimization with AI Overclocking
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cablesAdditional Cooling Kit
1 x DDR5 Fan holder
1 x VRM Fan holder
1 x Thermal pad for M.2Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber



PackageDocumentation
1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty 3 Years
