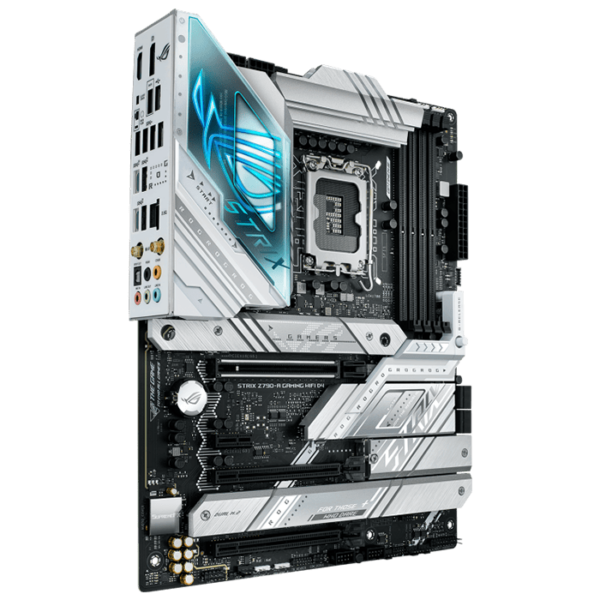

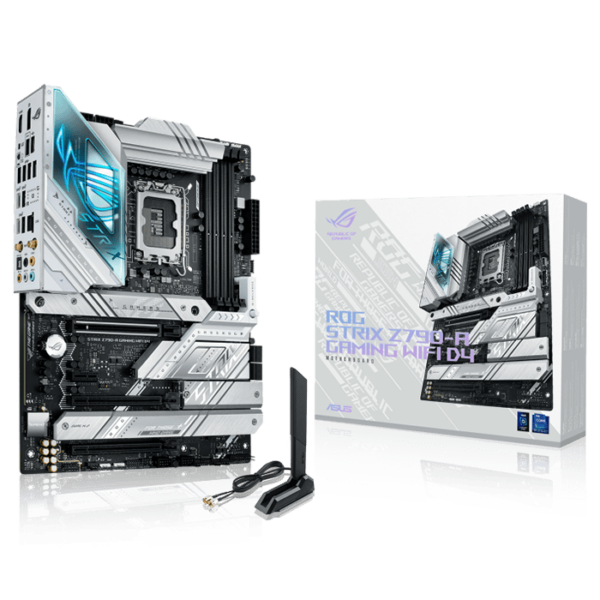

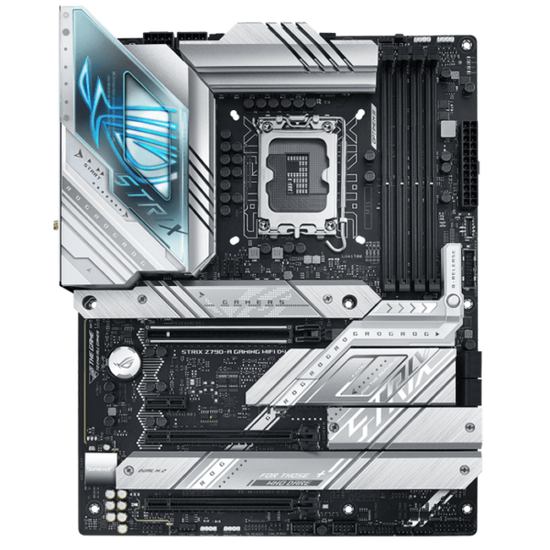

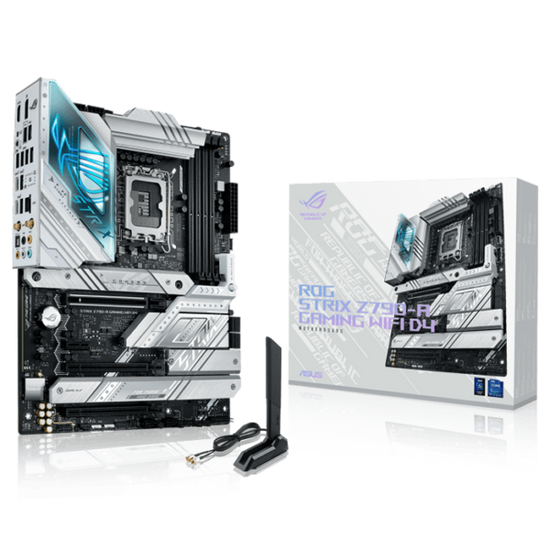

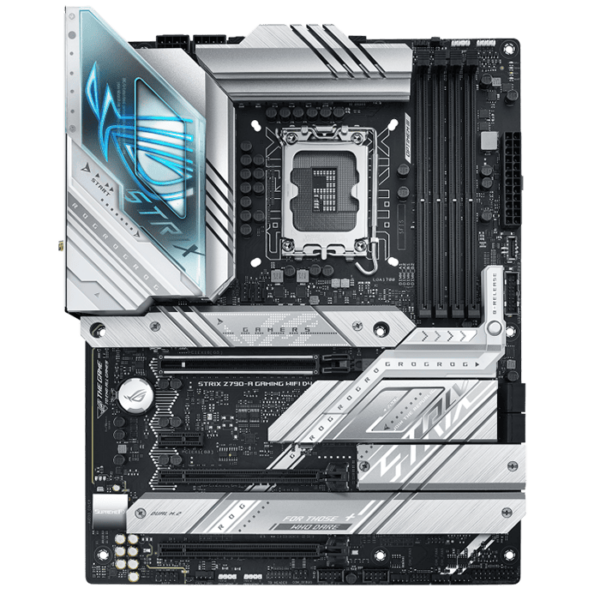

Asus ROG STRIX Z790-A GAMING WiFi D4 Intel® Z790 LGA 1700 ATX motherboard with 16 + 1 power stages, DDR4 memory support

Dhs. 1,459.00
Dhs. 1,459.00
Dhs. 1,920.00
Intel® LGA 1700 socket: Compatible with 13th Gen Intel® Core™ processors, along with 12th Gen Intel Core™, Pentium® Gold, and Celeron® Processors Power-Packed Solution: Incorporates a 16 + 1 power solution capable of delivering 70A per stage, reinforced by dual...
Availability: In stock Out of stock

Free Delivery and Returns

Free Standard Delivery All Over UAE

We will dispatch the Product in 1-2 Days. Product will deliver in Maximum 3 - 5 Days.

You can return your order for any reason, free of charge, within 60 days.

Build Your Gaming Setup

Feel free to contact our customer support for building your dream gaming setup
Asus ROG STRIX Z790-A GAMING WiFi D4 Intel® Z790 LGA 1700 ATX motherboard with 16 + 1 power stages, DDR4 memory supportAsus ROG STRIX Z790-A GAMING WiFi D4 Intel® Z790 LGA 1700 ATX motherboard with 16 + 1 power stages, DDR4 memory supportAsus ROG STRIX Z790-A GAMING WiFi D4 Intel® Z790 LGA 1700 ATX motherboard with 16 + 1 power stages, DDR4 memory supportAsus ROG STRIX Z790-A GAMING WiFi D4 Intel® Z790 LGA 1700 ATX motherboard with 16 + 1 power stages, DDR4 memory supportAsus ROG STRIX Z790-A GAMING WiFi D4 Intel® Z790 LGA 1700 ATX motherboard with 16 + 1 power stages, DDR4 memory support

Intel® LGA 1700 socket:

Compatible with 13th Gen Intel® Core™ processors, along with 12th Gen Intel Core™, Pentium® Gold, and Celeron® Processors

Power-Packed Solution:

Incorporates a 16 + 1 power solution capable of delivering 70A per stage, reinforced by dual ProCool II power connectors, premium alloy chokes, and long-lasting capacitors, ensuring seamless performance for multi-core processors o

Optimized VRM Cooling:

Fitted with large heatsinks, integrated within the I/O cover, along with high-conductivity thermal pads for efficient heat dissipation

Extensive M.2 Support:

Features one PCIe® 4.0 M.2 slot with a dedicated heatsink and backplate, complemented by three PCIe 4.0 M.2 slots, all equipped with individual heatsinks

Broad Connectivity:

Includes a USB 3.2 Gen 2x2 Type-C® rear I/O port, an extra front-panel connector supporting PD 3.0 up to 30W, USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4

High-Speed Networking:

On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet, fortified by ASUS LANGuard for a reliable network experience

Intelligent Control:

Incorporates ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation, simplifying setup and enhancing overall system performance

Immersive Gaming Audio:

Equipped with ALC4080 paired with Savitech SV3H712 amplifier, supported by DTS® Sound Unbound and Sonic Studio III Unrivaled Customization: ASUS-exclusive Aura Sync RGB lighting with one RGB header and addressable Gen 2 headers for personalizing the visual experience

User-Friendly Design:

Features like PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack™ button, BIOS FlashBack LED, and Clear CMOS button for added user

convenience Trusted Software:

Bundled 60-day AIDA64 Extreme trial subscription, accompanied by an intuitive UEFI BIOS dashboard integrated with MemTest86

Specification,

CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z790 Chipset
Memory Intel® 13th Gen Processors
4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 8K@60Hz as specified in DisplayPort 1.4.
*** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel® 13th  & 12th Gen Processors*
1 x PCIe 5.0 x16 slot**
Intel® Z790 Chipset
2 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.
*** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th  & 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.2
* WiFi 6E 6GHz regulatory may vary between countries.
USB Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
7 x USB 3.2 Gen 2 ports  (6 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports  (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– ALC4080 + Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover

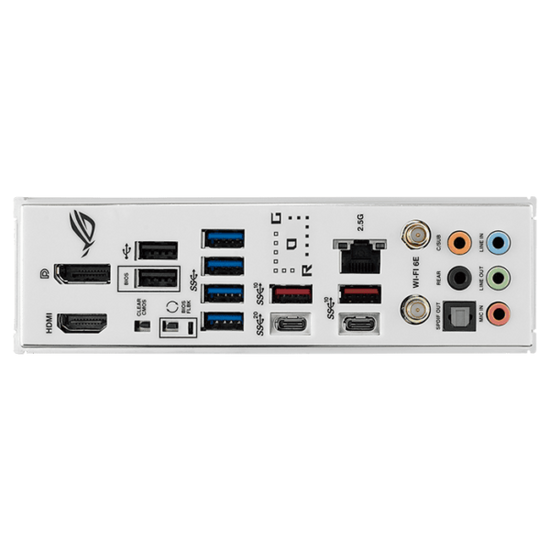

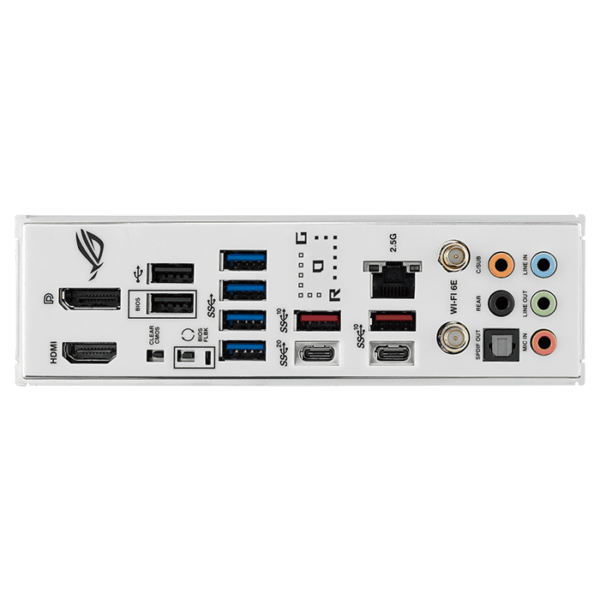

Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alternative PCIe Mode Switch
1 x AURA RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Start button
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– AURA RGB header
– Addressable Gen 2 RGB headers
Front Panel USB 3.2 Gen 2×2 with PD Fast-charge Support
– Support: up to 30W charging
– Output: 5/9V max. 3A, 12V max 2.5A
– Compatible with PD3.0
Software Features ROG Exclusive Software
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– Anti-virus software
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
-Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancelation
AI Suite 3
– Easy Optimization with AI Overclocking
  TPU
  DIGI+ VRM
  Turbo app
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

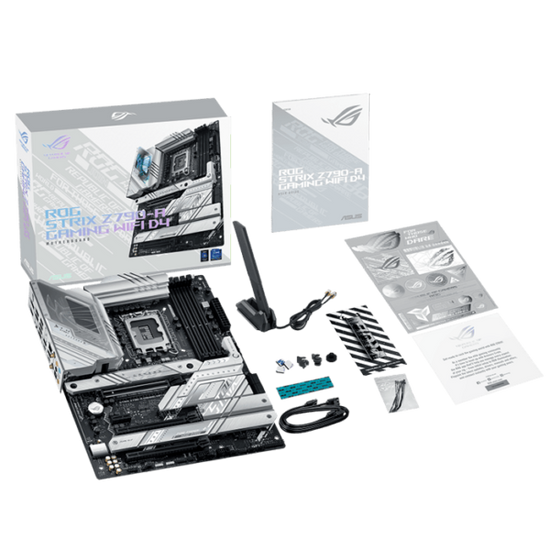

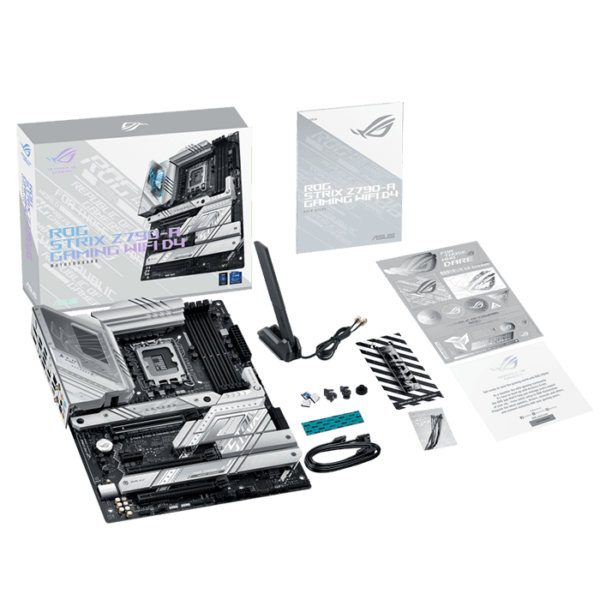

Accessories Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x DDR5 Fan holder
1 x VRM Fan holder
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG Graphics card holder
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber Package
Documentation
1 x User manual
Operating System Windows® 10 64-bit, Windows® 11 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Dimension Motherboard: 30.5cm x 24.4cm
Color Box: 34.3cm x 27.3cm x 7.7cm
Weight Motherboard: 1.717Kg
Color Box: 2.68Kg
