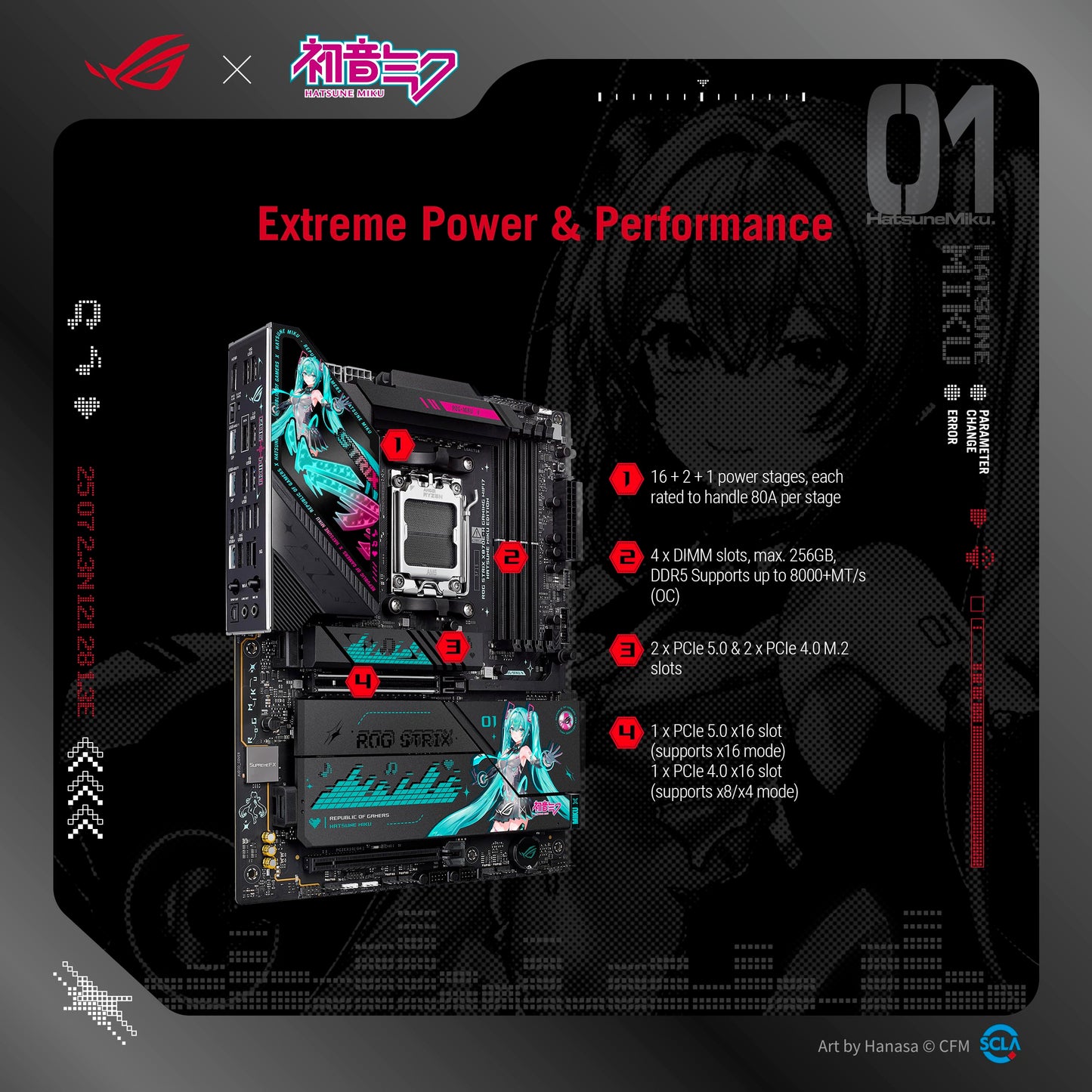

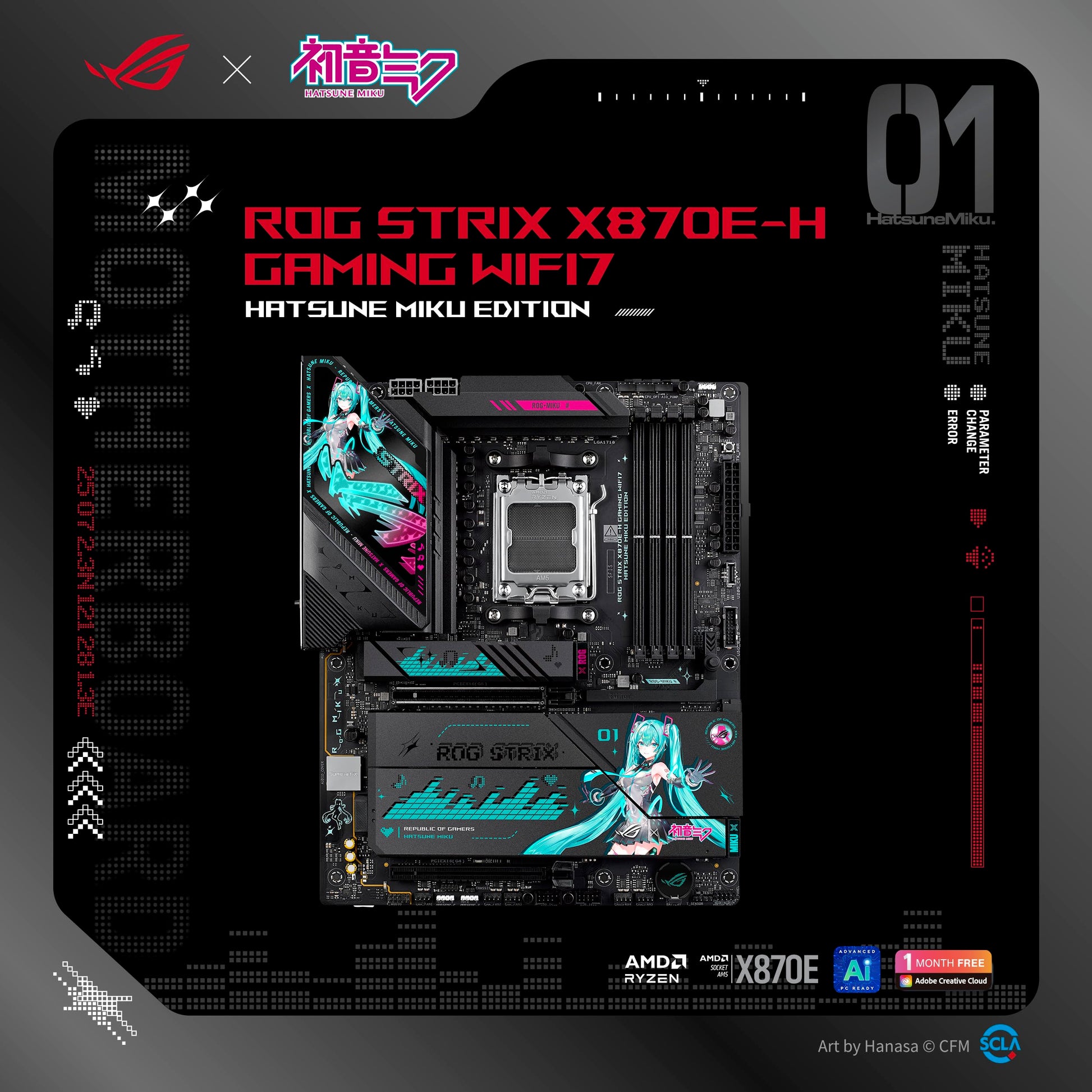

ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION AM5 X870E ATX Gaming Motherboard
ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION AM5 X870E ATX Gaming Motherboard
Couldn't load pickup availability
Build a powerful and unique AMD gaming PC with the ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION. This special-edition ATX motherboard combines the AMD X870E platform, AM5 socket, DDR5 memory, PCIe 5.0, WiFi 7 and 5Gb Ethernet with exclusive Hatsune Miku-themed accessories.
It supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors, up to 256GB DDR5 memory and speeds up to 8000+ MT/s (OC), depending on CPU and memory configuration. Storage includes four M.2 slots and four SATA 6Gb/s ports, while high-speed connectivity includes PCIe 5.0, USB4 40Gbps and 5Gbps Ethernet.

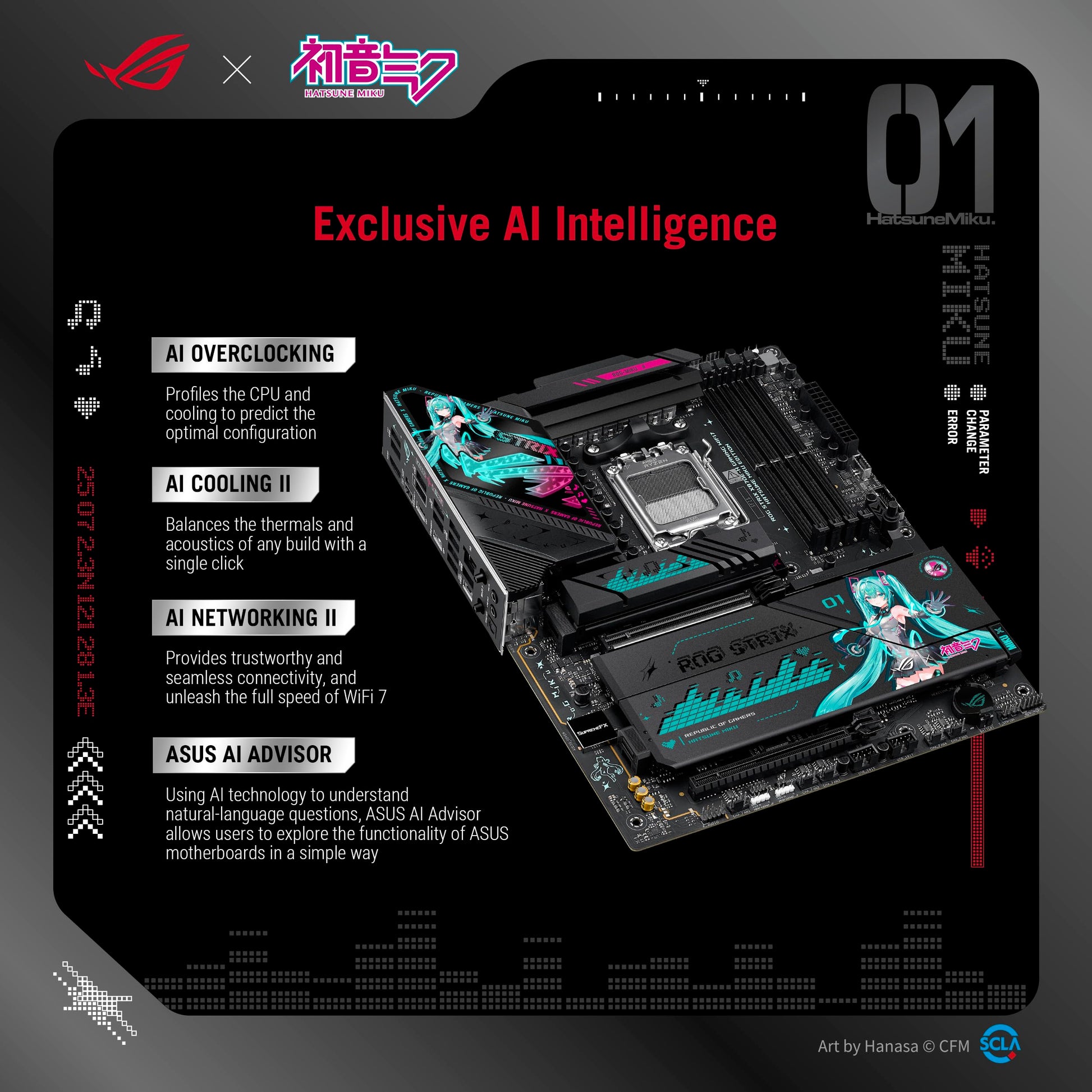

Designed for enthusiasts, the board includes robust VRM cooling, ASUS Q-Design features, BIOS FlashBack, Q-Dashboard, Aura Sync RGB, AI Cooling II and comprehensive fan-control options.
The Hatsune Miku Edition includes exclusive themed accessories, making it ideal for collectors, gaming enthusiasts and custom PC builds.
Key Features
- AMD X870E chipset with AM5 socket
- Supports Ryzen 9000 / 8000 / 7000 Series processors
- ATX form factor
- 4 x DDR5 DIMM slots, up to 256GB
- Up to 8000+ MT/s (OC)
- AMD EXPO and AEMP support
- PCIe 5.0 x16
- 4 x M.2 slots
- 4 x SATA 6Gb/s
- WiFi 7 2x2
- Bluetooth 5.4
- Realtek 5Gb Ethernet
- 2 x USB4 40Gbps Type-C
- USB Type-C up to 30W PD/PPS
- Realtek ALC1220P 7.1-channel audio
- Savitech SV3H712 amplifier
- BIOS FlashBack and Clear CMOS
- ASUS Q-Design
- ASUS AI Cooling II
- Aura Sync RGB
- Exclusive Hatsune Miku Edition accessories
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ASUS ROG |
| Edition | Hatsune Miku Edition |
| Model | ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION |
| Chipset | AMD X870E |
| Socket | AMD AM5 |
| CPU Support | Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4 cm |
| Memory | DDR5 |
| DIMM Slots | 4 |
| Maximum Memory | 256GB |
| Memory Speed | Up to 8000+ MT/s (OC) |
| Memory Features | AMD EXPO, AEMP |
| PCIe | PCIe 5.0 x16 |
| M.2 | 4 slots |
| SATA | 4 × SATA 6Gb/s |
| LAN | Realtek 5Gb Ethernet |
| WiFi | WiFi 7, 2x2 |
| Bluetooth | 5.4 |
| Rear USB | 2 × USB4 40Gbps Type-C, 4 × USB 10Gbps, 6 × USB 5Gbps, 2 × USB 2.0 |
| Front USB | USB 20Gbps Type-C, USB 5Gbps, 2 × USB 2.0 headers |
| Display | HDMI 2.1, 2 × USB4 Type-C display output |
| Audio | Realtek ALC1220P 7.1-channel |
| Audio Amplifier | Savitech SV3H712 |
| S/PDIF | Optical |
| RGB | ASUS Aura Sync / Addressable RGB Gen 2 |
| VESA/OS | Windows 11 support |
Storage
- M.2_1: PCIe 5.0 x4
- M.2_2: PCIe 5.0 x4
- M.2_3: PCIe 4.0 x4
- M.2_4: PCIe 4.0 x4
- 4 × SATA 6Gb/s
- AMD RAIDXpert2 RAID support

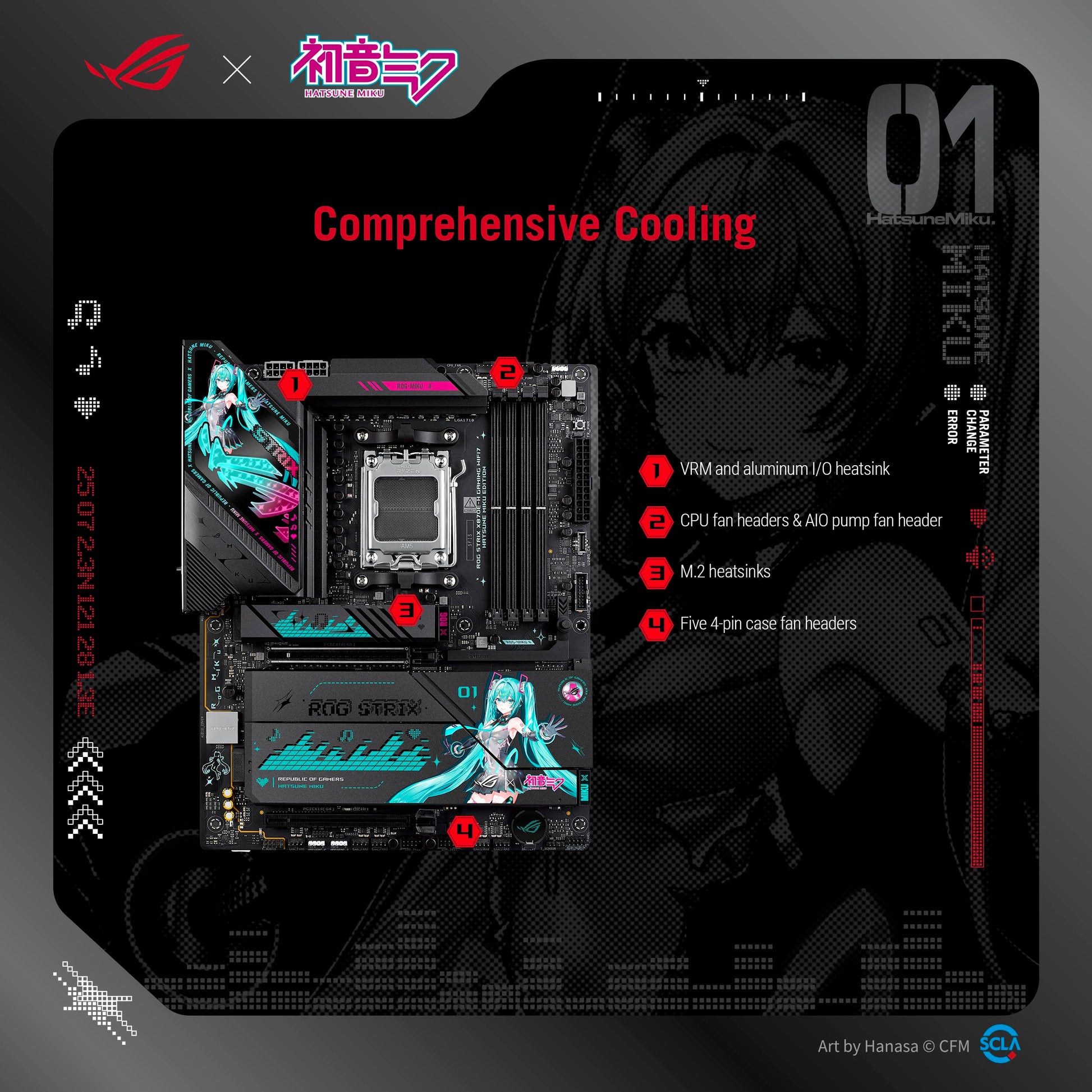

Cooling & Internal Connectivity
- 1 × CPU Fan header
- 1 × CPU OPT Fan header
- 1 × AIO Pump header
- 5 × Chassis Fan headers
- 1 × 24-pin main power
- 2 × 8-pin +12V CPU power
- 3 × Addressable RGB Gen 2 headers
- Thermal Sensor header
- Front Panel Audio header
- M.2 heatsinks
- VRM heatsinks
- ASUS AI Cooling II
Special Features
- BIOS FlashBack
- Clear CMOS
- Q-Dashboard
- Q-DIMM
- Q-LED
- Q-Slot
- M.2 Q-Latch / Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- SafeSlot
- SafeDIMM
- Pre-mounted I/O shield
- Aura Sync
- Armoury Crate
- Aura Creator
- Fan Xpert 4
- ASUS AI Advisor
- ASUS DriverHub
- TurboV Core
- ROG CPU-Z

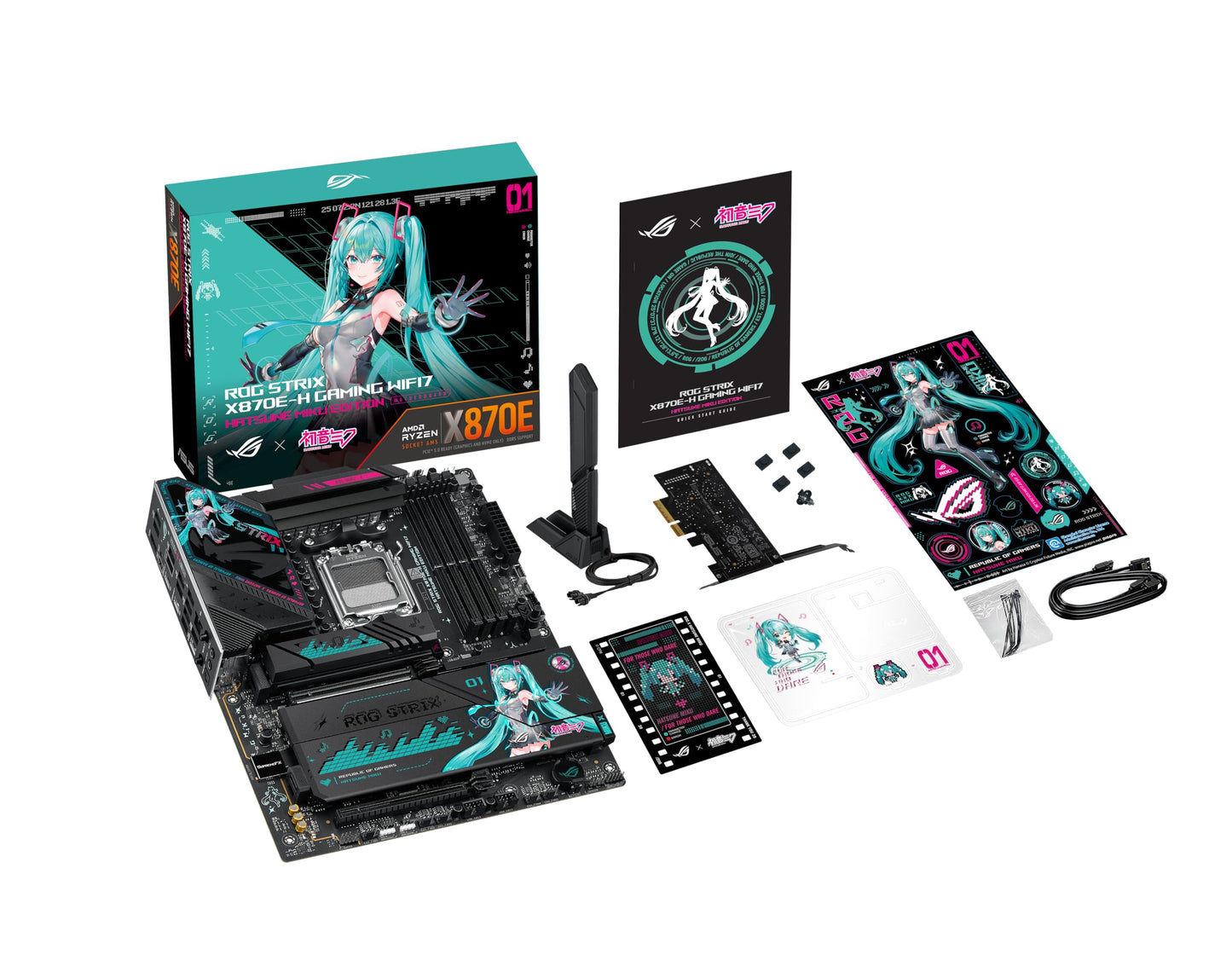

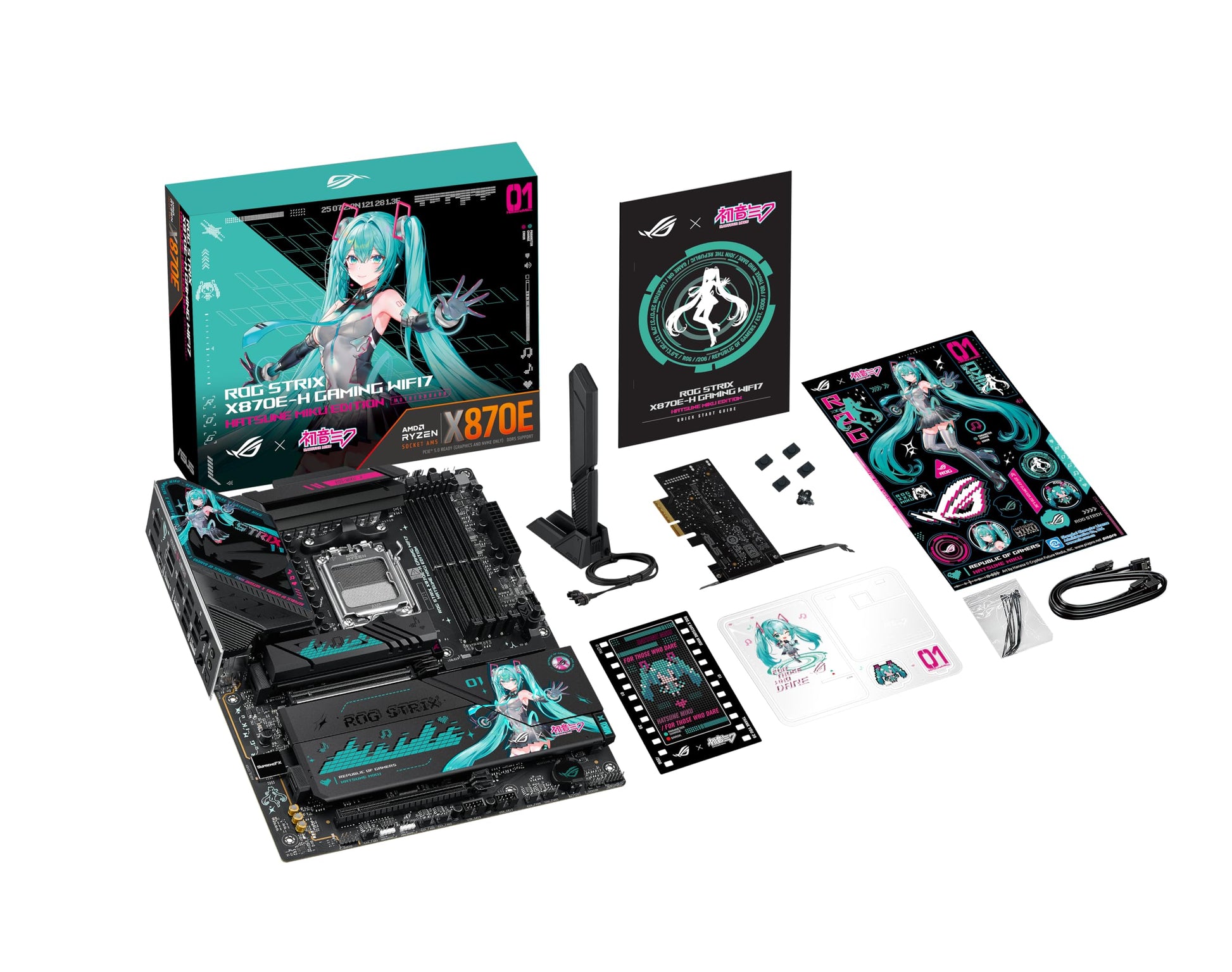

Hatsune Miku Edition Includes
-
- Hatsune Miku Edition Phone Stand
- Hatsune Miku Edition Thank You Card
- Hatsune Miku Edition Sticker
- ASUS WiFi Q-Antenna
- ASUS PCIe to Front USB Card
- Cable Ties
- M.2 Q-Latch Package
- 4 × M.2 Rubbers
- Quick Start Guide
