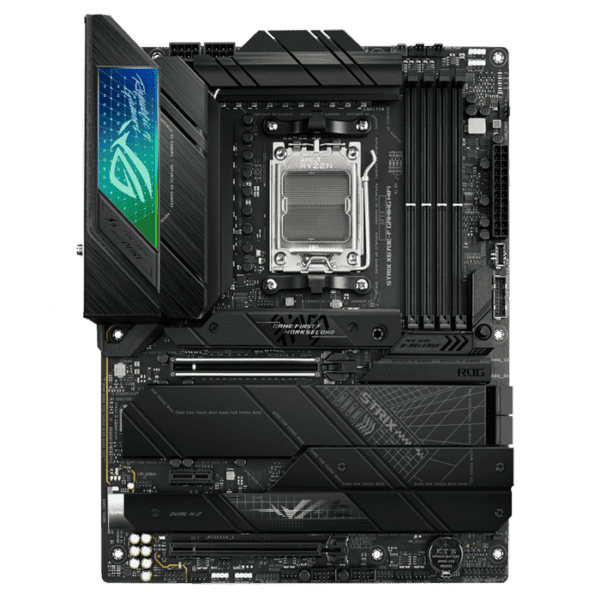

Asus Rog strix X670E-F Gaming WiFi AMD X670 ATX motherboard with 16 + 2 power stages, DDR5 support, one PCIe 5.0® x16 slot with Q-Release, four M.2 slots with heatsinks, PCIe 5.0 NVMe® SSD support
Asus Rog strix X670E-F Gaming WiFi AMD X670 ATX motherboard with 16 + 2 power stages, DDR5 support, one PCIe 5.0® x16 slot with Q-Release, four M.2 slots with heatsinks, PCIe 5.0 NVMe® SSD support
Couldn't load pickup availability
AMD introduces the Socket AM5, tailored explicitly for AMD Ryzen™ 7000 Series Desktop Processors.
Robust Power Solution:
Employs a 16 + 2 teamed power stages with 8+8 pin ProCool II power connectors, high-quality alloy chokes, and durable capacitors, catering to the needs of multi-core processors.
Optimized Thermal Design:
Features substantial VRM heatsinks, an integrated aluminum I/O cover, high-conductivity thermal pads, L-shaped heatpipe, four onboard M.2 heatsinks, and an M.2 backplate specifically dedicated to the M.2_1 slot, ensuring efficient heat dissipation.
Overclocking Technologies:
Equipped with Dynamic OC Switcher, Core Flex, Asynchronous Clock, and PBO Enhancement, providing diverse options for overclocking customization.
High-Performance Networking:
Provides onboard WiFi 6E, Intel® 2.5 Gb Ethernet, and ASUS LANGuard, ensuring stable and high-speed networking solutions.
Fastest Gaming Connectivity:
Incorporates PCIe® 5.0, features two onboard PCIe 5.0 M.2 slots, a USB 3.2 Gen 2x2 front-panel connector, and a Thunderbolt™ header, enhancing gaming connectivity to its fullest potential.
Industry-Leading Audio:
Integrates ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier, in addition to DTS® Sound Unbound and Sonic Studio III, delivering unparalleled audio experiences.
Unmatched Personalization:
Showcases ASUS-exclusive Aura Sync RGB lighting, inclusive of one RGB header and three addressable Gen 2 RGB headers, allowing customizable lighting effects.
DIY-Friendly Design:
Designed for user convenience, offering features such as a pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, BIOS FlashBack™, Clr CMOS Button, FlexKey, SafeSlot, and SafeDIMM.
Intelligent Control:
Utilizes ASUS-exclusive tools such as AI Cooling II, Two-Way AI Noise-Cancelation, and AI Networking for simplified and efficient configuration.
Renowned Software:
Bundles a 60-day free trial of AIDA64 Extreme and an intuitive UEFI BIOS dashboard, providing powerful and user-friendly software tools.
Specification
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
| * Refer to www.asus.com for CPU support list. | |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
| Graphics | 1 x DisplayPort* |
| 1 x HDMI® port** | |
| * Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| **Supports max. 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 x16 slots (supports x16 mode) | |
| AMD X670 Chipset** | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| AMD X670 Chipset | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6E |
| 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band | |
| Bluetooth v5.2 | |
| * WiFi 6E 6GHz regulatory may vary between countries. | |
| USB | Rear USB (Total 12 ports) |
| 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) | |
| 9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®) | |
| 2 x USB 2.0 ports | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| – Impedance sense for front and rear headphone outputs | |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| – Supports up to 32-Bit/384 kHz playback | |
| Audio Features | |
| – Audio Shielding | |
| – Savitech SV3H712 AMP | |
| – Gold-plated audio jacks | |
| – Rear optical S/PDIF out port | |
| – Premium audio capacitors | |
| – Audio cover | |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x Type-C®) |
| 9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 x USB Type-C®) | |
| 2 x USB 2.0 ports | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Wi-Fi Module | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 5 x Gold-plated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V Power connector | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt™ header | |
| Special Features | Extreme Engine Digi+ |
| – 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| – M.2 Q-Latch | |
| – PCIe Slot Q-Release | |
| – Q-DIMM | |
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – M.2 heatsinks | |
| – M.2 heatsink backplate | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – BIOS FlashBack™ button | |
| – BIOS FlashBack™ LED | |
| – Clear CMOS button | |
| – ProCool II | |
| – Pre-mounted I/O shield | |
| – SafeSlot | |
| – SafeDIMM | |
| Aura Sync | |
| – Aura RGB header | |
| – Addressable Gen 2 headers | |
| Software Features | ROG Exclusive Software |
| – GameFirst VI | |
| – ROG CPU-Z | |
| – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| – Sonic Radar III | |
| – DTS® Sound Unbound | |
| – Anti-virus software | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| – AIDA64 Extreme (60 days free trial) | |
| – Aura Creator | |
| – Aura Sync | |
| – Fan Xpert 4 (with AI Cooling II) | |
| – Power Saving | |
| – Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| TPU | |
| DIGI+ VRM | |
| Turbo app | |
| PC Cleaner | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
| Dynamic OC Switcher | |
| FlexKey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Additional Cooling Kit | |
| 1 x Thermal pad for M.2 | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x Cable ties pack | |
| 1 x M.2 Q-Latch package for M.2 backplate | |
| 1 x M.2 Q-Latch package | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 1 x ROG Strix thank you card | |
| 2 x Rubber Packages for M.2 | |
| 1 x Rubber Package for M.2 backplate | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows® 10 64-bit, Windows® 11 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Dimension | |
| Product (mm)_ L*W*H | 305mm*244mm*50mm |
| Color Box (mm)_ L*W*H | 338mm*273mm*68mm |
| Weight | |
| Motherboard only | 1.7 Kg |
| Full package | 2.58 Kg |
| Warranty | 3 Years |
