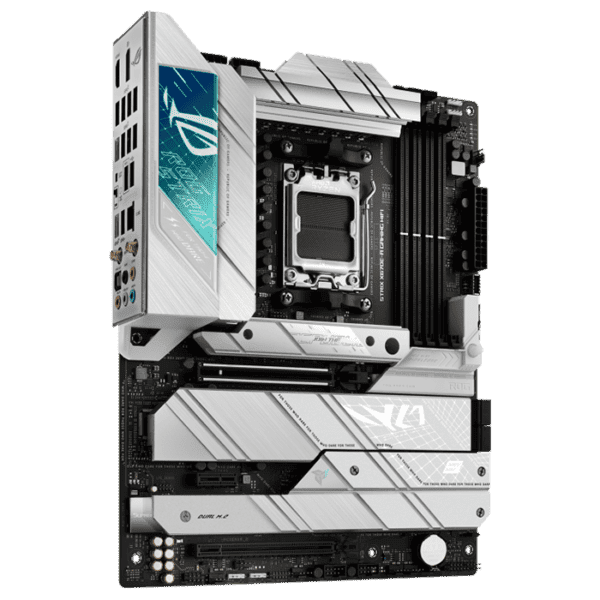

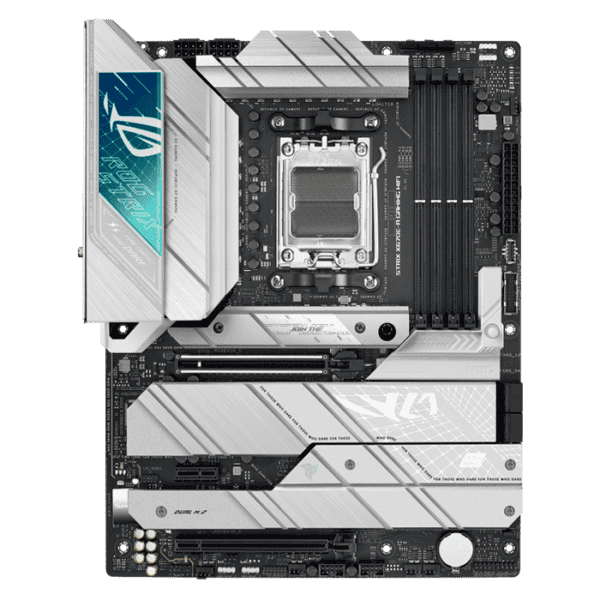

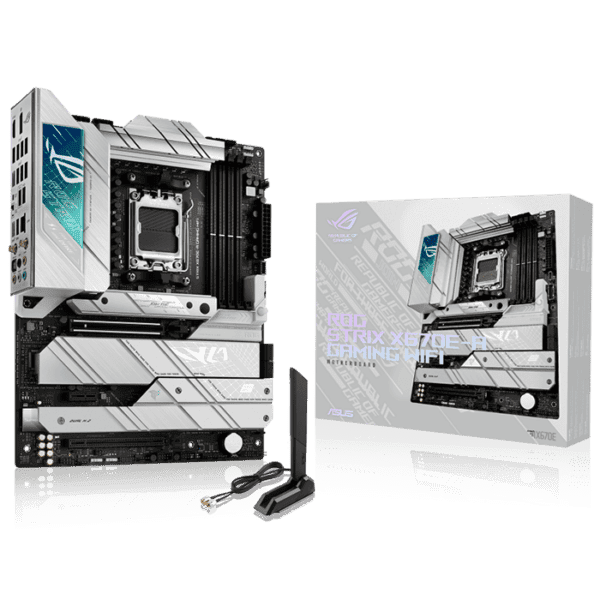

Asus Rog strix X670E-A Gaming WiFi AMD X670 ATX motherboard with 16 + 2 power stages, DDR5 support
Asus Rog strix X670E-A Gaming WiFi AMD X670 ATX motherboard with 16 + 2 power stages, DDR5 support
Couldn't load pickup availability
AMD introduces the Socket AM5 tailored for AMD Ryzen™ 7000 Series Desktop Processors, delivering exceptional performance and reliability.
Robust Power Solution:
Incorporates a robust 16 + 2 teamed power stages with 8+8 pin ProCool II power connectors, along with high-quality alloy chokes and durable capacitors, perfectly designed to support multi-core processors.
Optimized Thermal Design:
Features massive VRM heatsinks, an integrated aluminum I/O cover, a high-conductivity thermal pad, four onboard M.2 heatsinks, and an M.2 backplate dedicated to the M.2_1 slot.
Overclocking Technologies:
Employs Dynamic OC Switcher, Core Flex, and PBO Enhancement to facilitate efficient and dynamic overclocking.
High-Performance Networking:
Equipped with onboard WiFi 6E, Intel® 2.5 Gb Ethernet, and ASUS LANGuard for superior network connectivity.
Fastest Gaming Connectivity:
Supports PCIe® 5.0, features two onboard PCIe 5.0 M.2 slots, a USB 3.2 Gen 2x2 front-panel connector, and a Thunderbolt™ header for enhanced gaming connectivity.
Industry-Leading Audio:
Integrates ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier, DTS® Sound Unbound, and Sonic Studio III, providing superior audio experiences.
Unmatched Personalization:
Offers ASUS-exclusive Aura Sync RGB lighting, comprising one RGB header and three addressable Gen 2 RGB headers for customizable lighting effects.
DIY-Friendly Design:
Designed with user convenience in mind, including features like pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, BIOS FlashBack™, Clr CMOS Button, FlexKey, SafeSlot, and SafeDIMM.
Intelligent Control:
Employs ASUS-exclusive tools such as AI Cooling II, Two-Way AI Noise-Cancelation, and AI Networking, ensuring easy configuration.
Renowned Software:
Bundles a 60-day free trial of AIDA64 Extreme and an intuitive UEFI BIOS dashboard, enhancing the user experience with powerful software tools.
Specification,
| Brand |
ASUS |
|---|---|
| Compaitability |
AMD |
| Series |
ROG |
| CPU Socket Type |
AM5 |
| CPU Type Support |
Ryzen 7000 Series |
| Chipset |
AMD X670 |
| Number of Memory Slots |
4 x DIMM |
| Maximum Memory Supported |
128GB |
| Memory Type Supported |
DDR5 |
| Channel Supported |
Dual Channel |
| Expansion Slots |
1 x PCIe 3.0 x1 slot, 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 1 x PCIe 5.0/4.0/3.0 x16 slot |
| Storage Supported |
4 x M.2 slots, 4 x SATA 6Gb/s ports |
| Ethernet Cable Support |
1 x Intel® 2.5Gb Ethernet, yes |
| Ethernet Lan Chipset |
ASUS LANGuard |
| Wifi Type |
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Wi-Fi 6E |
| Bluetooth Type |
Bluetooth v5.2 |
| USB Ports |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 port (1 x Type-A), 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®), 2 x USB 2.0 headers support additional 4 USB 2.0 ports, 2 x USB 2.0 ports (2 x Type-A), 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) |
| Audio Type Supported |
7.1 Surround Sound High Definition Audio, S/PDIF output |
| Audio Jack |
5 x Audio jacks |
| I/O (Rear) |
1 x BIOS FlashBack™ button , 1 x Clear CMOS button , 1 x DisplayPort, 1 x HDMI® port, 1 x Intel® I225-V 2.5Gb Ethernet port, 1 x Optical S/PDIF out port, 1 x USB 3.2 Gen 1 port (1 x Type-A), 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®), 1 x Wi-Fi Module, 5 x Audio jacks , 8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®) |
| I/O (Internals) |
Fan and Cooling related Power related USB Miscellaneous |
| OS Supported |
Windows 11, Windows 11 64-bit |
| Form Factor |
ATX |
| Warranty |
3 Years |
