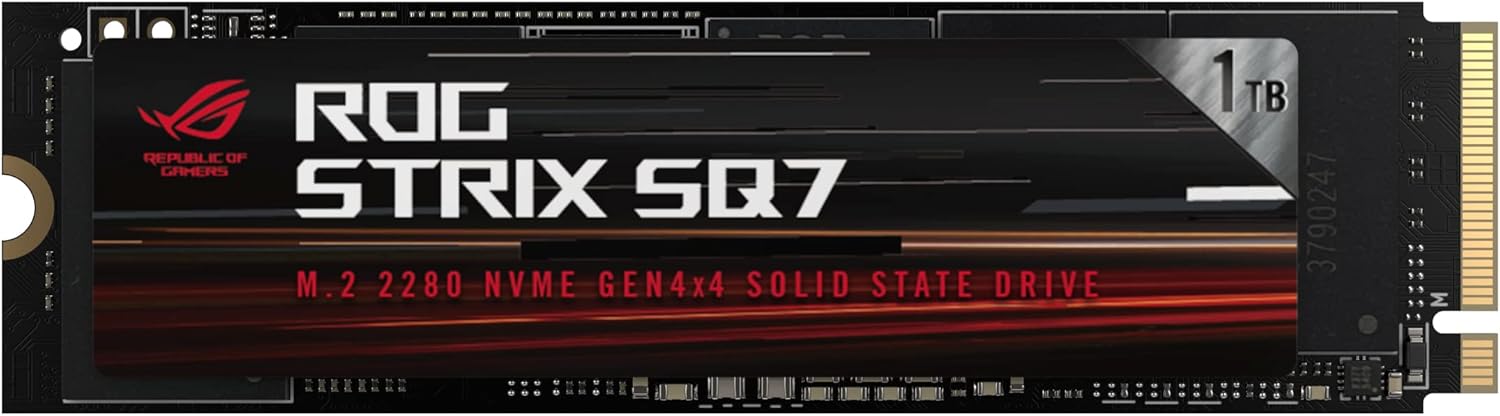

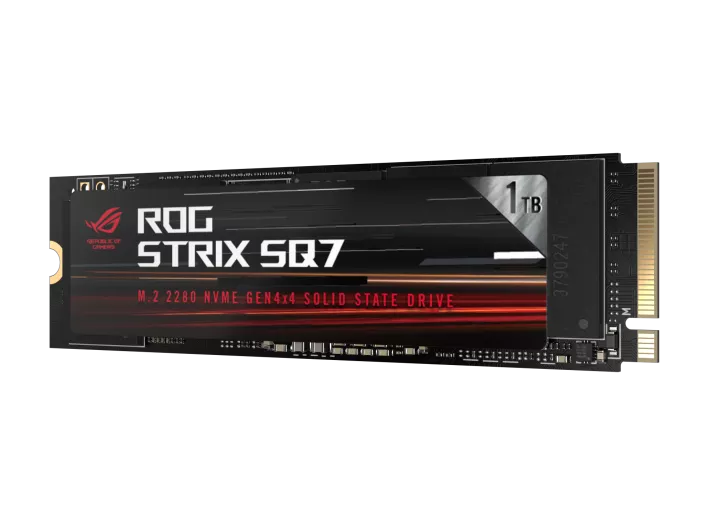

ASUS ROG Strix SQ7 Gen4 1TB PCIe 4.0 NVMe M.2 SSD – Up to 7,200MB/s Gaming SSD (90DD02PZ-M09000)
ASUS ROG Strix SQ7 Gen4 1TB PCIe 4.0 NVMe M.2 SSD – Up to 7,200MB/s Gaming SSD (90DD02PZ-M09000)
Couldn't load pickup availability
The ASUS ROG Strix SQ7 Gen4 1TB SSD is a premium PCIe Gen4 NVMe M.2 SSD built for gamers, enthusiasts, and content creators who demand exceptional speed and reliability. Featuring sequential read speeds up to 7,200MB/s and write speeds up to 6,000MB/s, it dramatically reduces game load times, accelerates file transfers, and improves overall system responsiveness. ASUS equips the SQ7 with support for S.M.A.R.T., TRIM, IEEE 1667, and TCG Opal while maintaining efficient thermal performance in a standard M.2 2280 form factor.
Key Features
- 1TB Storage Capacity
- PCIe Gen4 x4 NVMe 1.4 Interface
- Up to 7,200MB/s Read Speed
- Up to 6,000MB/s Write Speed
- M.2 2280 Form Factor
- High-Speed Gaming SSD
- Supports TRIM & S.M.A.R.T.
- Supports IEEE 1667 & TCG Opal Security

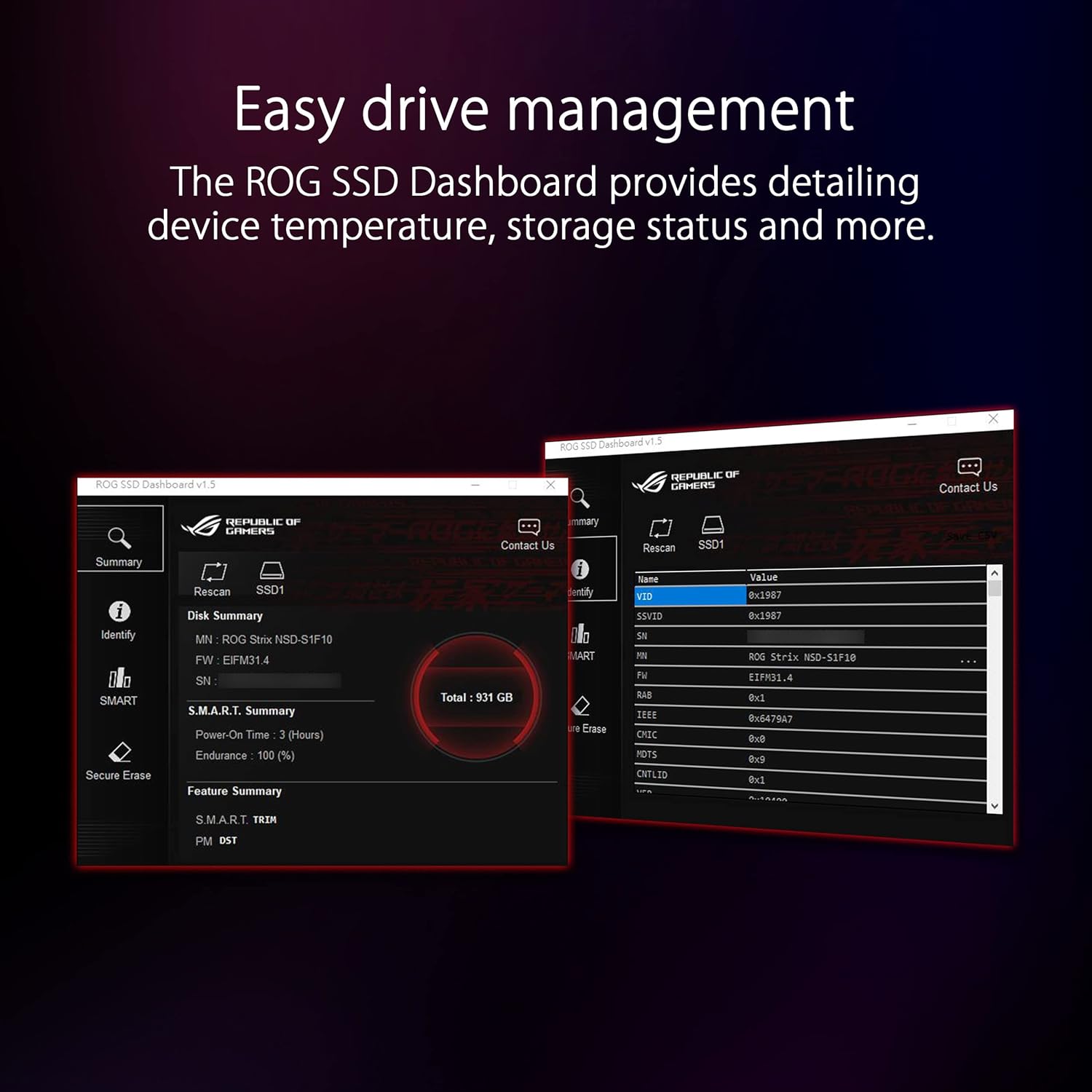

- ASUS SSD Dashboard Support
- Optimized for Gaming & Content Creation
- Low Latency Performance
- 5-Year Limited Warranty
Complete Technical Specifications
| Specification | Details |
|---|---|
| Brand | ASUS |
| Series | ROG Strix SQ7 |
| Model | 90DD02PZ-M09000 |
| Capacity | 1TB |
| Product Type | Internal NVMe SSD |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4 x4 |
| Protocol | NVMe 1.4 |
| NAND Flash | 3D TLC NAND |
| Controller | Phison PS5018-E18 |
| DRAM Cache | DDR4 DRAM Cache |
| Sequential Read Speed | Up to 7,200 MB/s |
| Sequential Write Speed | Up to 6,000 MB/s |
| Random Read IOPS | Up to 750,000 IOPS |
| Random Write IOPS | Up to 1,000,000 IOPS |
| Endurance (TBW) | 700 TBW |
| MTBF | Not Available |
| Operating Temperature | 0°C – 70°C |
| Storage Temperature | -40°C – 85°C |
| Shock Resistance | Not Available |
| Dimensions | 80 × 22 × 2.15 mm |
| Weight | 7.7g |
| Power Consumption | Read: 6.6W (Max), Write: 6.7W (Max) |
| Encryption | IEEE 1667, TCG Opal |
| Heatsink | Not Included |
Read Speed
Up to 7,200 MB/s
Write Speed
Up to 6,000 MB/s
Random Read/Write IOPS
Random Read IOPS: Up to 750,000 IOPS
Random Write IOPS: Up to 1,000,000 IOPS
Interface
PCIe Gen4 x4 NVMe 1.4
Compatibility
Compatible with:
- Desktop PCs with M.2 PCIe NVMe slot
- Gaming PCs
- Workstations
- Laptops supporting M.2 2280 NVMe SSD
Supports:
- PCIe Gen4 (maximum performance)
- PCIe Gen3 (backward compatible)
Not compatible with M.2 SATA slots.
