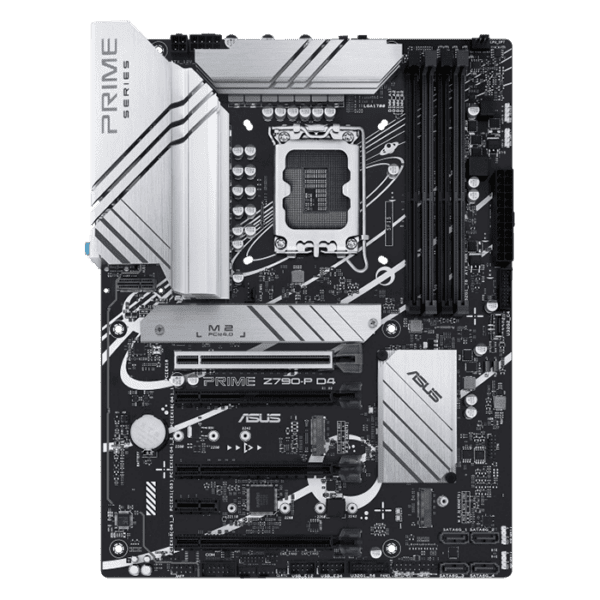

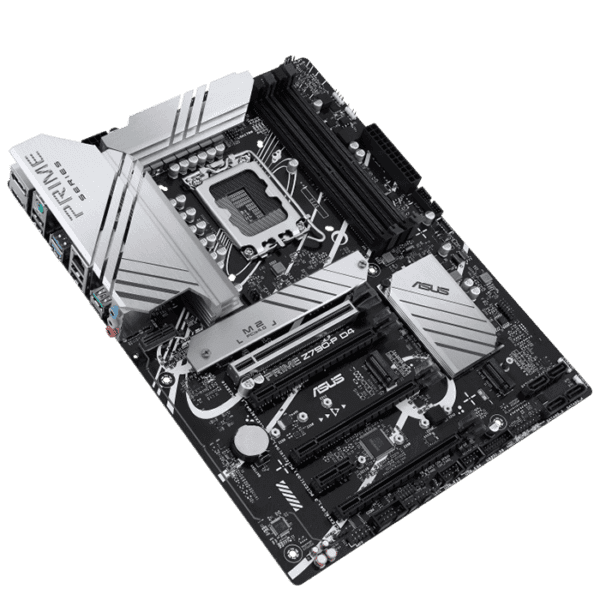

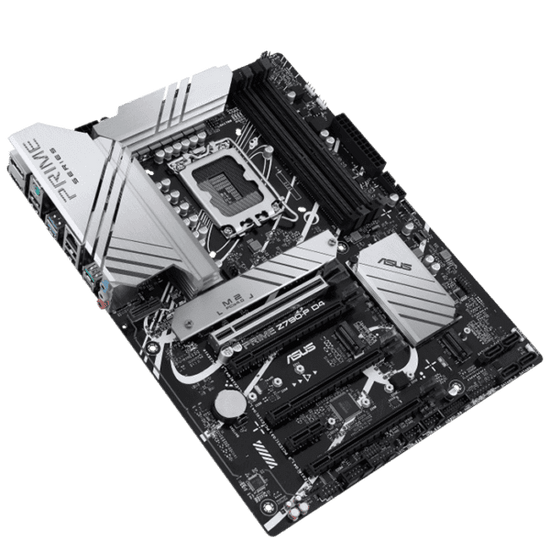

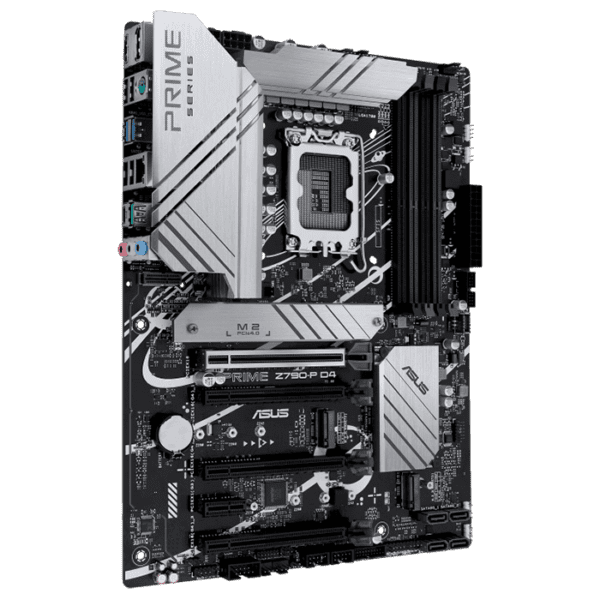

Asus Prime Z790-P D4 ,Intel LGA1700 13th Gen ATX Motherboard
Asus Prime Z790-P D4 ,Intel LGA1700 13th Gen ATX Motherboard
Couldn't load pickup availability
Intel® LGA 1700 socket:
Engineered for compatibility with 12th and 13th Gen Intel® processors.
Enhanced Power Solution:
Incorporates a 14+1 DrMOS setup, a 6-layer PCB, ProCool connectors, alloy chokes, and robust capacitors ensuring a consistent and stable power delivery.
Next-Gen Connectivity:
Supports PCIe® 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) header for rapid connectivity, and accommodates 3 PCIe® 4.0 M.2 for versatile storage options.
ASUS OptiMem II:
Employs careful routing of traces and vias along with ground layer optimizations to maintain signal integrity, enhancing memory overclocking capabilities.
Comprehensive Cooling:
Features substantial VRM heatsinks, a flexible M.2 heatsink, PCH heatsink, hybrid fan headers, and utilizes Fan Xpert 4 with AI Cooling II for efficient temperature management.
ASUS Control Center Express:
Offers real-time IT monitoring and management software to bolster data protection measures for enhanced control and security.
Specification,
| Model | ASUS PRIME Z790-P D4-CSM Motherboard |
| Part Number | 90MB1CV0-M0IAYC |
| CPU Socket | Intel Z790 Chipset |
| CPU Support | Intel 13th Gen, 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Socket LGA 1700 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/ 4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/ 4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| On-Board Graphics support | 1 x DisplayPort 1.4,Supports max 4K@60Hz 1 x HDMI 2.1 port,Supports 4K@60Hz |
| Expansion Slot |
Intel 13th and 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless and Bluetooth | Vertical M.2 slot only |
| Storage |
Total supports 3 M.2 slots and 4 SATA 6Gb/s ports Intel 13th and 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) 4 x SATA 6Gb/s port |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| USB Ports |
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

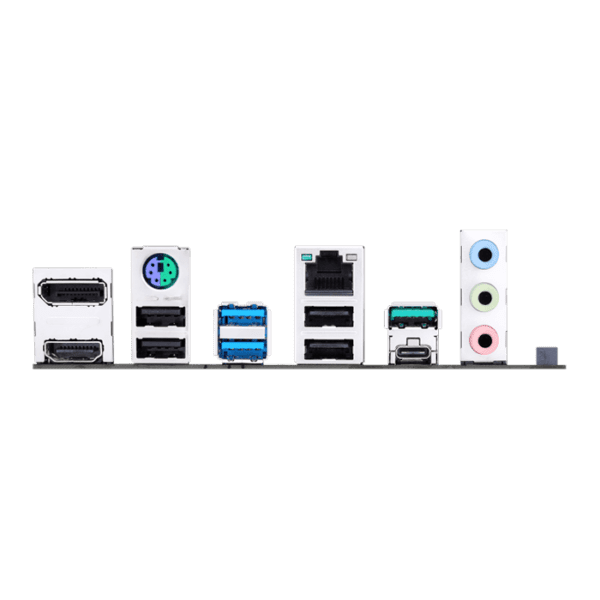

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 ports (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O ports |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt (USB4) header |
| Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Rubber Package for M.2 2 x Screw Packages for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 30.5 cm x 23.4 cm ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
| Country of Origin | China |
