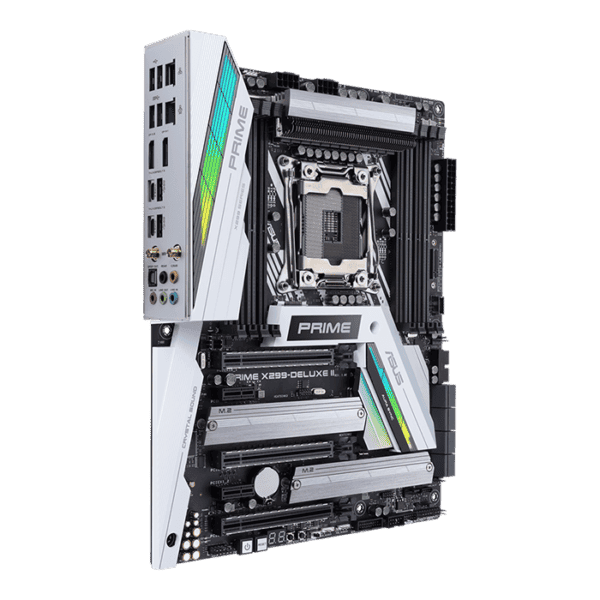

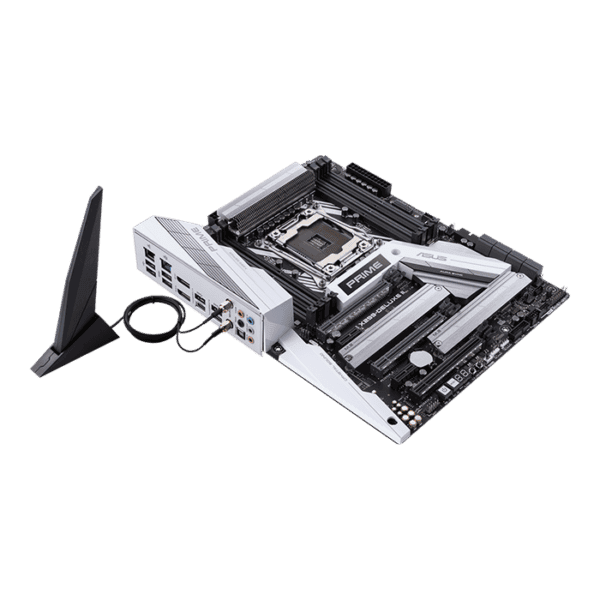

ASUS PRIME X299-DELUXE II Intel LGA 2066 ATX motherboard with enhanced VRM and M.2 heatsink design, DDR4

Enhanced Power Delivery and Dual ProCool Connectors

With the presence of up to 18 cores, four memory channels, and 44 PCIe lanes, the latest Intel® Core™ processors demand a considerably higher amount of power compared to conventional desktop CPUs. The Prime X299-Deluxe II caters to this requirement with precision, incorporating 12 robust power stages meticulously linked to the socket and an additional two for the DRAM. To fortify the motherboard's connection to the PSU, it implements dual eight-pin connectors that channel 12V power directly to the processor. These connectors adhere to our innovative ProCool design, utilizing solid pins capable of handling significantly higher current loads in contrast to traditional connectors equipped with hollow pins.

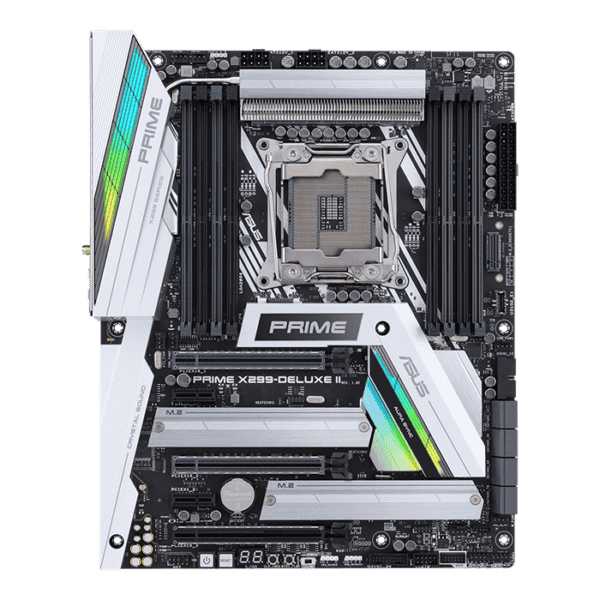

Strategic VRM Architecture

The augmented power needs are harmonized with enhanced heatsinks that strike a delicate balance between mass and surface area, ensuring optimal thermal dissipation. Equipped with an array of VRM heatsinks and a heatpipe strategically positioned to intersect the path of maximum airflow within the chassis, the Prime X299-Deluxe II guarantees superior cooling and unwavering system stability, tailored to accommodate the latest Intel Core X-series processors.

Cooled M.2 Slots

To counteract potential throttling resulting from sustained transfers, two M.2 slots are accompanied by passive heatsinks. Additionally, a third M.2 slot is vertically mounted near the memory slots, capitalizing on the ambient airflow surrounding the CPU socket to enhance cooling for connected drives.

Precision Cooling Architecture

Setting new standards in cooling customization, the Prime X299-Deluxe II provides the most comprehensive cooling controls to date, configurable through either Fan Xpert 4 or the UEFI BIOS:

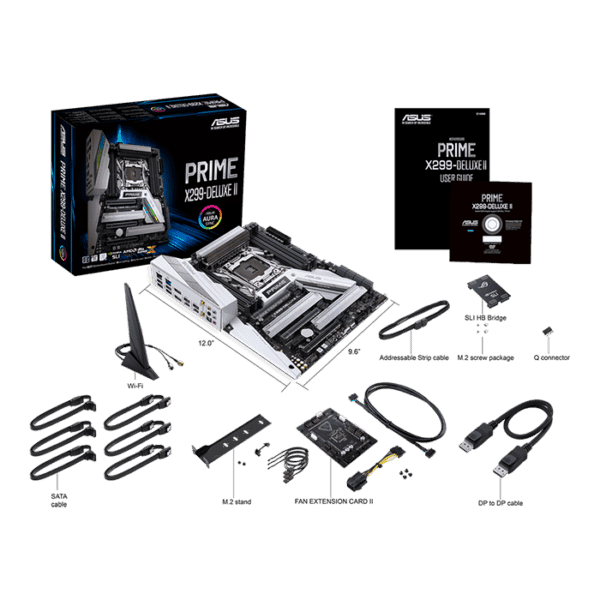

Incorporation of the Fan Extension Card II

The Prime X299-Deluxe II introduces the Fan Extension Card II, which integrates six headers that are controllable via FanXpert 4. This card boasts three temperature-sensor headers that complement the onboard sensor and, notably, includes three thermistors designed for flexible attachment to various components. Apart from extending cooling capabilities, the card is equipped with three headers optimized for RGB LED strips, offering added versatility.

Acclaimed UEFI BIOS Experience

At the outset of any PC-building journey, the UEFI BIOS assumes a pivotal role, and the Prime X299-Deluxe II excels in this domain. Boasting one of the industry's most acclaimed UEFI BIOS interfaces, it streamlines the process of system configuration and optimization.

Specification,
