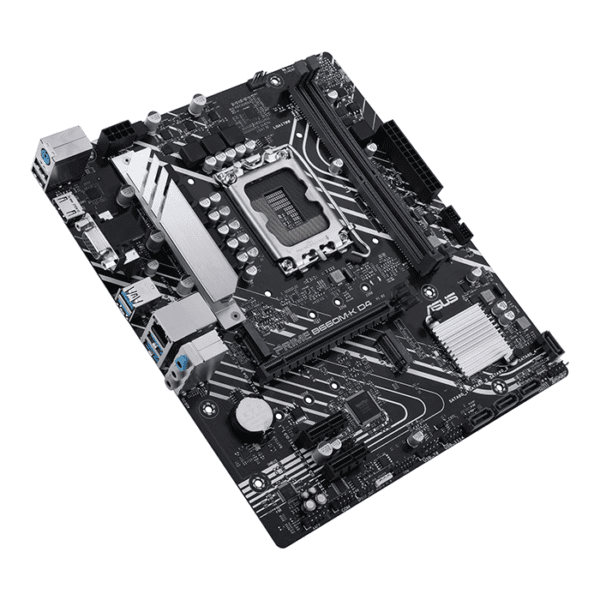

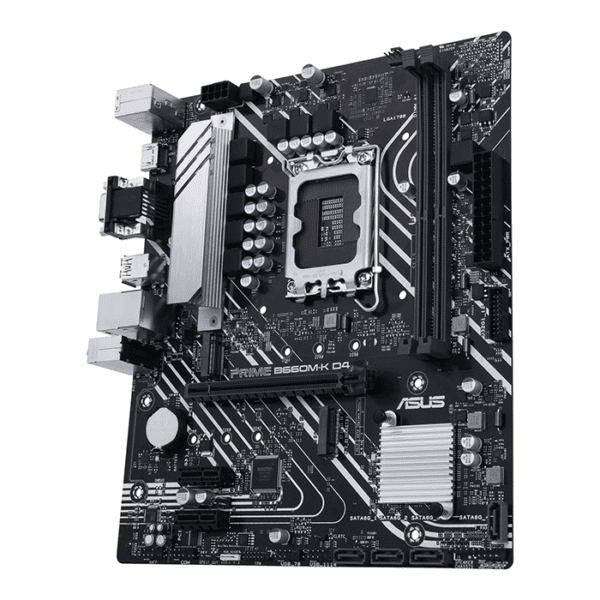

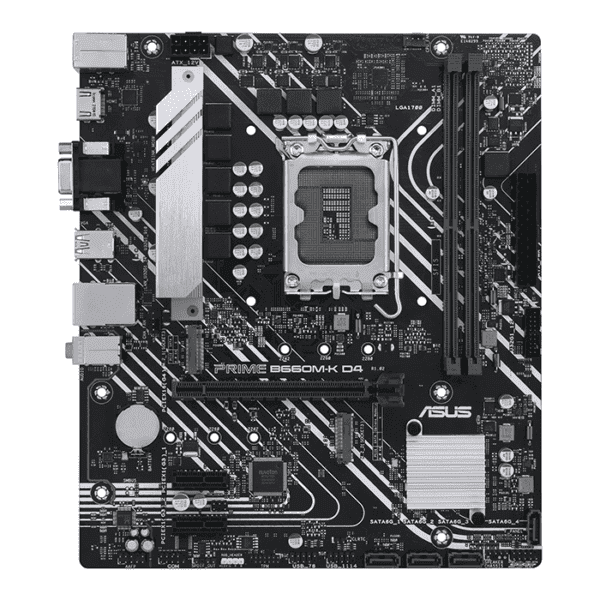

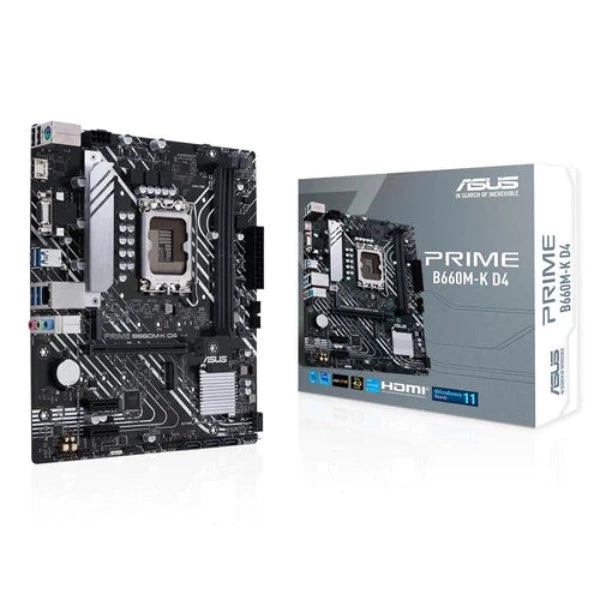

Asus Prime B660M-K D4 Intel® B660 (LGA 1700) mATX motherboard with PCIe® 4.0, two M.2 slots, DDR4, HDMI®, D-Sub, Realtek 1Gb Ethernet, front USB 3.2 Gen 1, ASUS Lighting Control
Asus Prime B660M-K D4 Intel® B660 (LGA 1700) mATX motherboard with PCIe® 4.0, two M.2 slots, DDR4, HDMI®, D-Sub, Realtek 1Gb Ethernet, front USB 3.2 Gen 1, ASUS Lighting Control
Regular price
Dhs. 562.00 AED
Regular price
Dhs. 730.00 AED
Sale price
Dhs. 562.00 AED
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Intel® LGA 1700 Socket:
Designed for 13th & 12th Gen Intel® Processors.
Improved Power Solution:
Includes an 8-pin ProCool connector, alloy chokes, and durable capacitors for consistent and stable power delivery.
Comprehensive Cooling:
Equipped with a VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert for efficient heat management.
Ultrafast Connectivity:
Features PCIe® 4.0, two M.2 slots, and front USB 3.2 Gen 1 for high-speed data access and transfer.
Specification,
| Model | ASUS PRIME B660M-K D4 Micro-ATX Motherboard |
| Part Number | 90MB1950-M0IAY0 |
| CPU Socket | Intel Socket LGA 1700 |
| Chipset | Intel B660 |
| CPU Support | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/ 3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| On-Board Graphics support | 1 x D-Sub Port 1 x HDMI |
| Expansion Slot |
Intel 12th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset: 2 x PCIe 3.0 x1 slots |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| USB | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

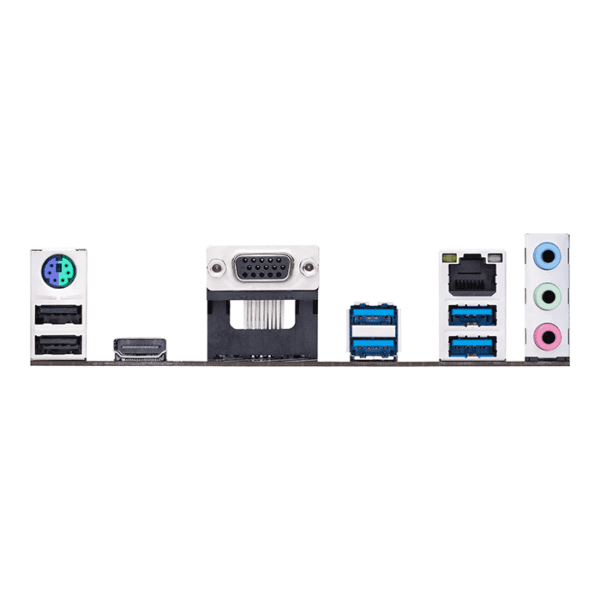

| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Ports |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Accessories |

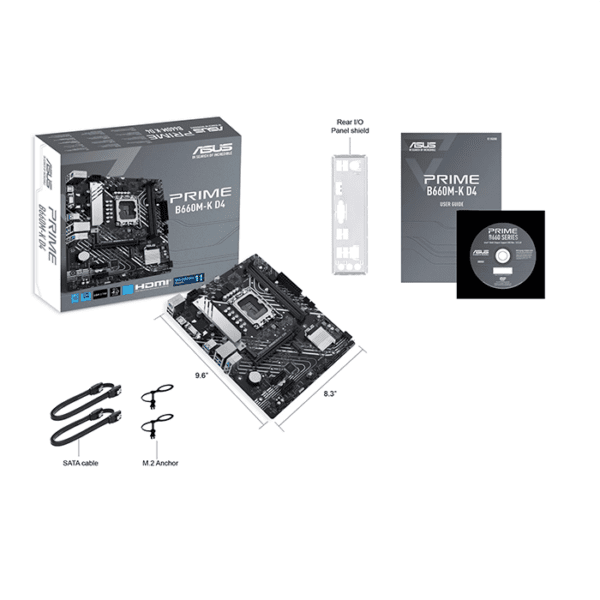

Cables 2x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Installation Media 1 x Support DVD Documentation 1 x User manual |
| Dimensions | 24.4 cm x 21.1 cm Micro-ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
| Country of Origin | China |
