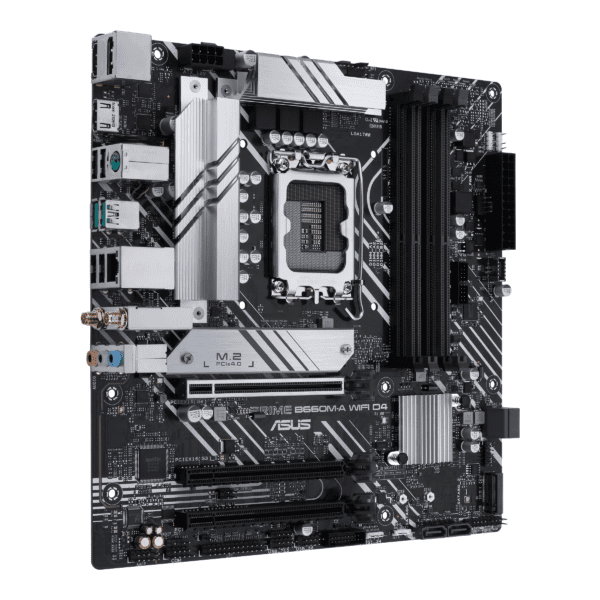

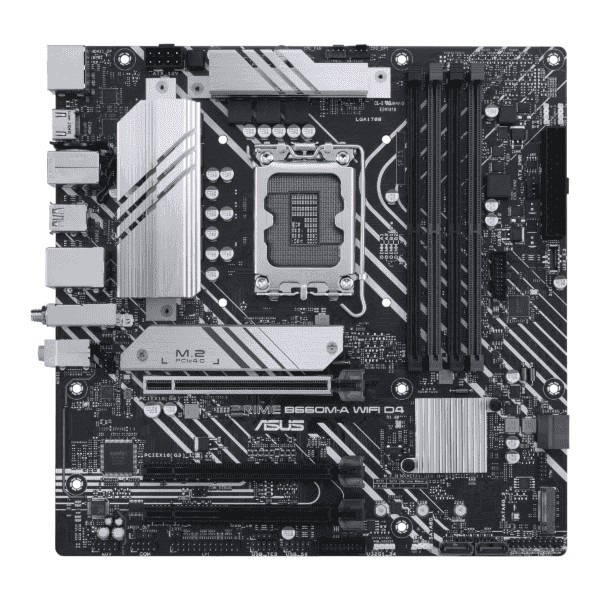

ASUS Prime B660M-A WiFi D4 Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, Intel® Wi-Fi 6 , DP,2 x HDMI® , rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync

ASUS Prime B660M-A WiFi D4 Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, Intel® Wi-Fi 6 , DP,2 x HDMI® , rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync

Dhs. 648.00 AED
Dhs. 890.00 AED Dhs. 648.00 AED
Sale Sold out
Taxes included. Shipping calculated at checkout.

  • Intel® LGA 1700 Socket:

    Compatible with 13th & 12th Gen Intel® Processors.

    Ultrafast Connectivity:

    Includes Intel® Wi-Fi 6, PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 2 Type-A, and front USB 3.2 Gen 1 Type-A and Type-C® for swift data transfer.

    ASUS OptiMem II:

    Ensures careful routing of traces and vias, along with ground layer optimizations to maintain signal integrity, enhancing memory overclocking capabilities.

    Comprehensive Cooling:

    Features a VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ for effective heat dissipation and temperature control.

    Specification,

    Brand ASUS
    Model ProArt B660-CREATOR D4
    Supported CPU
    CPU Socket Type  LGA 1700

    * Dedicated LGA1700 mounting bracket is required.
    CPU Type Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
    *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
    * Refer to www.asus.com for CPU support list.
    Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

    * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipsets
    Chipset  Intel B660
    Onboard Video
    Onboard Video Chipset  Supported only by CPU with integrated graphic
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*

    * Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    Maximum Memory Supported 128GB
    Channel Supported  Dual Channel
    Expansion Slots
    PCI Express 5.0 x16 1 x PCI Express 5.0 x16

    * Actual support may vary by CPU.
    PCI Express 3.0 x16 1 x PCI Express 3.0 x16

    * Supports x4 mode.
    PCI Express x1 1 x PCIe 3.0 x1 slot*

    * PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
    Storage Devices
    SATA 6Gb/s  4 x SATA 6Gb/s
    M.2 Intel 12th Gen Processors:
    M.2_1 slot (Key M), type 2242/2260/2280/22110
    - Intel 12th Gen processors support PCIe 4.0 x4 mode.

    Intel B660 Chipset*:
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)**
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    * Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
    ** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.
    Intel Optane Ready Yes
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset  Realtek 7.1 Surround Sound High Definition Audio CODEC*

    * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Audio Channels  7.1 Channels
    Onboard LAN
    LAN Chipset Realtek 2.5Gb Ethernet
    Second LAN Chipset Intel 1Gb Ethernet
    Max LAN Speed 2.5Gbps + 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x USB Type-C port supports USB 3.2 Gen2 and DisplayPort output
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort (Input only)
    1 x HDMI port
    1 x Realtek 2.5Gb Ethernet port
    1 x Intel 1Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with 60W PD/QC4.0)
    1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Other Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x AURA RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x M.2 slot (Key E)
    1 x SPI TPM header (14-1pin)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thermal Sensor header
    1 x Thunderbolt header
    Physical Spec
    Form Factor ATX
    LED Lighting RGB
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Windows Compatibility
    Windows 11 Ready
    Features
    Features Special Features:
    ASUS 5X PROTECTION III
    - DIGI+ VRM (- Digital power design with DrMOS)
    - Enhanced DRAM Overcurrent Protection
    - ESD Guards
    - LANGuard
    - Overvoltage Protection
    - SafeSlot
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - M.2 Q-Latch
    - Q-Connector
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - Flexible M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - ProCool
    - Pre-mounted I/O shield
    AURA Sync
    - AURA RGB header
    - Addressable Gen 2 headers

    Software Features:
    ASUS Exclusive Software
    Armoury Crate
    - AURA Creator
    - AURA Sync
    - Fan Xpert 4
    - Two-Way AI Noise Cancelation
    AI Suite 3
    - Performance And Power Saving Utility
    EPU
    DIGI+ VRM
    Turbo app
    ASUS CPU-Z
    IT Management software supported
    - ASUS Control Center Express(ACCE)
    ProArt Creator Hub
    CreationFirst
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode

    BIOS:
    128 Mb

    Manageability:
    WOL by PME, PXE

    Operating System:
    Windows 11 64-bit, Windows 10 64-bit
    Packaging

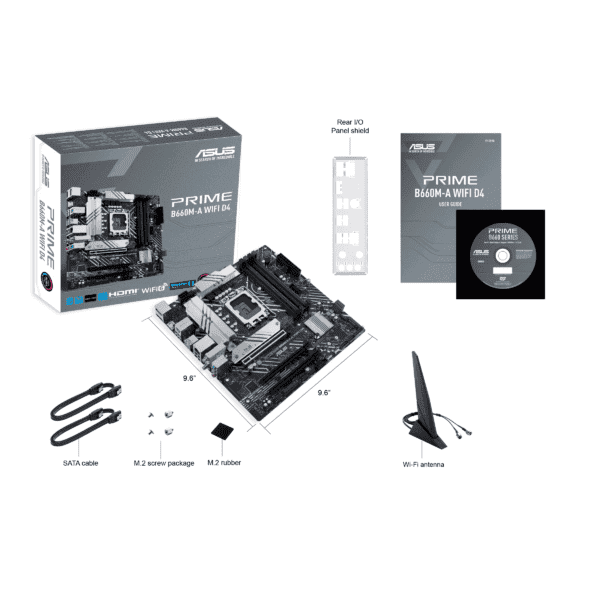

    Package Contents Accessories:
    Cables
    1 x DisplayPort cable
    2 x SATA 6Gb/s cables
    Miscellaneous
    3 x M.2 Rubber Packages
    1 x Q-connector
    Installation Media
    1 x Support DVD
    Documentation
    1 x ACC Express Activation Key Card
    1 x User guide
