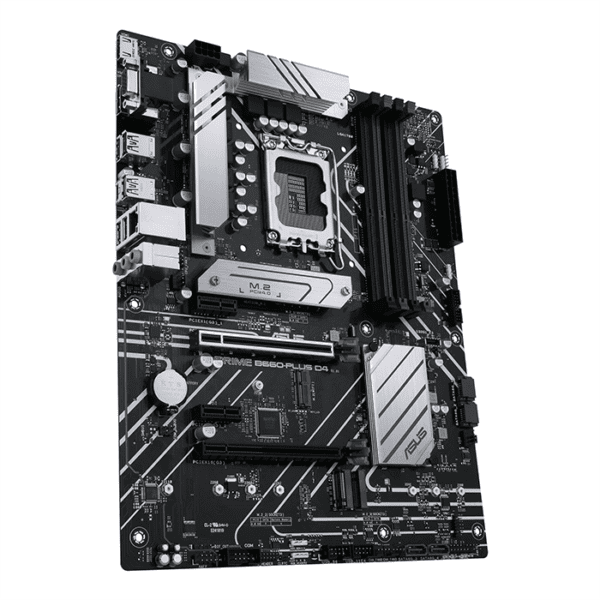

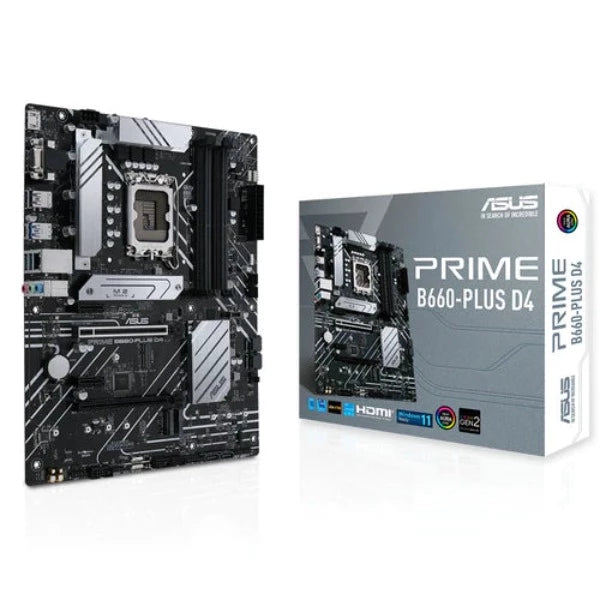

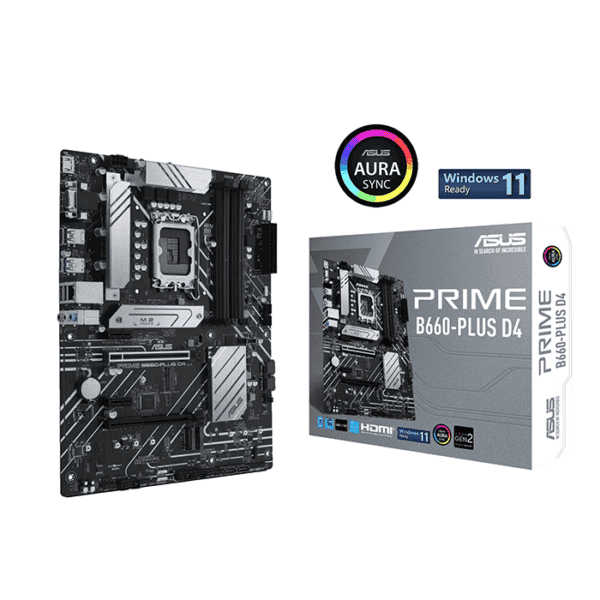

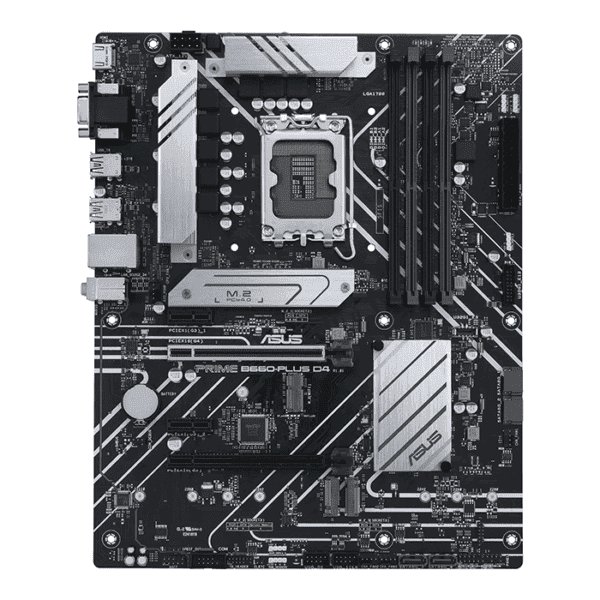

Name: Asus Prime B660-PLUS D4 Intel® B660 (LGA 1700) ATX motherboarIntel® B660 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, D-Sub, Aura Sync
Brand: emarathgamers
Price: 606.00 AED
Availability: InStock

Intel® LGA 1700 Socket: Designed for 12th Gen Intel® processors.

Ultrafast Connectivity:

Features PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Realtek 2.5Gb Ethernet, and Thunderbolt™ 4 support for swift data access and transfer.

Comprehensive Cooling:

Equipped with a VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ for effective heat management.

ASUS OptiMem:

Ensures careful routing of traces and vias to maintain signal integrity, leading to improved memory stability.

Specification,

Model	ASUS PRIME B660-PLUS D4 ATX Motherboard
Part Number	90MB18X0-M0IAY0
CPU Socket	Intel Socket LGA 1700
Chipset	Intel B660
CPU Support	Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory	4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem
On-Board Graphics support	1 x DisplayPort Port 1 x D-Sub port 1 x HDMI Port
Expansion Slot	Intel 12th Gen Processors: 1 x PCIe 4.0 x16 slot Intel B660 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots (supports x1 mode)
Ethernet	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	M.2 slot only (Key E, CNVi & PCIe)
Storage	Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
USB	Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

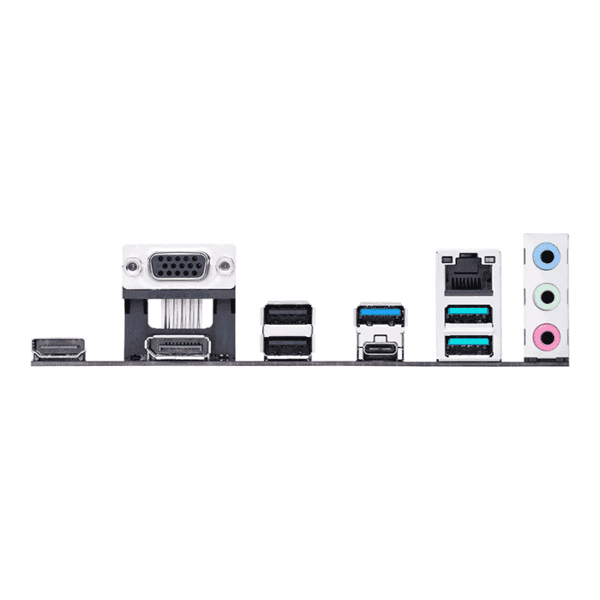

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header

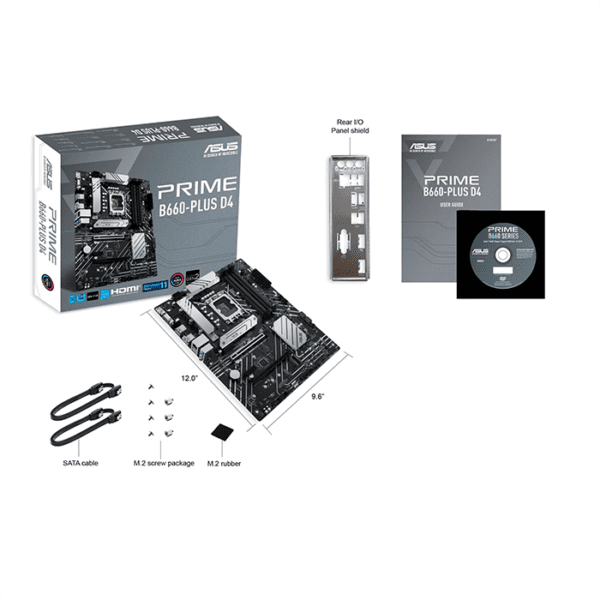

Accessories	Cables 2x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x User manual
Dimensions	30.5cm x 24.4cm ATX Form Factor
Warranty	3 Years of Brand Warranty
Country of Origin	China
