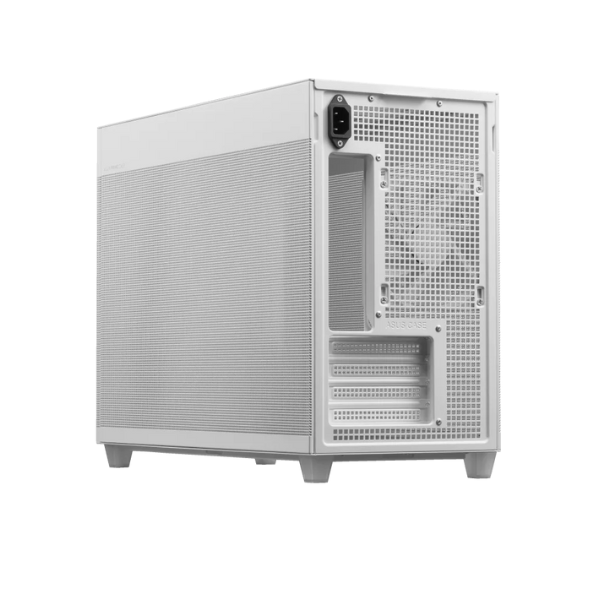

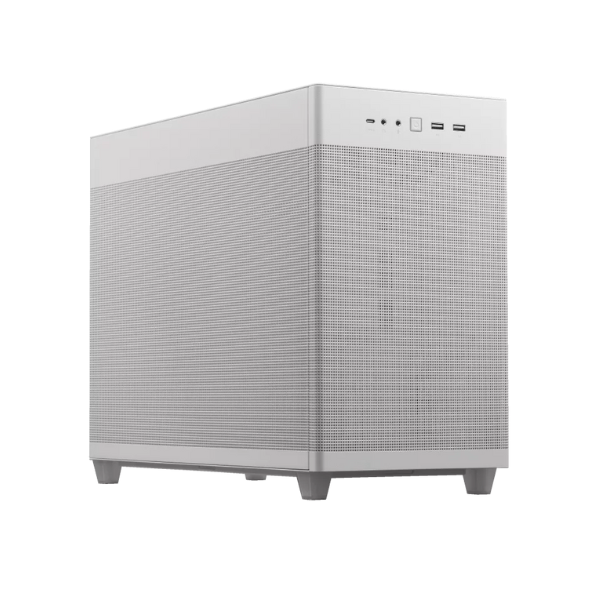

The ASUS Prime AP201 is a stylish 33-liter MicroATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs, White
The ASUS Prime AP201 is a stylish 33-liter MicroATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs, White
Couldn't load pickup availability
Quasi-Filter Mesh Panels: Featuring a mesh design crafted with over 57,000 precision-machined 1.5mm holes, the AP201 enhances airflow while offering an immersive view of your build's components.
Optimized Cooling Capability: The AP201 is well-prepared to tackle the heat generated by high-performance hardware with support for 280mm and 360mm radiators and the ability to accommodate up to six fans.
Efficient Space Utilization: Despite its compact 33L footprint, the AP201 impressively supports ATX PSUs up to 180 mm in length, graphics cards up to 338 mm long, custom liquid cooling solutions, and multiple storage devices.
Tool-Free Side Panels: Enjoy hassle-free access with secure clip mechanisms that make removing chassis side panels easy while preventing accidental dislodging.
Ample Cable Management: The AP201 offers an extended motherboard tray with strategically placed cutouts and a 32 mm gap, allowing you to neatly tuck cables out of sight.
Front Panel USB Type-C® Connectivity: Experience the convenience of a front panel USB 3.2 Gen 2 Type-C port, providing transfer speeds of up to 10 Gbps for swift data access.
Specifications,
| Case Size | Small Tower |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Drive Bays | 1 x 2.5" Bay, 3 x 2.5"/3.5" Combo Bay |
| Expansion Slots | 4 |
| Front I/O Port | 5 |
| Radiator Support (Top) | 120 mm,140 mm,240 mm,280 mm,360 mm |
| Radiator Support (Rear) | 120 mm |
| Cooling Support (Top) | 3 x 120 mm, 2 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm |
| Pre-installed Fans (Front) | None |
| Pre-installed Fans (Rear) | 1 x 120 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum GPU Length | 338 mm |
| Maximum PSU Length | 140-180 mm |
|
Removable Dust Filters
|
Bottom |
| Maximum Cable Management Space | 32 mm |
| Dimensions | 205 x 350 x 460 mm |
| Weight | 5.8 Kg |
