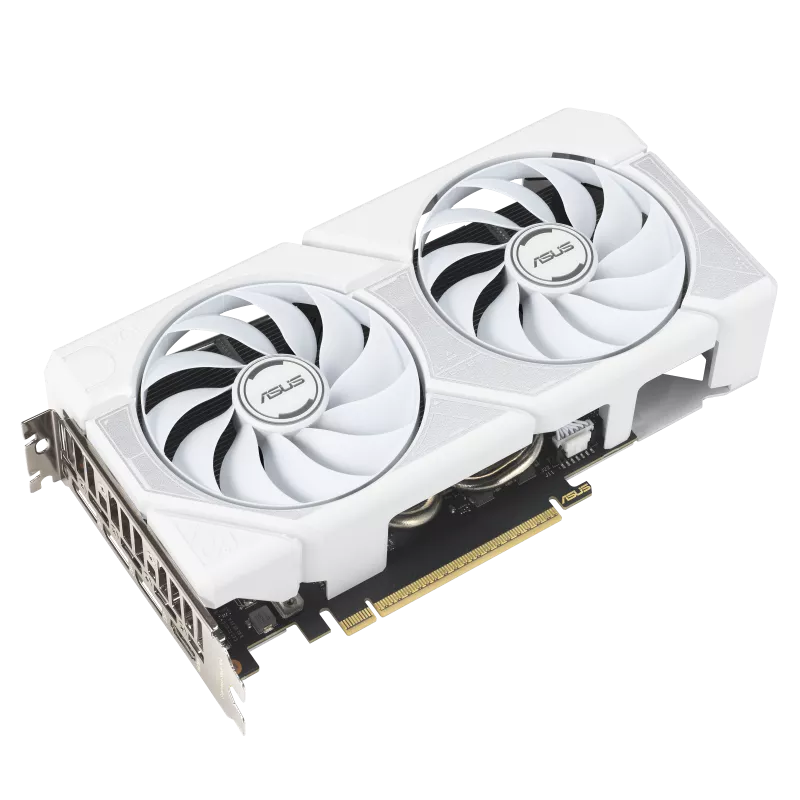

ASUS Dual GeForce RTX 5060 Ti White OC Edition 8GB GDDR7 Graphics Card

The ASUS Dual GeForce RTX 5060 Ti White OC Edition 8GB GDDR7 is a compact graphics card powered by the NVIDIA GeForce RTX 5060 Ti. The exact ASUS manufacturer page identifies the model as DUAL-RTX5060TI-O8G-WHITE, featuring 8GB of GDDR7 memory, a 128-bit memory interface, 28 Gbps memory speed and 4,608 CUDA cores. ASUS specifies an OC-mode clock of 2,632 MHz and a default boost clock of 2,602 MHz.

The card uses a 2.5-slot design measuring 229 × 120 × 50 mm. It provides one HDMI 2.1b output and three DisplayPort 2.1b outputs, supports up to four displays and requires one 8-pin power connector with a recommended 550W PSU.

Key Features

• NVIDIA GeForce RTX 5060 Ti GPU
• 8GB GDDR7 memory
• 128-bit memory interface
• 28 Gbps memory speed
• Up to 2,632 MHz OC-mode clock
• 4,608 CUDA cores
• White ASUS Dual design
• 2.5-slot form factor
• 1 × HDMI 2.1b and 3 × DisplayPort 2.1b
• Supports up to 4 displays
• 550W recommended PSU

Complete Technical Specifications

• Brand: ASUS
• Model: DUAL-RTX5060TI-O8G-WHITE
• Series: ASUS Dual
• GPU/CPU/Product Type: NVIDIA GeForce RTX 5060 Ti
• Architecture: NVIDIA Blackwell
• Memory: 8GB
• Memory Type: GDDR7
• Memory Bus: 128-bit
• Memory Speed: 28 Gbps
• Clock Speed: 2,602 MHz Default Boost Clock
• OC Clock: 2,632 MHz
• Interface: PCI Express 5.0
• Dimensions: 229 × 120 × 50 mm
• Power Consumption: Not Available
• Power Connector: 1 × 8-pin
• Recommended PSU: 550W
• Cooling: Dual Fan
• Operating System: Not Available
• CUDA Cores: 4,608
• AI Performance: 759 TOPs
• Maximum Digital Resolution: 7680 × 4320
• Display Outputs: 1 × HDMI 2.1b, 3 × DisplayPort 2.1b
• Maximum Displays: 4
• HDCP: 2.3
• OpenGL: 4.6
• Slot: 2.5-slot
• NVLink/CrossFire: No
• Accessories: 1 × Speedsetup Manual, 1 × Thank You Card
• Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver and Studio Driver

GPU Architecture

The card uses the NVIDIA GeForce RTX 5060 Ti GPU and provides 4,608 CUDA cores with 759 TOPs of AI performance.

Memory

The card features 8GB of GDDR7 memory operating at 28 Gbps through a 128-bit memory interface.

Clock Speeds

The default boost clock is 2,602 MHz, while OC mode reaches 2,632 MHz.

Cooling System

The ASUS Dual model uses a 2.5-slot design measuring 229 × 120 × 50 mm.

Display Support

The card provides 1 × HDMI 2.1b and 3 × DisplayPort 2.1b outputs. ASUS specifies support for up to four displays and a maximum digital resolution of 7680 × 4320.

Power Requirements

ASUS recommends a 550W power supply and specifies 1 × 8-pin power connector.

Compatibility

• PCI Express 5.0 compatible systems
• 2.5-slot chassis clearance
• 550W recommended system PSU
• One 8-pin PCIe power connector
• HDMI 2.1b compatible displays
• DisplayPort 2.1b compatible displays
• Up to four simultaneous displays
