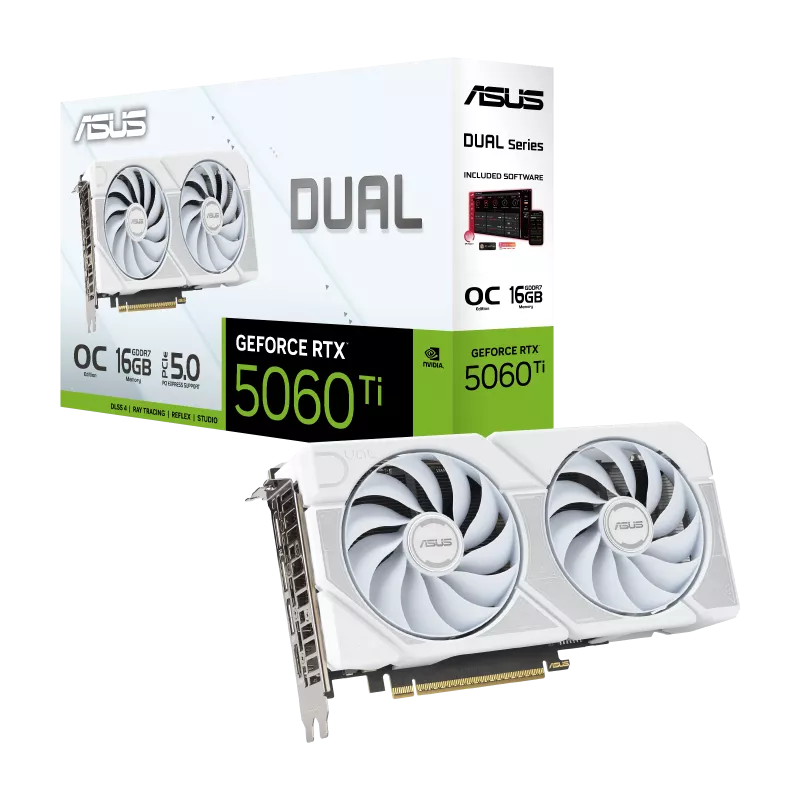

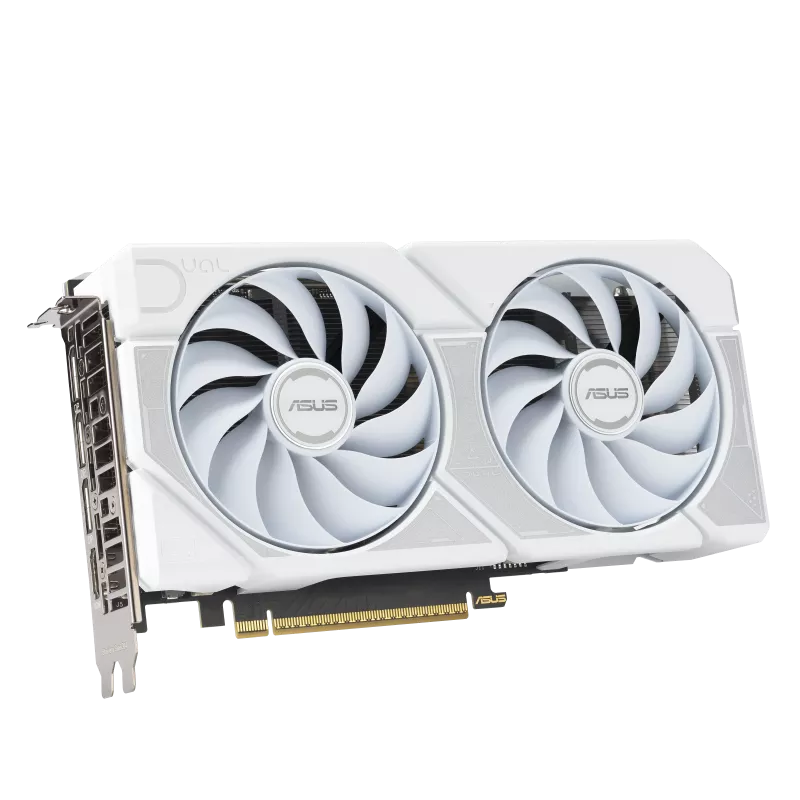

ASUS Dual GeForce RTX 5060 Ti White OC Edition 16GB GDDR7 Graphics Card

The ASUS Dual GeForce RTX 5060 Ti White OC Edition 16GB GDDR7 is a compact graphics card powered by the NVIDIA GeForce RTX 5060 Ti and based on NVIDIA Blackwell architecture. The exact ASUS Middle East product page identifies the model as DUAL-RTX5060TI-O16G-WHITE, with 16GB of GDDR7 memory, a 128-bit memory interface, 28 Gbps memory speed and 4,608 CUDA cores. ASUS specifies a 2,632 MHz OC-mode clock and a 2,602 MHz default boost clock.

The card features ASUS Dual dual-fan cooling, a 2.5-slot design and a white finish. It provides three DisplayPort 2.1b outputs and one HDMI 2.1b output, supports up to four displays and uses one 8-pin power connector with a recommended 550W power supply.

Key Features

• NVIDIA GeForce RTX 5060 Ti GPU with NVIDIA Blackwell architecture
• 16GB GDDR7 memory with 128-bit interface
• 28 Gbps memory speed
• Up to 2,632 MHz OC-mode clock
• 4,608 CUDA cores
• ASUS Dual dual-fan cooling
• White OC Edition design
• Compact 2.5-slot form factor
• 3 × DisplayPort 2.1b and 1 × HDMI 2.1b
• Supports up to 4 displays
• 550W recommended PSU

Complete Technical Specifications

• Brand: ASUS
• Model: DUAL-RTX5060TI-O16G-WHITE
• Series: ASUS Dual
• GPU/CPU/Product Type: NVIDIA GeForce RTX 5060 Ti
• Architecture: NVIDIA Blackwell
• Memory: 16GB
• Memory Type: GDDR7
• Memory Bus: 128-bit
• Memory Speed: 28 Gbps
• Clock Speed: 2,602 MHz Default Boost Clock
• OC Clock: 2,632 MHz
• Interface: PCI Express 5.0
• Dimensions: 229 × 120 × 50 mm
• Power Consumption: Not Available
• Power Connector: 1 × 8-pin
• Recommended PSU: 550W
• Cooling: Dual Fan
• Operating System: Not Available
• CUDA Cores: 4,608
• AI Performance: 759 TOPs
• Maximum Digital Resolution: 7680 × 4320
• Display Outputs: 1 × HDMI 2.1b, 3 × DisplayPort 2.1b
• Maximum Displays: 4
• HDCP: 2.3
• OpenGL: 4.6
• Slot: 2.5-slot
• NVLink/CrossFire: No
• Color: White
• Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver and Studio Driver

GPU Architecture

The graphics card uses the NVIDIA GeForce RTX 5060 Ti GPU and NVIDIA Blackwell architecture. ASUS specifies 4,608 CUDA cores and 759 TOPs AI performance for the exact model.

Memory

The card features 16GB of GDDR7 memory operating at 28 Gbps through a 128-bit memory interface.

Clock Speeds

The default boost clock is 2,602 MHz, while OC mode increases the clock to 2,632 MHz.

Cooling System

The ASUS Dual RTX 5060 Ti White uses a dual-fan cooling system in a 2.5-slot design. The exact dimensions are 229 × 120 × 50 mm. ASUS's product documentation also identifies the design as using Axial-tech fans.

Display Support

The card provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b outputs. It supports up to four displays and a maximum digital resolution of 7680 × 4320.

Power Requirements

ASUS recommends a 550W power supply and specifies 1 × 8-pin power connector.

Compatibility

• PCI Express 5.0 compatible systems
• 2.5-slot chassis clearance
• 550W recommended system PSU
• One 8-pin PCIe power connector
• HDMI 2.1b compatible displays
• DisplayPort 2.1b compatible displays
• Up to four simultaneous displays
