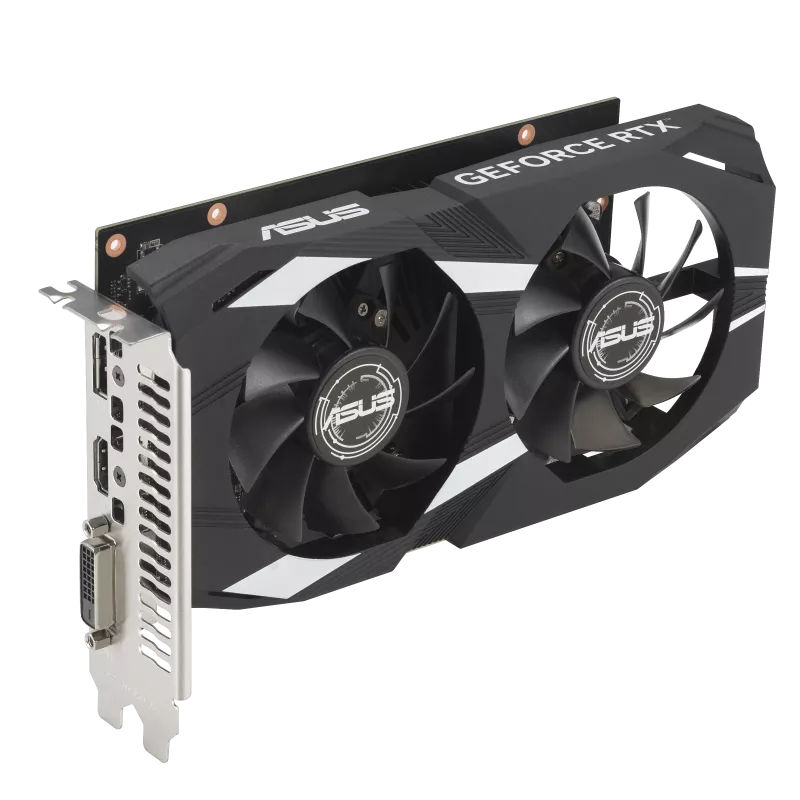

ASUS Dual GeForce RTX 3050 OC Edition 6GB GDDR6 Graphics Card

The ASUS Dual GeForce RTX 3050 OC Edition 6GB GDDR6 is a compact gaming graphics card powered by the NVIDIA GeForce RTX 3050 GPU. The exact ASUS model is DUAL-RTX3050-O6G, featuring 6GB of GDDR6 memory, a 96-bit memory interface, 14 Gbps memory speed and 2,304 CUDA cores. ASUS specifies a 1,537 MHz boost clock in OC mode and 1,507 MHz in default mode.

The card uses a dual-fan cooling design and a 2-slot form factor. It supports PCI Express 4.0, has one HDMI 2.1, one DisplayPort 1.4a and one DVI-D output, and can support up to three displays.

Key Features

• NVIDIA GeForce RTX 3050 GPU with 2,304 CUDA cores
• 6GB GDDR6 memory with 96-bit interface
• 14 Gbps memory speed
• Up to 1,537 MHz OC-mode boost clock
• Dual-fan cooling design
• Compact 2-slot form factor
• HDMI 2.1, DisplayPort 1.4a and DVI-D connectivity
• Recommended 450W power supply
• No external power connector required

Complete Technical Specifications

• Brand: ASUS
• Model: DUAL-RTX3050-O6G
• Series: ASUS Dual
• GPU/CPU/Product Type: NVIDIA GeForce RTX 3050
• Architecture: NVIDIA Ampere
• Memory: 6GB
• Memory Type: GDDR6
• Memory Bus: 96-bit
• Memory Speed: 14 Gbps
• Clock Speed: 1,507 MHz Default Boost Clock
• OC Clock: 1,537 MHz Boost Clock
• Interface: PCI Express 4.0
• Dimensions: 201 × 120 × 37 mm
• Power Consumption: Not Available
• Power Connector: None
• Recommended PSU: 450W
• Cooling: Dual Fan
• Operating System: Windows 10/11 64-bit
• CUDA Cores: 2,304
• Maximum Digital Resolution: 7680 × 4320
• Display Outputs: 1 × DVI-D, 1 × HDMI 2.1, 1 × DisplayPort 1.4a
• Maximum Displays: 3
• HDCP: 2.3
• OpenGL: 4.6
• Slot: 2-slot
• NVLink: No
• CrossFire: No
• ASUS Software: ASUS GPU Tweak III
• Manufacturer Part Number: 90YV0K60-M0NA00

GPU Architecture

The NVIDIA GeForce RTX 3050 is based on NVIDIA's Ampere architecture and provides 2,304 CUDA cores for gaming and GPU-accelerated applications.

Memory

The card features 6GB of GDDR6 memory running at 14 Gbps through a 96-bit memory interface.

Clock Speeds

ASUS specifies a 1,537 MHz boost clock in OC mode and 1,507 MHz boost clock in default mode.

Cooling System

The ASUS Dual design uses two fans in a compact cooling solution. The card occupies two slots and measures 201 × 120 × 37 mm.

Display Support

The exact ASUS specification lists one DVI-D, one HDMI 2.1 and one DisplayPort 1.4a output, with support for up to three displays and a maximum digital resolution of 7680 × 4320.

Power Requirements

ASUS recommends a 450W power supply and specifies that the graphics card requires no external power connector.

Compatibility

• PCI Express 4.0 compatible
• 2-slot chassis clearance
• 450W recommended system PSU
• No external GPU power connector required
• Windows 10/11 64-bit
• Up to three simultaneous displays
• HDMI 2.1, DisplayPort 1.4a and DVI-D display connectivity
