ASRock AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC GDDR6 Graphics Card

The ASRock AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC is a compact gaming graphics card powered by the AMD Radeon RX 6500 XT GPU and AMD RDNA 2 architecture. It features 4GB of GDDR6 memory, a 64-bit memory interface and a PCI Express 4.0 x4 bus interface.

The Phantom Gaming D 4GB OC features a dual-fan cooling system, Striped Axial Fans, a stylish metal backplate and 0dB Silent Cooling technology. Its factory-overclocked GPU reaches up to 2820 MHz Boost Clock, with a Game Clock of up to 2650 MHz and a Base Clock of 2365 MHz.

Display connectivity consists of one HDMI 2.1 port and one DisplayPort 1.4a port with HBR3 and DSC. The card requires one 8-pin power connector, and ASRock recommends a 400W power supply.

Key Features

• AMD Radeon RX 6500 XT GPU
• AMD RDNA 2 architecture
• 4GB GDDR6 memory
• 64-bit memory interface
• Up to 2820 MHz Boost Clock
• Up to 2650 MHz Game Clock
• 1024 Stream Processors
• PCI Express 4.0 x4
• Dual-fan Phantom Gaming cooling
• 0dB Silent Cooling
• Stylish metal backplate
• HDMI 2.1 and DisplayPort 1.4a
• Hardware ray tracing and DirectX 12 Ultimate support

Complete Technical Specifications

• Brand: ASRock
• Model: AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC
• Product Code: RX6500XT PGD 4GO
• Series: Phantom Gaming
• GPU/CPU/Product Type: AMD Radeon RX 6500 XT Graphics Card
• Architecture: AMD RDNA 2
• GPU Process: 6nm
• Stream Processors: 1024
• Memory: 4GB
• Memory Type: GDDR6
• Memory Bus: 64-bit
• Memory Speed: 18 Gbps
• Boost Clock: Up to 2820 MHz
• Game Clock: Up to 2650 MHz
• Base Clock: 2365 MHz
• Interface: PCI Express 4.0 x4
• DirectX: 12 Ultimate
• OpenGL: 4.6
• DisplayPort: 1 x DisplayPort 1.4a HBR3 / DSC
• HDMI: 1 x HDMI 2.1
• HDCP: Yes
• Maximum Digital Resolution: 7680 × 4320
• Multi-view: 2
• Power Connector: 1 x 8-pin
• Recommended PSU: 400W
• Cooling: Dual Fan
• Fan Design: Striped Axial Fan
• Silent Cooling: 0dB Silent Cooling
• Backplate: Metal Backplate
• Power Consumption: Not Available
• Dimensions: 240 × 129 × 42 mm
• Net Weight: 459 g
• SKU/P/N: Not Available
• Barcode/EAN: Not Available

GPU Architecture

The graphics card uses the AMD Radeon RX 6500 XT GPU based on AMD RDNA 2 architecture and a 6nm process. It provides 1024 Stream Processors and hardware ray tracing support.

Memory

The card includes 4GB of GDDR6 memory with a 64-bit memory interface. ASRock specifies a memory speed of 18 Gbps.

Clock Speeds

The factory-overclocked card has a Boost Clock of up to 2820 MHz, Game Clock of up to 2650 MHz and Base Clock of 2365 MHz.

Cooling

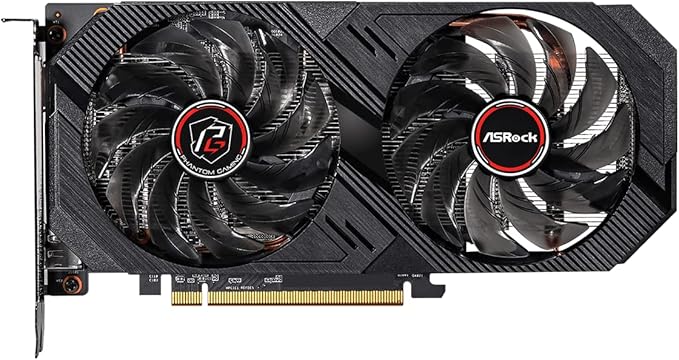

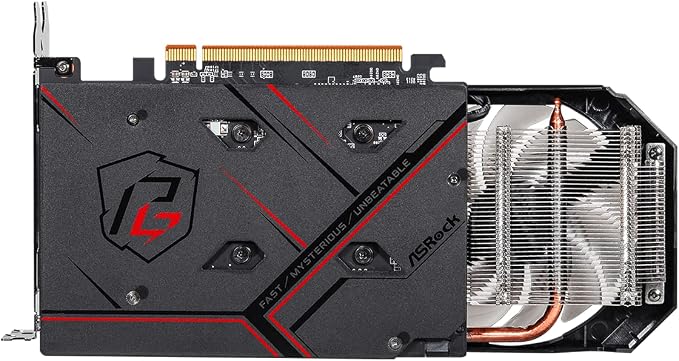

The Phantom Gaming D design uses two fans with ASRock's Striped Axial Fan design. The card also features 0dB Silent Cooling, allowing the fans to stop at low temperatures for quieter operation. A metal backplate and premium thermal components are also incorporated into the cooling design.

Display Connectivity

The card provides one HDMI 2.1 output and one DisplayPort 1.4a HBR3 / DSC output. ASRock specifies a maximum digital resolution of 7680 × 4320 and multi-view support for up to two displays.

Power Requirements

The graphics card uses one 8-pin power connector. ASRock recommends a minimum 400W power supply for the system.

Compatibility

• Desktop PCs with a compatible PCI Express slot
• PCI Express 4.0 x4 systems
• DirectX 12 Ultimate applications
• OpenGL 4.6 applications
• HDMI-compatible displays
• DisplayPort-compatible displays
• Power supplies meeting the 400W recommended requirement

Package Includes

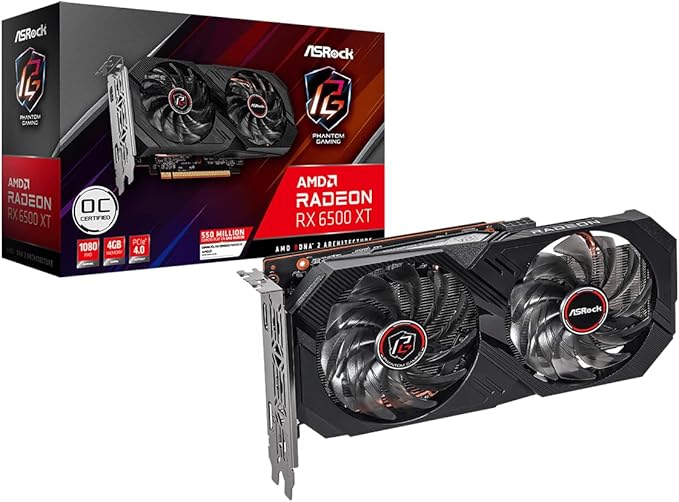

• ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC graphics card
• Quick Installation Guide
