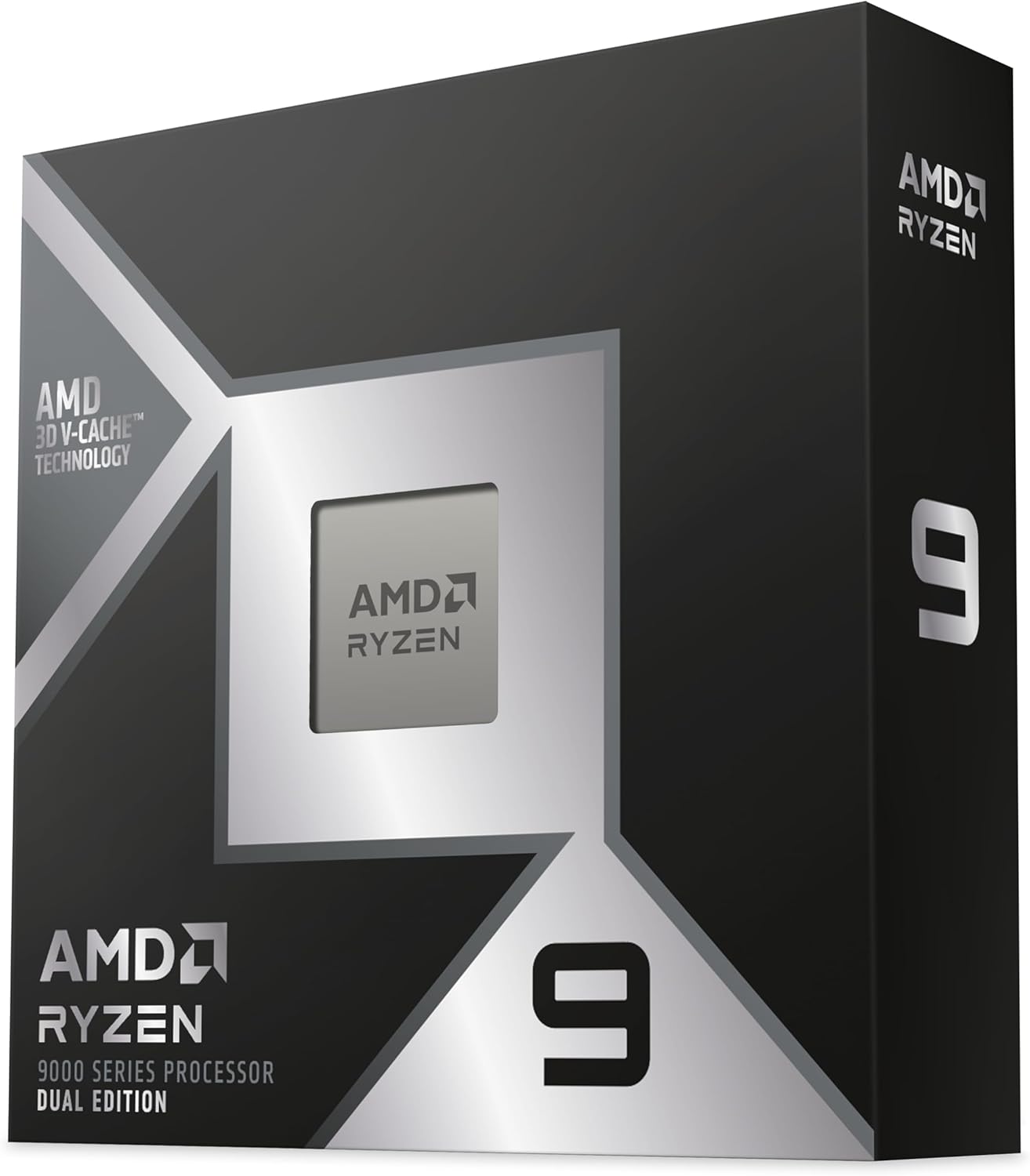

AMD Ryzen 9 9950X3D2 G2 Dual Edition Desktop Processor – 16‑Core Zen 5, AM5, Up to 5.6GHz, 192MB 3D V‑Cache, PCIe 5.0, DDR5, Unlocked

The AMD Ryzen 9 9950X3D2 Dual Edition is the world’s first desktop processor with dual AMD 3D V‑Cache technology, combining 16 Zen 5 cores and a massive 192MB of L3 cache to deliver exceptional performance for high‑end gaming, software development and content creation on the AM5 platform.

Key Specifications

• Model: AMD Ryzen 9 9950X3D2 Dual Edition Desktop Processor (WOF – without fan)
• Architecture: Zen 5 (Granite Ridge), TSMC 4nm CPU cores + 6nm I/O die
• Cores / Threads: 16 cores / 32 threads with SMT
• Base Clock: 4.3 GHz
• Max Boost Clock: up to 5.6 GHz
• Cache: 1280KB L1, 16MB L2, 192MB L3 with dual 3D V‑Cache (208MB total cache pool including L2)
• Default TDP: 200W
• Max Operating Temperature (Tjmax): 95°C
• Socket: AM5
• Unlocked: Yes – supports Precision Boost 2, Precision Boost Overdrive, Curve Optimizer and AMD EXPO memory tuning
• Integrated Graphics: AMD Radeon Graphics, 2 cores up to 2200 MHz, with USB Type‑C DisplayPort Alternate Mode support

Platform, Memory & I/O

• Supporting chipsets: A620, B650, B650E, X670, X670E, B840, B850, X870, X870E
• System memory: DDR5 UDIMM, dual‑channel, up to 256GB
• Max memory speeds: 2×1R DDR5‑5600, 2×2R DDR5‑5600, 4×1R DDR5‑3600, 4×2R DDR5‑3600
• PCIe support: PCIe 5.0 (28 total / 24 usable CPU lanes) for GPUs and NVMe SSDs
• Storage: NVMe RAID support (RAID 0/1/5/10) on PCIe drives
• USB: native USB 3.2 Gen 2 (10Gbps) and USB 2.0 connectivity

Gaming & Creator Features

• Dual 3D V‑Cache CCDs for improved gaming performance, smoother 1% lows and heavy simulation workloads
• Ideal for AAA gaming with high‑end GPUs, complex software builds, 3D rendering and video production
• Comprehensive security and virtualization support including AMD‑V, AMD‑Vi, Secure Boot, firmware TPM and virtualization‑based security features

Cooling & Emarat Gamers

• WOF (without fan) – no cooler included; a high‑end liquid cooler is recommended for optimal performance
• Genuine AMD processor supplied by Emarat Gamers, perfect for flagship gaming rigs and professional creator workstations
