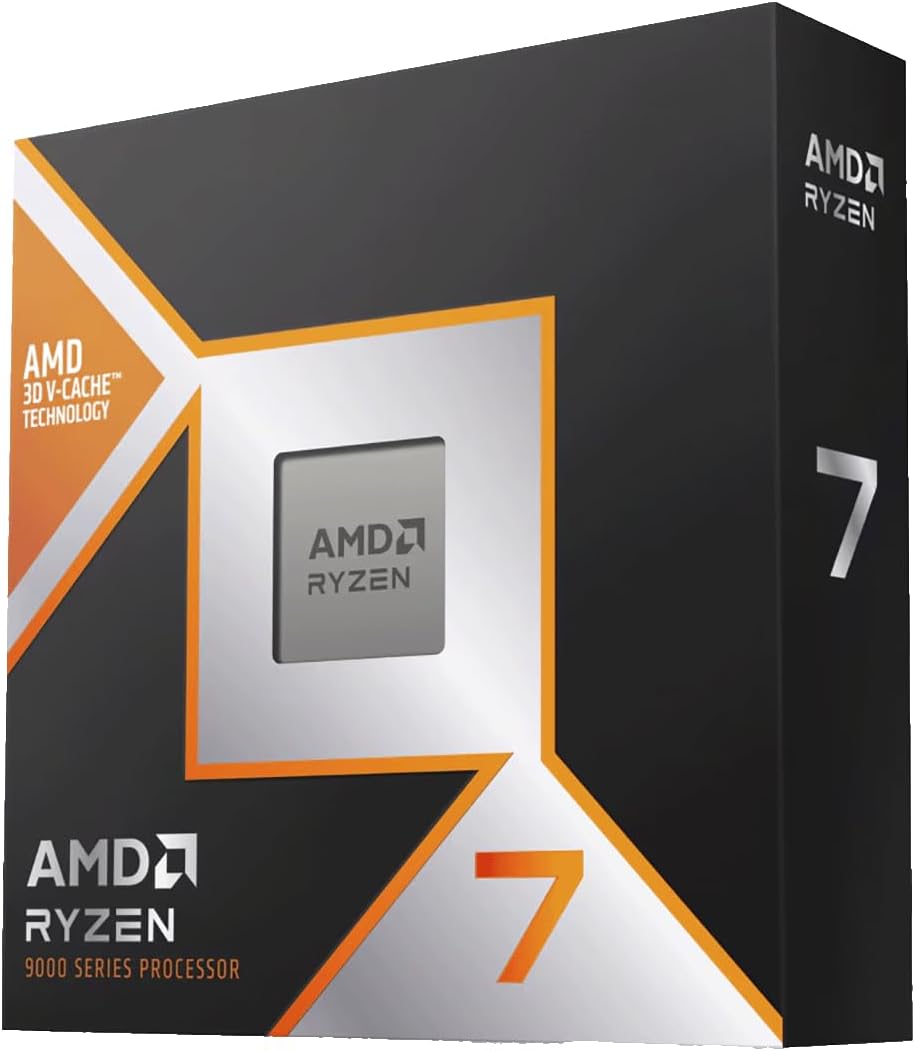

AMD Ryzen 7 9800X3D Processor Box – 8‑Core Zen 5, AM5, Up to 5.2GHz, 96MB 3D V‑Cache, Radeon Graphics

The AMD Ryzen 7 9800X3D Box processor is an 8‑core, 16‑thread Zen 5 gaming CPU with second‑generation AMD 3D V‑Cache technology, delivering top‑tier FPS and low latency for high‑refresh‑rate gaming on the AM5 platform.

Key Specifications

• Model: AMD Ryzen 7 9800X3D Desktop Processor (BOX) – 100-100001084WOF
• Architecture: Zen 5 (Granite Ridge), TSMC 4nm cores + 6nm I/O die
• Cores / Threads: 8 cores / 16 threads
• Base Clock: 4.7 GHz
• Max Boost Clock: up to 5.2 GHz
• Cache: 640KB L1, 8MB L2, 96MB L3 3D V‑Cache (104MB total cache)
• Socket: AM5
• Default TDP: 120W
• Max Operating Temperature (Tjmax): 95°C
• Integrated Graphics: AMD Radeon Graphics, 2 cores up to 2200 MHz
• Unlocked: Yes – supports overclocking, Precision Boost 2 & Precision Boost Overdrive

Platform & Memory

• Supporting chipsets: A620, B650, B650E, X670, X670E, B840, B850, X870, X870E
• System memory: DDR5 UDIMM, dual‑channel, up to 256GB
• Rated memory speed: up to DDR5‑5600 (higher with AMD EXPO overclocking)
• PCIe support: PCIe 5.0, up to 28 total / 24 usable CPU lanes for GPUs and NVMe SSDs

Gaming & Features

• Second‑generation AMD 3D V‑Cache for higher gaming frame rates and smoother 1% lows
• Ideal for high‑end 1080p / 1440p and capable 4K gaming with top‑tier GPUs
• Supports AMD EXPO memory overclocking and AMD Ryzen Master tuning software

Box Details & Emarat Gamers

• Retail BOX version (cooler not included – high‑quality air or liquid cooler recommended)
• Genuine AMD processor supplied by Emarat Gamers, perfect for premium gaming PC builds
