SAPPHIRE PURE AMD Radeon™ RX 9070 GPU 16GB GDDR6

The SAPPHIRE PURE AMD Radeon™ RX 9070 OC GPU is a high-performance graphics card built on AMD RDNA™ 4 architecture, featuring 16GB of GDDR6 memory on a 256-bit memory bus. It delivers up to 2700 MHz Boost Clock and up to 2210 MHz Game Clock, with 3584 Stream Processors, 56 Compute Units, 56 Ray Accelerators and 112 AI Accelerators.

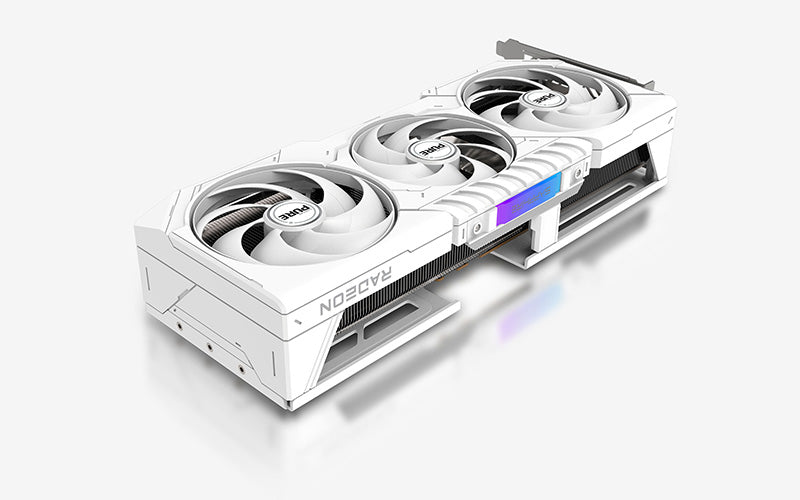

The card uses SAPPHIRE Tri-X cooling technology with AeroCurve Fan Blades, Free Flow airflow design, an Integrated Cooling Module, optimized composite heatpipes and dual-ball-bearing fans. It also incorporates Honeywell PTM7950 TIM, a metal backplate, FrameDefense construction and ARGB SAPPHIRE logo lighting.

With PCI-Express 5.0 x16 connectivity, two HDMI outputs and two DisplayPort 2.1a outputs, the card supports up to four displays and resolutions up to 7680 × 4320. It requires a minimum 650W power supply and two 8-pin power connectors.

Key Features

• AMD RDNA™ 4 Architecture
• AMD Radeon™ RX 9070 GPU with up to 2700 MHz Boost Clock
• 16GB GDDR6 memory with 256-bit memory bus and 20 Gbps effective memory speed
• 3584 Stream Processors, 56 Compute Units, 56 Ray Accelerators and 112 AI Accelerators
• SAPPHIRE Tri-X cooling with AeroCurve Fan Blades and Free Flow design
• Honeywell PTM7950 Thermal Interface Material
• PCI-Express 5.0 x16 interface
• 2x HDMI and 2x DisplayPort 2.1a
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution 4 with AI Upscaling
• ARGB SAPPHIRE Logo with external motherboard synchronization
• Includes L-Shape Support Bracket and 3-pin 5V ARGB Cable

Complete Technical Specifications

• Brand: SAPPHIRE
• Model: PURE AMD Radeon™ RX 9070 OC GPU
• Series: PURE
• GPU/CPU/Product Type: AMD Radeon™ RX 9070 Graphics Card
• Architecture: AMD RDNA™ 4
• Memory: 16GB
• Memory Type: GDDR6
• Memory Bus: 256-bit
• Memory Speed: 20 Gbps Effective
• Clock Speed: Boost Clock up to 2700 MHz; Game Clock up to 2210 MHz
• Interface: PCI-Express 5.0 x16
• Dimensions: 320 × 120.25 × 61.6 mm (L × W × H)
• Power Consumption: 245W Typical Board Power
• Power Connector: 2 × 8-pin
• Recommended PSU: Minimum 650W
• Cooling: SAPPHIRE Tri-X Cooling, AeroCurve Fan Blade, Free Flow, Integrated Cooling Module, optimized composite heatpipes and dual-ball-bearing fans
• Stream Processors: 3584
• Compute Units: 56 CUs
• Ray Accelerators: 56
• AI Accelerators: 112
• Infinity Cache: 64MB
• Maximum Displays: 4
• Maximum Resolution: 7680 × 4320
• HDMI: 2 × HDMI
• DisplayPort: 2 × DisplayPort 2.1a
• BIOS Support: UEFI
• Form Factor: 3-slot, ATX
• Operating System: Linux®, Windows® 10 and Windows 11; 64-bit operating system required
• Minimum System Memory: 8GB; 16GB recommended
• Typical Board Power: 245W
• SKU: 11349-02-20G

GPU Architecture

The graphics card uses AMD RDNA™ 4 architecture with 56 Compute Units, third-generation Ray Accelerators and second-generation AI Accelerators.

Memory

The card features 16GB of GDDR6 memory on a 256-bit memory bus with an effective memory speed of 20 Gbps.

Gaming Features

Supported technologies include AMD HYPR-RX with AFMF 2, AMD FidelityFX Super Resolution 4 with AI Upscaling, AMD Radiance Display Engine, AMD Fluid Motion Frames 2, AMD Radeon Anti-Lag 2, AMD FreeSync technology and AMD Software: Adrenalin Edition.

Cooling System

The PURE RX 9070 uses SAPPHIRE Tri-X Cooling with AeroCurve Fan Blades, Free Flow airflow optimization, an Integrated Cooling Module, optimized composite heatpipes and two-ball-bearing fans. The card also uses Honeywell PTM7950 TIM and a metal backplate.

Connectivity

The card provides 2 × HDMI and 2 × DisplayPort 2.1a outputs. It uses a PCI-Express 5.0 x16 interface and supports up to four displays at resolutions up to 7680 × 4320.

Power Requirements

A minimum 650W power supply is required, with 2 × 8-pin PCI-Express power connectors. The card has a typical board power rating of 245W.

Compatibility

Compatible with PCI Express-based PCs providing an available PCI-Express x16 graphics slot. Minimum 8GB system memory is required, with 16GB recommended. Supported operating systems include 64-bit Windows 10, Windows 11 and Linux.

Package Includes

• SAPPHIRE PURE AMD Radeon™ RX 9070 OC GPU
• L-Shape Support Bracket
• 3-pin 5V ARGB Cable
