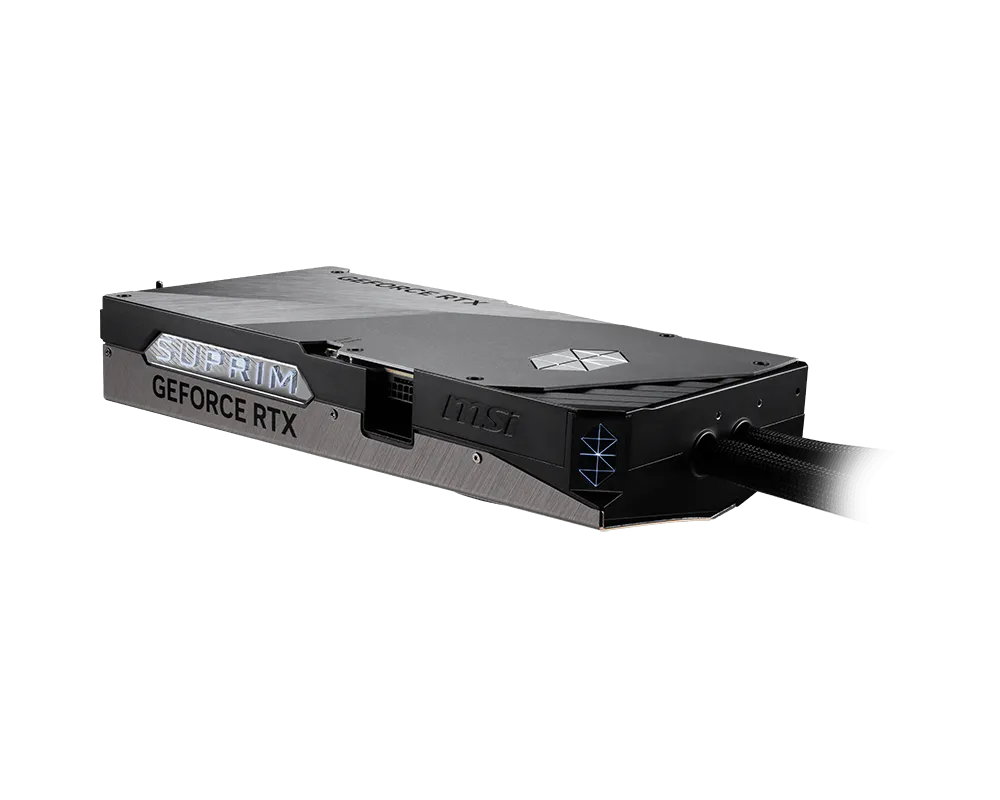

MSI GeForce RTX™ 5090 32G SUPRIM LIQUID SOC Graphics Card

The MSI GeForce RTX™ 5090 32G SUPRIM LIQUID SOC is a flagship NVIDIA GeForce RTX 5090 graphics card based on NVIDIA Blackwell architecture. It features 32GB of GDDR7 memory, a 512-bit memory bus and 28 Gbps memory speed.

The SUPRIM LIQUID SOC combines air and liquid cooling through a patented water block, advanced performance pump and 360 mm aluminum radiator with STORMFORCE fans. MSI specifies a Gaming Mode Boost clock of 2565 MHz and an Extreme Performance clock of 2580 MHz through MSI Center.

Key Features

• NVIDIA GeForce RTX™ 5090
• NVIDIA Blackwell architecture
• 32GB GDDR7 memory
• 512-bit memory interface
• 28 Gbps memory speed
• 2565 MHz Gaming Mode Boost clock
• 2580 MHz Gaming Mode Extreme Performance clock via MSI Center
• 2512 MHz Silent Mode Boost clock
• 2527 MHz Silent Mode Extreme Performance clock via MSI Center
• 21,760 CUDA cores
• SUPRIM LIQUID hybrid cooling
• Patented water block
• Advanced performance pump
• 360 mm aluminum radiator
• STORMFORCE fans
• Micro-fin copper base
• Durable braided PVC tubing
• Reinforcing metal backplate
• Dual BIOS
• 2 oz copper PCB
• PCI Express Gen 5 ×16
• 3 × DisplayPort 2.1b
• 1 × HDMI 2.1b
• Up to 4 displays
• 7680 × 4320 maximum digital resolution
• 600W Gaming Mode power consumption
• 575W Silent Mode power consumption
• 1000W recommended PSU
• 1 × 16-pin power connector
• ATX 3.1 PSU recommended
• NVIDIA DLSS 4.5
• NVIDIA Reflex 2
• NVIDIA Studio
• NVIDIA Broadcast
• Ninth-generation NVIDIA Encoder

Complete Technical Specifications

• Brand: MSI
• Model: GeForce RTX™ 5090 32G SUPRIM LIQUID SOC
• Series: SUPRIM LIQUID
• GPU/CPU/Product Type: NVIDIA GeForce RTX™ 5090 Graphics Card
• Architecture: NVIDIA Blackwell
• Memory: 32GB
• Memory Type: GDDR7
• Memory Bus: 512-bit
• Memory Speed: 28 Gbps
• Clock Speed: Gaming Mode Boost 2565 MHz; Extreme Performance 2580 MHz via MSI Center
• Silent Mode Clock Speed: Boost 2512 MHz; Extreme Performance 2527 MHz via MSI Center
• CUDA Cores: 21,760
• Interface: PCI Express Gen 5 ×16
• DisplayPort: 3 × DisplayPort 2.1b
• HDMI: 1 × HDMI 2.1b
• Maximum Displays: 4
• Maximum Digital Resolution: 7680 × 4320
• Dimensions: Card 280 × 148 × 51 mm
• Radiator Dimensions: 394 × 121 × 55 mm
• Tube Length: 450 mm
• Power Consumption: Gaming Mode 600W; Silent Mode 575W
• Power Connector: 1 × 16-pin
• Recommended PSU: 1000W
• Cooling: Hybrid air + liquid cooling
• Radiator: 360 mm aluminum radiator
• Fan: STORMFORCE
• DirectX: 12 Ultimate
• OpenGL: 4.6
• G-SYNC: Yes
• HDCP Support: Yes
• Model Name: G5090-32SLS
• SKU / P/N: 912-V530-011
• Card Weight: 2969 g
• Package Weight: 4273 g

GPU Architecture

The exact product uses NVIDIA Blackwell architecture with fifth-generation Tensor Cores, new Streaming Multiprocessors and fourth-generation Ray Tracing Cores. MSI specifies DLSS 4.5 with Dynamic Multi Frame Generation, neural rendering, NVIDIA Reflex 2, NVIDIA ACE and NVIDIA Studio technologies.

Memory

The exact SUPRIM LIQUID SOC has 32GB GDDR7 memory, a 512-bit memory bus and 28 Gbps memory speed.

Cooling System

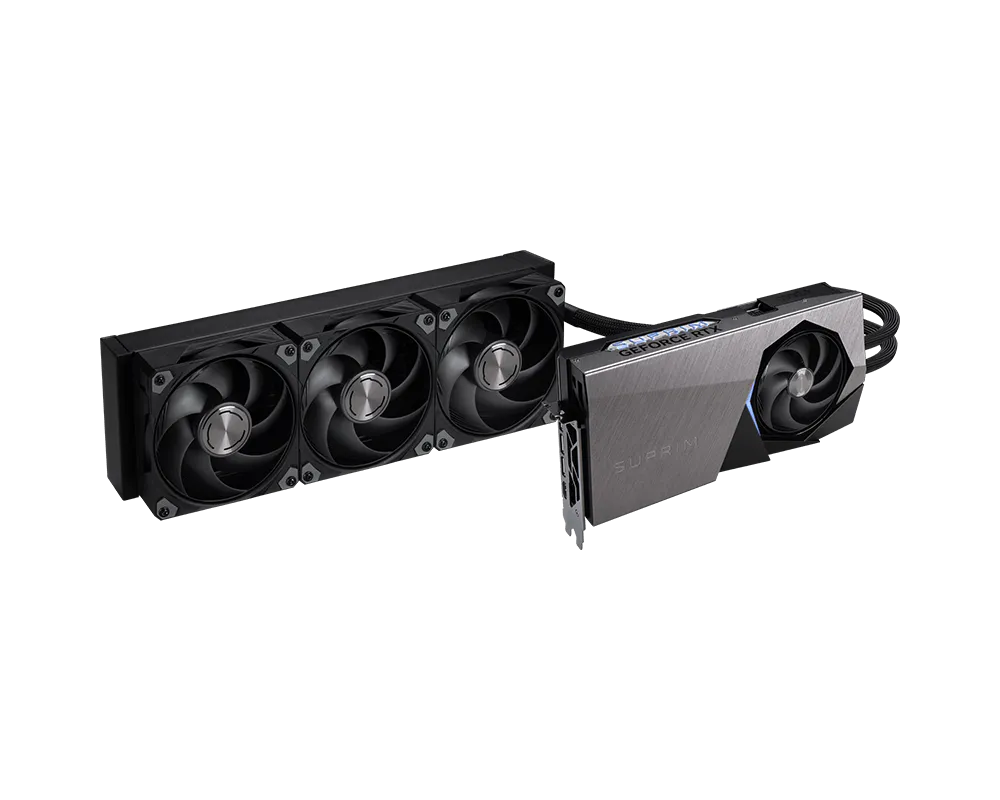

The SUPRIM LIQUID uses a hybrid cooling system combining air cooling and liquid cooling. It features a patented water block covering the GPU and VRAM, an advanced performance pump and a 360 mm aluminum radiator equipped with STORMFORCE fans.

Gaming and Creator Features

The RTX 5090 platform supports NVIDIA DLSS 4.5, Dynamic Multi Frame Generation, full ray tracing with neural rendering, NVIDIA Reflex 2, NVIDIA ACE, NVIDIA Studio and NVIDIA Broadcast.

Display Connectivity

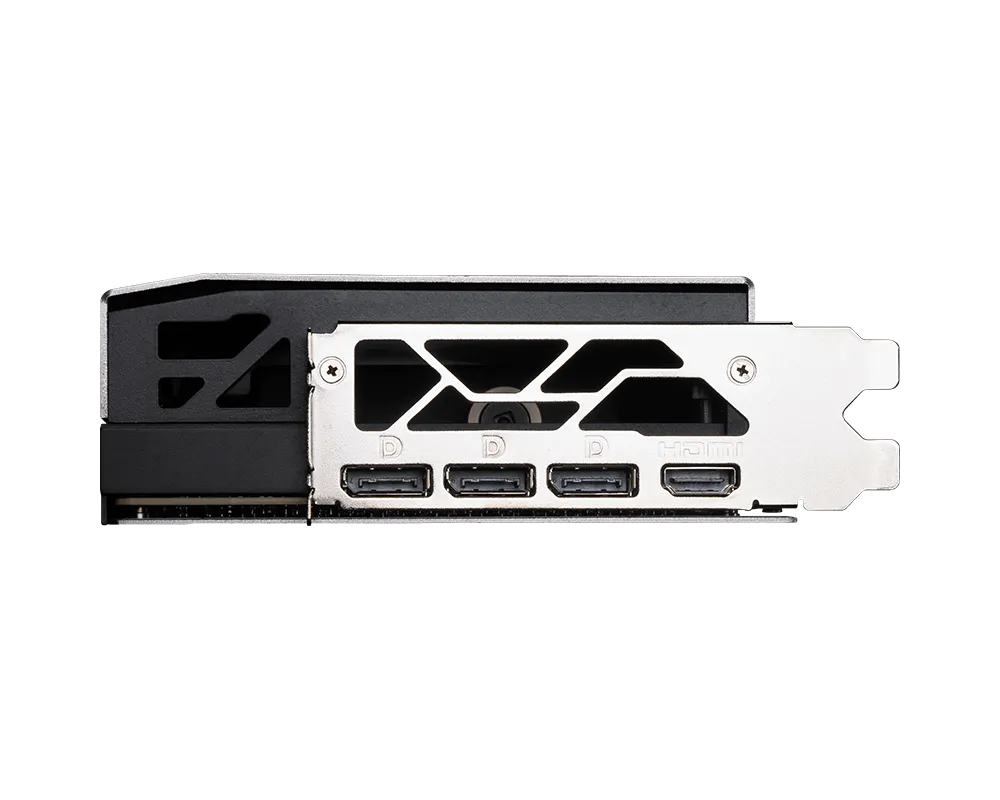

The exact model provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b. MSI specifies support for up to four displays and a maximum digital resolution of 7680 × 4320.

Power Requirements

The exact product has 600W Gaming Mode power consumption and 575W Silent Mode power consumption. It uses one 16-pin power connector, with MSI recommending a 1000W PSU and an ATX 3.1 PSU.

Physical Specifications

The graphics card measures 280 × 148 × 51 mm. The radiator measures 394 × 121 × 55 mm, with a 450 mm tube length. MSI lists the card weight as 2969 g and package weight as 4273 g.

Compatibility

• PCI Express Gen 5 ×16 compatible
• Requires a compatible PCI Express graphics-card slot
• 1000W recommended system PSU
• ATX 3.1 PSU recommended
• Requires one 16-pin power connector
• Requires chassis clearance for the 280 × 148 × 51 mm graphics card
• Requires appropriate radiator mounting space for the 394 × 121 × 55 mm radiator
• 450 mm liquid-cooling tube length
• Supports up to four displays
• Supports DirectX 12 Ultimate
• Supports OpenGL 4.6
• Supports NVIDIA G-SYNC
• Suitable for high-end gaming, AI, rendering and professional content creation

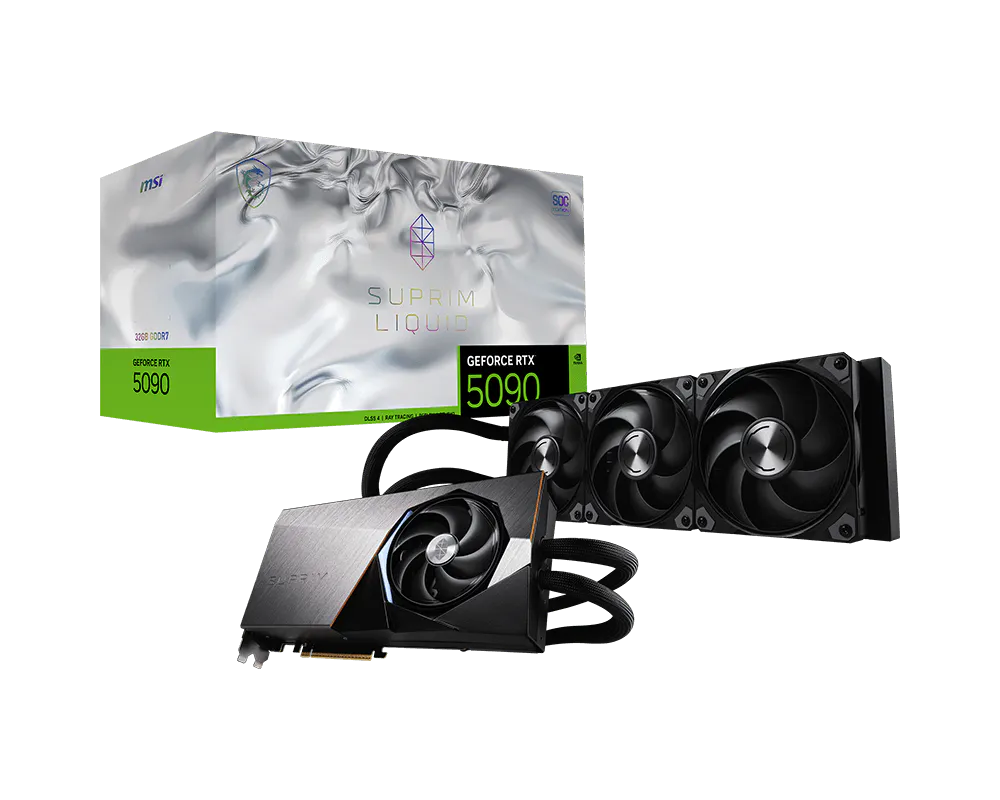

Package Includes

• MSI GeForce RTX™ 5090 32G SUPRIM LIQUID SOC Graphics Card
• 360 mm liquid-cooling radiator assembly
• Other package contents: Not Available

Warranty

3 years according to MSI's official Spain store listing
