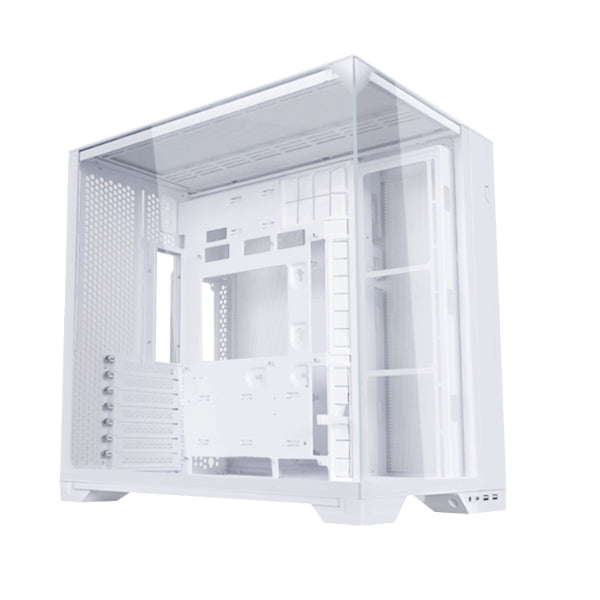

LIAN LI O11 VISION COMPACT PC Case
LIAN LI O11 VISION COMPACT PC Case
Couldn't load pickup availability
The LIAN LI O11 VISION COMPACT is a dual-chamber PC case designed for high-performance gaming and workstation builds. It combines a panoramic tempered-glass design with a swappable mesh top panel for improved airflow. The case supports back-connect ATX motherboards, graphics cards up to 408mm, CPU coolers up to 167mm and radiators up to 360mm.
Key Features
- Dual-chamber PC case design
- Tempered-glass panoramic view
- Swappable tempered-glass and mesh top panels
- Supports back-connect ATX motherboards
- Supports E-ATX motherboards under 280mm
- Supports graphics cards up to 408mm
- Supports CPU coolers up to 167mm
- Supports up to 11 × 120mm fans
- Supports radiators up to 360mm
- Removable GPU anti-sag bracket
- Supports up to four storage drives
- ATX PSU support up to 220mm
- Bottom removable dust filter
Complete Technical Specifications
| Specification | Details |
|---|---|
| Brand | LIAN LI |
| Model | O11 VISION COMPACT |
| Series | O11 |
| Product Type | PC Case |
| Case Type | Dual-Chamber Tower |
| Dimensions | 447.5 × 287.5 × 446.4 mm |
| Volume | 57.4 L |
| Material | Steel, Tempered Glass, Aluminium |
| Motherboard Support | E-ATX under 280mm, ATX, Micro-ATX, Mini-ITX |
| Back-Connect Motherboard | Supported |
| Expansion Slots | 6+1 |
| GPU Clearance | Up to 408mm |
| CPU Cooler Clearance | Up to 167mm |
| PSU Support | ATX, under 220mm |
| Top Fan Support | 3 × 120mm / 2 × 140mm |
| Side Fan Support | 3 × 120mm |
| Bottom Fan Support | 3 × 120mm |
| Rear Fan Support | 2 × 120mm |
| Maximum Fan Support | Up to 11 × 120mm |
| Top Radiator Support | 240mm / 280mm / 360mm |
| Side Radiator Support | 240mm / 360mm |
| Bottom Radiator Support | 240mm / 360mm |
| Maximum Radiator Support | 360mm |
| Storage Support | Up to 4 drives |
| 2.5-inch Drive Support | Up to 4 × 2.5-inch depending on configuration |
| 3.5-inch Drive Support | Up to 2 × 3.5-inch |
| Front I/O | Power Button, 2 × USB 3.0, 1 × USB Type-C, Audio |
| Top Panel | Tempered Glass / Mesh |
| Dust Filter | Bottom |
| GPU Anti-Sag Bracket | Included |
| GPU Anti-Sag Adjustment | 278–408mm |
| Black Model Number | O11VPX |
| White Model Number | O11VPW |
Chassis Design
The O11 VISION COMPACT uses a dual-chamber layout with the main hardware compartment separated from the cable-management and power-supply area.
The tempered-glass panels provide a panoramic view of the internal components, while the top panel can be changed to a mesh configuration for increased airflow.
Motherboard Compatibility
- E-ATX under 280mm
- ATX
- Micro-ATX
- Mini-ITX
- Back-connect ATX motherboards
Graphics Card Support
Supports graphics cards up to 408mm in length.
The included adjustable GPU anti-sag bracket supports graphics cards from approximately 278mm to 408mm.
Cooling Support
The case supports:
- Up to 3 × 120mm fans or 2 × 140mm fans at the top
- Up to 3 × 120mm fans on the side
- Up to 3 × 120mm fans at the bottom
- Up to 2 × 120mm fans at the rear
- Up to 11 × 120mm fans in mesh configuration
Radiator Support
- Top: 240mm / 280mm / 360mm
- Side: 240mm / 360mm
- Bottom: 240mm / 360mm
Storage Support
The O11 VISION COMPACT supports up to four storage drives depending on configuration.
- Up to 2 × 2.5-inch SSD behind the motherboard tray
- Up to 2 × 3.5-inch HDD or 2 × 2.5-inch SSD in the drive cage
Front I/O
- 1 × Power Button
- 2 × USB 3.0
- 1 × USB Type-C
- 1 × Audio
Compatibility
- ATX power supplies under 220mm
- ATX, E-ATX, Micro-ATX and Mini-ITX motherboards
- Back-connect ATX motherboards
- Graphics cards up to 408mm
- CPU coolers up to 167mm
- Up to 360mm radiators
Package Includes
- LIAN LI O11 VISION COMPACT PC Case
- GPU Anti-Sag Bracket
- Case Accessories
