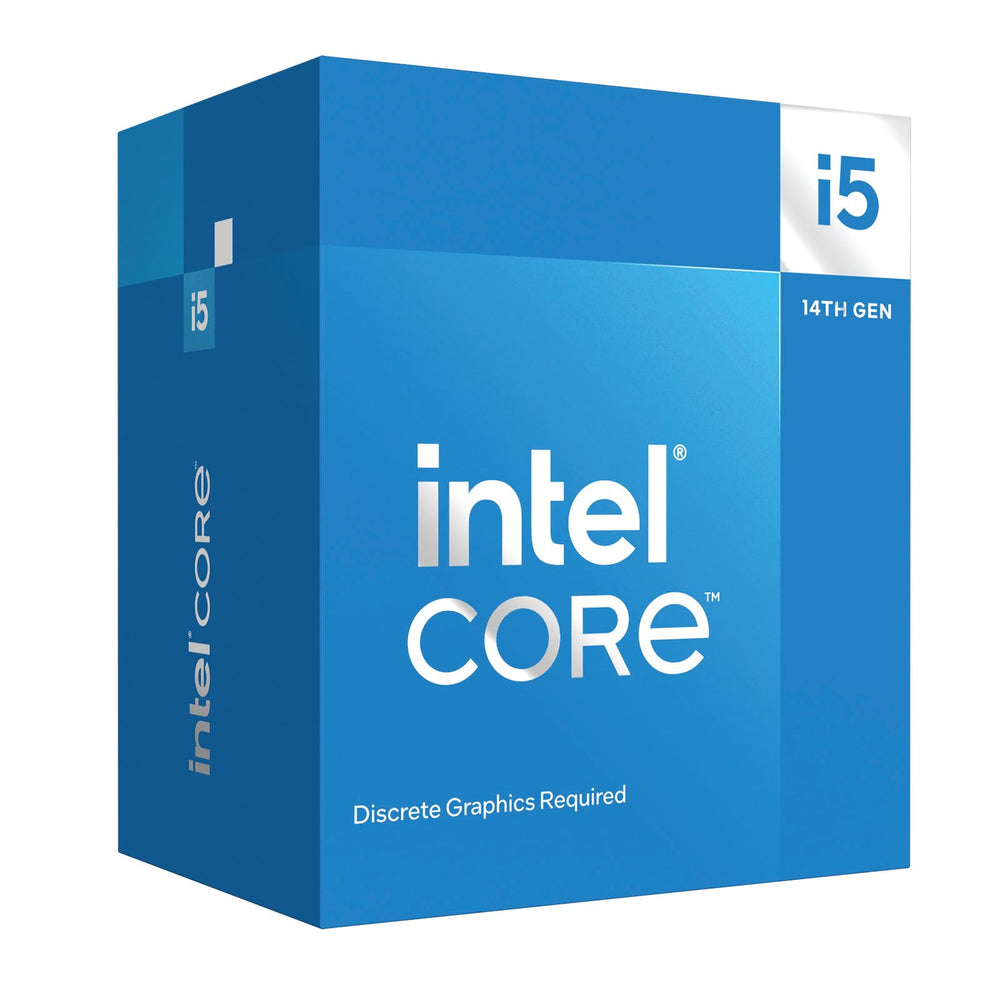

Intel Core i5-14400F Desktop Processor – 10 Cores, 16 Threads, Up to 4.7GHz, LGA1700
Key Highlights
- 10 Cores, 16 Threads
- Up to 4.7 GHz Turbo
- No Integrated Graphics
- Flexible LGA1700 Platform
The Intel Core i5-14400F is a 10-core desktop processor built on Intel’s hybrid architecture, pairing two different core types to handle different kinds of work. Six Performance-cores run at up to 4.7 GHz and take on games and anything that depends on single-thread speed. Four Efficient-cores handle background load — Discord, browser tabs, Windows services, streaming software — so those tasks never interrupt what the P-cores are doing. Together that gives 10 cores and 16 threads.
This split is what makes the 14400F feel smoother than its core count alone suggests. In practice, a game keeps the fast cores to itself while everything else running in the background is pushed onto the E-cores.
The F suffix means there is no integrated graphics. For a gaming build with a dedicated card that silicon would sit unused anyway, so Intel removes it and lowers the price — which is why the 14400F is one of the better value gaming processors in its class. A graphics card is required.
It carries 20 MB of Intel Smart Cache, supports both DDR4-3200 and DDR5-4800 memory across two channels up to 192 GB, and offers PCI Express 5.0 and 4.0 with 20 lanes. Base power is 65 W with a maximum turbo power of 148 W, so a mid-range cooler and a quality 550 W or larger power supply are sufficient in most builds.
It fits the LGA1700 socket, covering Intel 600 and 700 series chipsets — B760, H770 and Z790 boards among them — so there is a wide range of motherboards to pair it with at any budget.
| Brand | Intel |
| Series | Intel Core i5 (14th Generation) |
| Model | Core i5-14400F |
| Codename | Raptor Lake Refresh |
| Total Cores | 10 (6 Performance + 4 Efficient) |
| Total Threads | 16 |
| P-Core Base Frequency | 2.5 GHz |
| P-Core Max Turbo Frequency | 4.7 GHz |
| E-Core Base Frequency | 1.8 GHz |
| E-Core Max Turbo Frequency | 3.5 GHz |
| Intel Smart Cache (L3) | 20 MB |
| L2 Cache | 9.5 MB |
| Base Power | 65 W |
| Maximum Turbo Power | 148 W |
| Socket | LGA1700 (FCLGA1700) |
| Integrated Graphics | None — dedicated graphics card required |
| Memory Support | DDR5 up to 4800 MT/s, DDR4 up to 3200 MT/s |
| Memory Channels | 2 |
| Maximum Memory | 192 GB |
| PCI Express Revision | 5.0 and 4.0 |
| Maximum PCIe Lanes | 20 |
| Lithography | Intel 7 |
| Max Junction Temperature | 100°C |
| Compatible Chipsets | Intel 600 and 700 Series (B760, H770, Z790 and others) |
