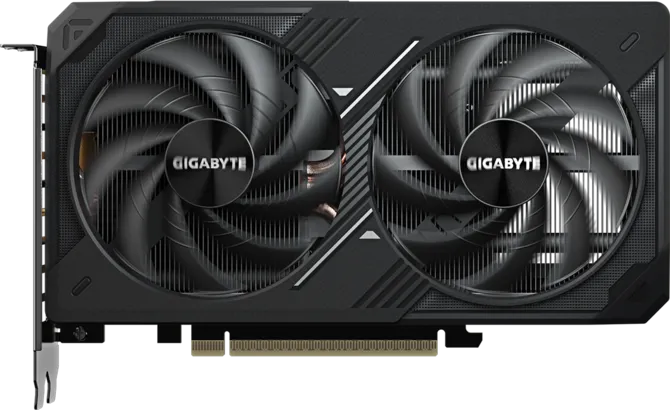

GIGABYTE GeForce RTX™ 5060 Ti WINDFORCE MAX OC 16G Graphics Card
GIGABYTE GeForce RTX™ 5060 Ti WINDFORCE MAX OC 16G Graphics Card
Couldn't load pickup availability
The supplied product text, quantity and URL have been cross-checked. The official GIGABYTE page identifies the exact product as GeForce RTX™ 5060 Ti WINDFORCE MAX OC 16G, model GV-N506TWF2MAX OC-16GD, matching the supplied SKU/model family. GIGABYTE Official Product Page
Product Description
The GIGABYTE GeForce RTX™ 5060 Ti WINDFORCE MAX OC 16G is a graphics card powered by NVIDIA Blackwell architecture and DLSS 4. It features 16GB of GDDR7 memory on a 128-bit interface and a factory-overclocked core clock of 2587 MHz, compared with 2572 MHz for the NVIDIA reference card.
The card uses GIGABYTE WINDFORCE cooling technology incorporating Hawk fans, server-grade thermal conductive gel and a reinforced structure. It uses PCI Express 5.0 connectivity and provides three DisplayPort 2.1b outputs and one HDMI 2.1b output.
Key Features
- NVIDIA GeForce RTX™ 5060 Ti
- NVIDIA Blackwell architecture
- 16GB GDDR7 memory
- 128-bit memory interface
- 28 Gbps memory speed
- 2587 MHz factory-overclocked core clock
- 4608 CUDA cores
- GIGABYTE WINDFORCE cooling system
- Hawk fans
- Server-grade thermal conductive gel
- Reinforced structure
- PCI Express 5.0
- 3 × DisplayPort 2.1b
- 1 × HDMI 2.1b
- Supports up to 4 displays
- Maximum resolution of 7680 × 4320
- 650W recommended PSU
- 1 × 8-pin power connector
Complete Technical Specifications
- Brand: GIGABYTE
- Model: GV-N506TWF2MAX OC-16GD
- Series: WINDFORCE MAX OC
- GPU/CPU/Product Type: NVIDIA GeForce RTX™ 5060 Ti Graphics Card
- Architecture: NVIDIA Blackwell
- Memory: 16GB
- Memory Type: GDDR7
- Memory Bus: 128-bit
- Memory Speed: 28 Gbps
- Clock Speed: 2587 MHz
- Reference Clock: 2572 MHz
- CUDA Cores: 4608
- Interface: PCI Express 5.0
- Dimensions: 208 × 120 × 40 mm
- Power Consumption: Not Available
- Power Connector: 1 × 8-pin
- Recommended PSU: 650W
- Cooling: GIGABYTE WINDFORCE
- Fans: Hawk fans
- Maximum Displays: 4
- Maximum Digital Resolution: 7680 × 4320
- DisplayPort: 3 × DisplayPort 2.1b
- HDMI: 1 × HDMI 2.1b
- DirectX: DirectX 12 API
- OpenGL: 4.6
- Card Bus: PCI Express 5.0
- PCB Form: ATX
- SKU / P/N: GV-N506TWF2MAX OC-16GD
GPU Architecture
The graphics card uses NVIDIA Blackwell architecture and is powered by the GeForce RTX 5060 Ti GPU. It incorporates fifth-generation Tensor Cores, new Streaming Multiprocessors and fourth-generation Ray Tracing Cores.
Memory
The exact model has 16GB of GDDR7 memory with a 128-bit memory interface and 28 Gbps memory speed.
Cooling System
GIGABYTE's WINDFORCE cooling system uses Hawk fans, server-grade thermal conductive gel and a reinforced structure. The design is intended to provide enhanced thermal performance while maintaining structural durability.
Connectivity
The card provides three DisplayPort 2.1b outputs and one HDMI 2.1b output. It supports up to four simultaneous displays and a maximum digital resolution of 7680 × 4320.
Power Requirements
GIGABYTE specifies a 650W recommended power supply and one 8-pin power connector for this exact model.
Physical Specifications
The exact GIGABYTE model measures 208 × 120 × 40 mm and uses an ATX PCB form.
Compatibility
- PCI Express 5.0 compatible
- Requires an available PCI Express graphics-card slot
- 650W recommended system PSU
- One 8-pin auxiliary power connector
- Supports up to four displays
- Supports DirectX 12 API
- Supports OpenGL 4.6
- Suitable for desktop PC use
