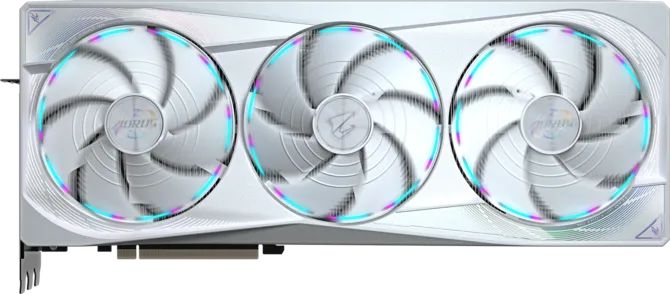

GIGABYTE AORUS GeForce RTX™ 5080 MASTER ICE 16G Graphics Card

Product Description

The GIGABYTE AORUS GeForce RTX™ 5080 MASTER ICE 16G is a premium NVIDIA GeForce RTX 5080 graphics card powered by NVIDIA Blackwell architecture. It features 16GB of GDDR7 memory with a 256-bit memory interface and a factory core clock of 2805 MHz, compared with 2617 MHz reference clock.

The card features GIGABYTE WINDFORCE cooling with Hawk fans, composite metal grease for the GPU, server-grade thermal conductive gel, LCD Edge View, RGB Halo lighting, Dual BIOS, reinforced construction and a versatile VGA holder.

Key Features

• NVIDIA GeForce RTX™ 5080
• NVIDIA Blackwell architecture
• 16GB GDDR7 memory
• 256-bit memory interface
• 30 Gbps memory speed
• 2805 MHz core clock
• 10,752 CUDA cores
• WINDFORCE cooling system
• Hawk fan technology
• LCD Edge View
• RGB Halo
• Dual BIOS: Performance / Silent
• Reinforced structure
• Versatile VGA holder
• PCI Express 5.0
• 3 × DisplayPort 2.1b
• 1 × HDMI 2.1b
• Supports up to 4 displays
• 7680 × 4320 maximum digital resolution
• 850W recommended PSU
• 1 × 16-pin power connector
• 4-year warranty with online registration

Complete Technical Specifications

• Brand: GIGABYTE
• Model: GV-N5080AORUSM ICE-16GD
• Series: AORUS MASTER ICE
• GPU/CPU/Product Type: NVIDIA GeForce RTX™ 5080 Graphics Card
• Architecture: NVIDIA Blackwell
• Memory: 16GB
• Memory Type: GDDR7
• Memory Bus: 256-bit
• Memory Speed: 30 Gbps
• Clock Speed: 2805 MHz
• Reference Clock: 2617 MHz
• CUDA Cores: 10,752
• Interface: PCI Express 5.0
• Dimensions: 360 × 150 × 75 mm
• Power Consumption: Not Available
• Power Connector: 1 × 16-pin
• Recommended PSU: 850W
• Cooling: WINDFORCE
• Fan Configuration: 3 fans
• DisplayPort: 3 × DisplayPort 2.1b
• HDMI: 1 × HDMI 2.1b
• Maximum Displays: 4
• Maximum Digital Resolution: 7680 × 4320
• PCB Form: ATX
• DirectX: DirectX 12 API
• OpenGL: OpenGL 4.6
• Lighting: RGB Halo
• BIOS: Dual BIOS — Performance / Silent
• SKU / P/N: GV-N5080AORUSM ICE-16GD

GPU Architecture

The card is powered by NVIDIA Blackwell architecture and the GeForce RTX 5080 GPU, with 10,752 CUDA cores. GIGABYTE also specifies fifth-generation Tensor Cores, new Streaming Multiprocessors and fourth-generation Ray Tracing Cores.

Memory

The exact model includes 16GB GDDR7 memory using a 256-bit memory interface and 30 Gbps memory speed.

Cooling System

The WINDFORCE cooling system incorporates Hawk fans, composite metal grease for the GPU and server-grade thermal conductive gel. The card also includes additional structural and thermal design features intended for high-performance operation.

Display and Connectivity

The card provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b outputs. It supports up to four simultaneous displays with a maximum digital resolution of 7680 × 4320.

Gaming and Creator Features

The card supports NVIDIA DLSS, NVIDIA Reflex, full ray tracing, NVIDIA ACE, NVIDIA Studio technologies, NVIDIA Broadcast and NVIDIA G-SYNC technologies.

Power Requirements

GIGABYTE specifies an 850W recommended power supply and one 16-pin power connector for this exact model.

Physical Specifications

The official specification lists dimensions of 360 × 150 × 75 mm and an ATX PCB form.

Compatibility

• PCI Express 5.0 compatible
• Requires an available PCI Express graphics-card slot
• 850W recommended system PSU
• One 16-pin power connector
• Supports up to four displays
• Supports DirectX 12 API
• Supports OpenGL 4.6
• Compatible with NVIDIA GeForce drivers
• Suitable for gaming and creator workloads

Package Includes

• VGA manual
• Warranty notice
• 12V-2x6 to 3 × PCIe 8-pin adapter
• AORUS identity stickers
• Versatile VGA holder
• Versatile VGA holder manual
• Screen cooling plus RGB fan
