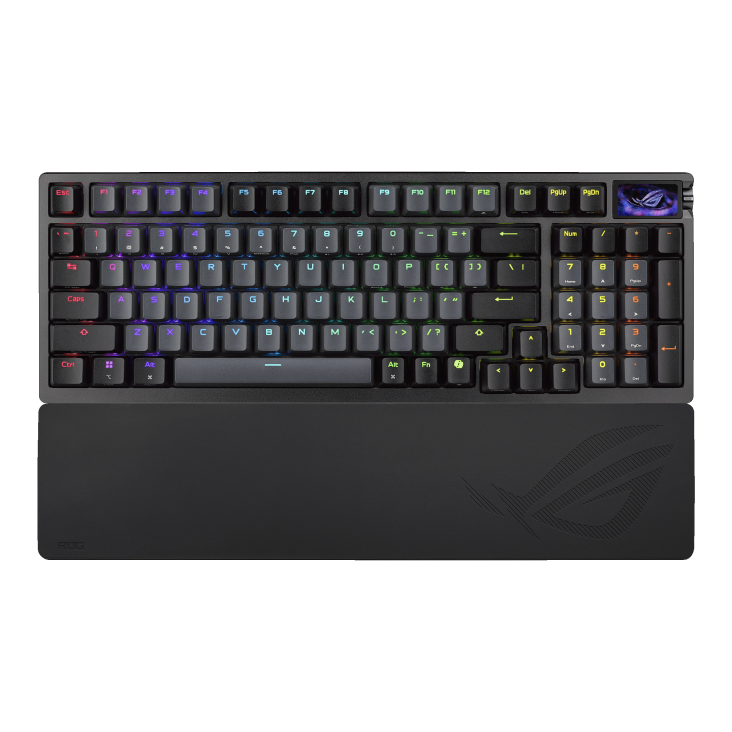

ASUS ROG Azoth 96 HE Wireless Magnetic Gaming Keyboard – 96% Layout, HFX V2 Hall Effect Switches, 1.47" Touchscreen, 8000Hz
Key Highlights
- 8000 Hz — Wireless
- 0.1–3.5 mm in 0.01 mm Steps
- 1.47" Touchscreen + Three-Way Knob
- Six-Layer Dampening, Aluminium Frame
The ASUS ROG Azoth 96 HE is a tri-mode wireless gaming keyboard that pairs a 96% layout with ROG HFX V2 magnetic Hall effect switches. A Hall sensor tracks each key's position continuously rather than relying on a fixed contact point, so the actuation can be set anywhere from 0.1 mm to 3.5 mm in 0.01 mm steps, with Rapid Trigger resetting a key the instant you begin to lift.
ROG SpeedNova wireless delivers the full 8000 Hz polling rate without a cable — a rate normally reserved for wired keyboards. Bluetooth pairs with up to five devices, and USB is there when you want it.
The 96% layout keeps a full numpad in a 382 mm footprint, and a 1.47-inch full-colour touchscreen plus a three-way knob let you adjust actuation, lighting and volume without opening software. An aluminium top frame, gasket mount and six layers of dampening — four PORON layers, an IXPE pad and a silicone pad — give it a deep, quiet typing sound.
| Brand ASUS | |
| Series ROG (Republic of Gamers) | |
| Model ROG Azoth 96 HE | |
| Available Colours Black / White | |
| Layout 96% with numpad | |
| Switch Type ROG HFX V2 Magnetic (Hall Effect) | |
| Hot-Swappable Yes | |
| Actuation Range 0.1 – 3.5 mm, adjustable in 0.01 mm steps | |
| Rapid Trigger Yes | |
| Connection Tri-mode — ROG SpeedNova 2.4 GHz, Bluetooth (up to 5 devices), wired USB | |
| Polling Rate Up to 8000 Hz, wired and wireless | |
| Display 1.47-inch full-colour touchscreen | |
| On-Board Controls Three-way knob | |
| Mounting Gasket mount | |
| Dampening Six layers — 4× PORON, IXPE pad, silicone pad | |
| Chassis Aluminium top frame, plastic base | |
| Lighting Per-key RGB with Aura Sync | |
| Software ROG Gear Link (web-based) and Armoury Crate | |
| Operating System Windows 11, macOS 10.11 or later | |
| Dimensions 382 × 136 × 42 mm |
