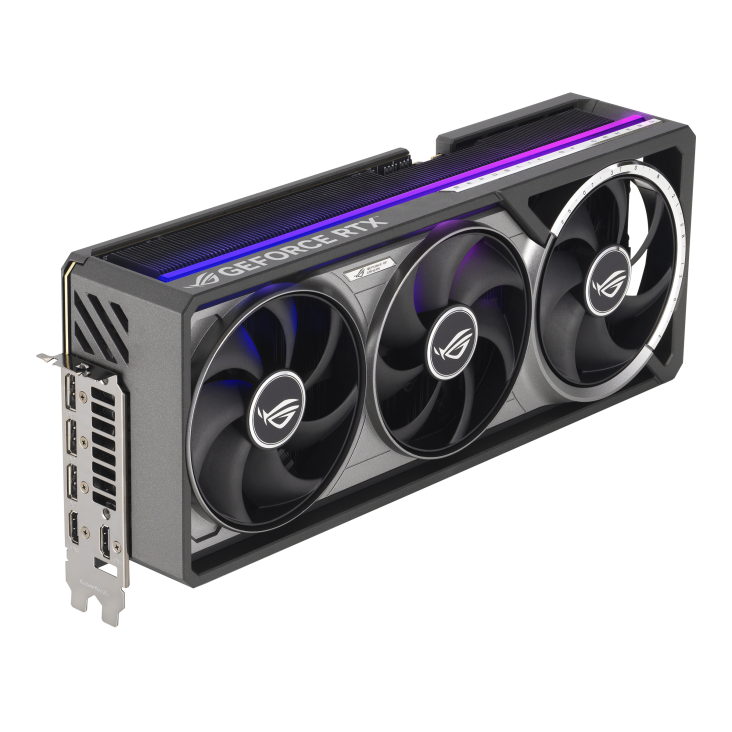

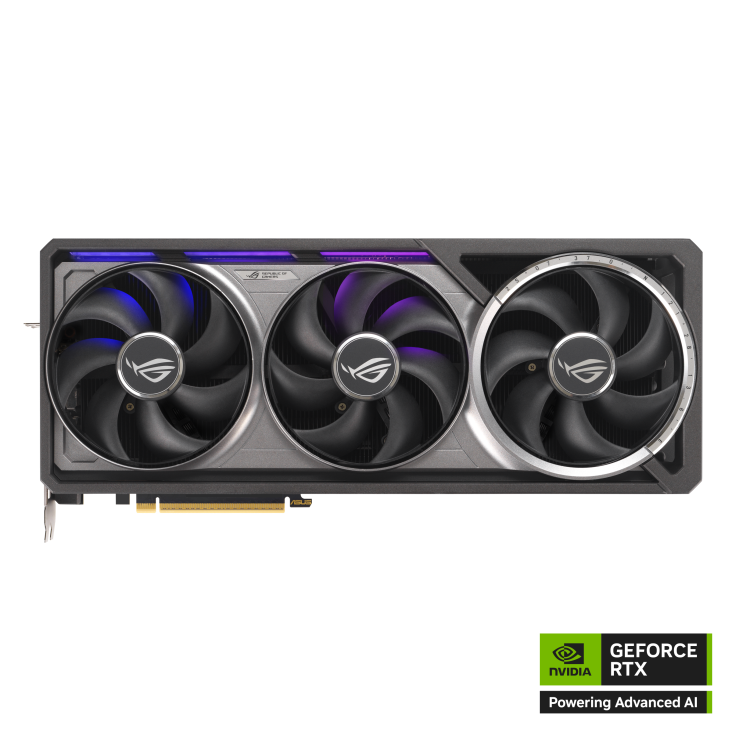

ASUS ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition

The ASUS ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition is a premium NVIDIA GeForce RTX 5080 graphics card built on the NVIDIA Blackwell architecture and designed for high-end gaming, content creation, AI workloads and demanding graphics applications. The exact manufacturer part number supplied for this product is 90YV0LV0-M0NA00. ASUS specifies 16GB of GDDR7 memory, a 256-bit memory interface, 30 Gbps memory speed and 10,752 CUDA cores.

The ROG Astral uses a four-fan cooling design, a patented vapor chamber, phase-change GPU thermal pad and a 3.8-slot heatsink design. ASUS specifies a 2760 MHz default Boost Clock for this exact OC Edition configuration and an OC mode clock of 2790 MHz.

The card provides PCI Express 5.0 connectivity, two HDMI 2.1b outputs and three DisplayPort outputs, supports up to four displays, and requires an 850W recommended power supply with one 16-pin power connector.

Key Features

• NVIDIA GeForce RTX™ 5080 GPU
• NVIDIA Blackwell architecture
• 16GB GDDR7 memory
• 256-bit memory interface
• 30 Gbps memory speed
• 10,752 CUDA cores
• Up to 2790 MHz OC Mode clock
• 2760 MHz Default Boost Clock
• 1801 AI TOPS
• PCI Express 5.0
• Quad-fan cooling design
• Patented vapor chamber with milled heatspreader
• Phase-change GPU thermal pad
• 3.8-slot design
• GPU Guard protection
• Full-metal die-cast shroud, frame and backplate
• 2 × HDMI 2.1b
• 3 × DisplayPort
• Up to 4 displays
• ARGB lighting with Aura Sync
• 850W recommended PSU

Complete Technical Specifications

• Brand: ASUS
• Model: ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition
• Series: ROG Astral
• GPU/CPU/Product Type: NVIDIA GeForce RTX™ 5080 Graphics Card
• Architecture: NVIDIA Blackwell
• Memory: 16GB
• Memory Type: GDDR7
• Memory Bus: 256-bit
• Memory Speed: 30 Gbps
• Clock Speed: OC Mode 2790 MHz; Default Mode 2760 MHz Boost Clock
• CUDA Cores: 10,752
• AI Performance: 1801 TOPs
• Interface: PCI Express 5.0
• Dimensions: 357.6 × 149.3 × 76 mm
• Power Consumption: Not Available
• Power Connector: 1 × 16-pin
• Recommended PSU: 850W
• Cooling: Active; four-fan ASUS Axial-tech cooling system
• Number of Fans: 4
• Slot Size: 3.8-slot
• Maximum Resolution: 7680 × 4320
• Maximum Displays: 4
• HDMI: 2 × HDMI 2.1b
• DisplayPort: 3 × DisplayPort 2.1a
• HDCP: 2.3
• OpenGL: 4.6
• VR Ready: Yes
• NVIDIA G-SYNC: Yes
• Lighting: ARGB / Multi-colour
• AURA SYNC: Yes
• Form Factor: Full-Height / Full-Length (FH/FL)
• Product Colour: Multicolour
• SFF Ready: No
• SKU / Part Number: 90YV0LV0-M0NA00

GPU Architecture

The ROG Astral RTX 5080 is based on NVIDIA's Blackwell architecture and provides 10,752 CUDA cores. ASUS specifies AI performance of up to 1801 TOPs for this model.

Memory

The exact model features 16GB of GDDR7 memory with a 256-bit memory interface and 30 Gbps memory speed.

Cooling System

The ROG Astral employs a quad-fan cooling design intended to increase airflow and air pressure. ASUS also specifies a patented vapor chamber with milled heatspreader, phase-change GPU thermal pad, increased heatsink fin density and a 3.8-slot heatsink design.

Gaming and Display Features

The card supports up to four displays and provides two native HDMI 2.1b outputs and three DisplayPort outputs. Maximum digital resolution is 7680 × 4320. It also supports NVIDIA G-SYNC, HDCP 2.3 and VR applications.

Power Requirements

ASUS specifies an 850W recommended power supply and one 16-pin power connector for this exact model.

Physical Design

The card measures 357.6 × 149.3 × 76 mm and occupies 3.8 slots. Its listed weight is 2.86 kg.

Compatibility

• Compatible with systems providing a PCI Express 5.0 graphics interface
• Requires an available full-length PCI Express graphics slot
• 850W recommended system PSU
• Requires one 16-pin power connector
• Supports Windows operating systems
• Supports up to four displays
• Supports NVIDIA G-SYNC
• VR ready

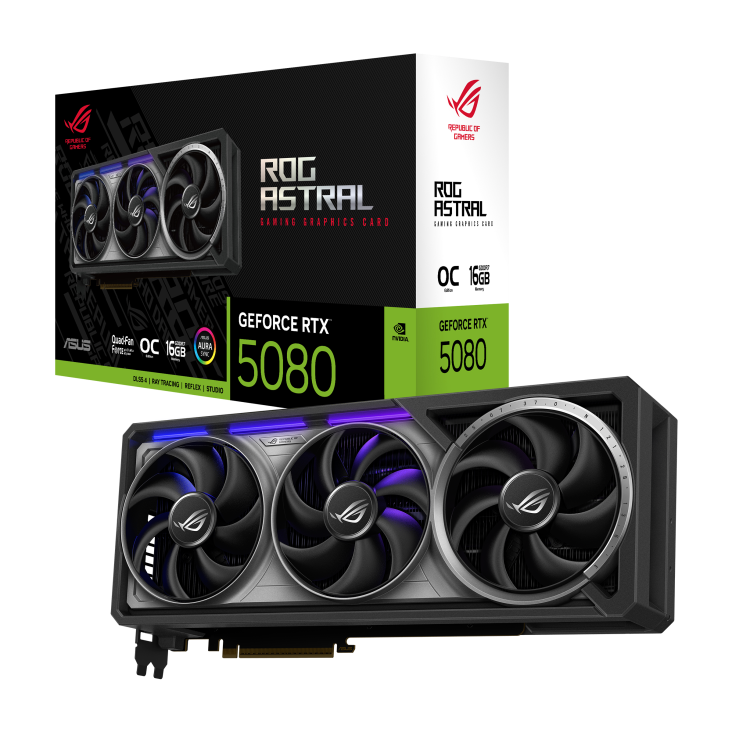

Package Includes

• ROG Graphics Card Holder
• ROG Velcro Hook & Loop
• ROG Magnet
• ROG Graphics Card Keycap
• ROG PCB Ruler
• Thank You Card
• Speedsetup Manual
• Adapter Cable (1-to-3)
