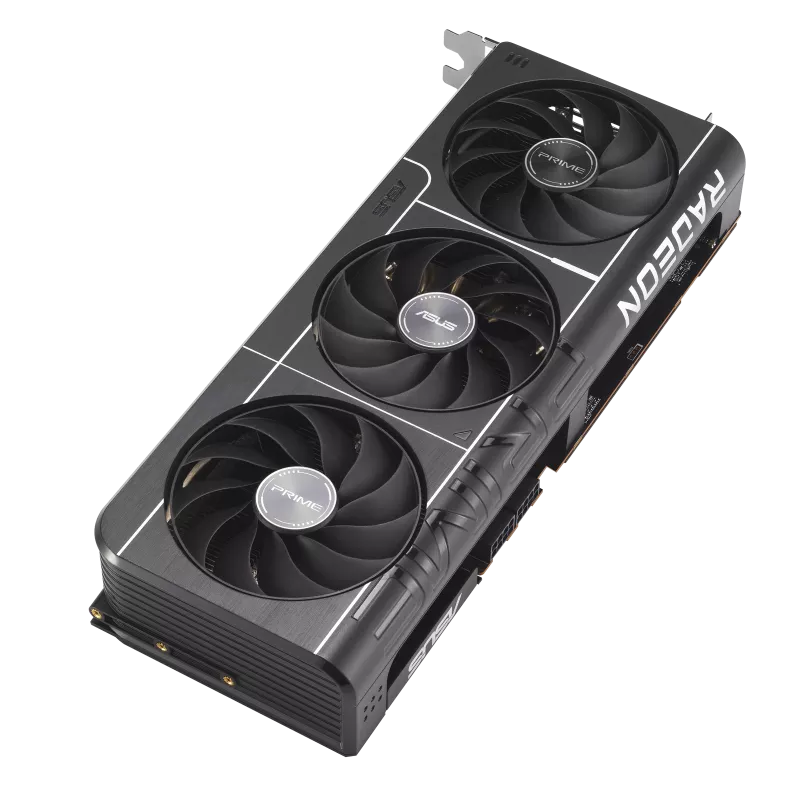

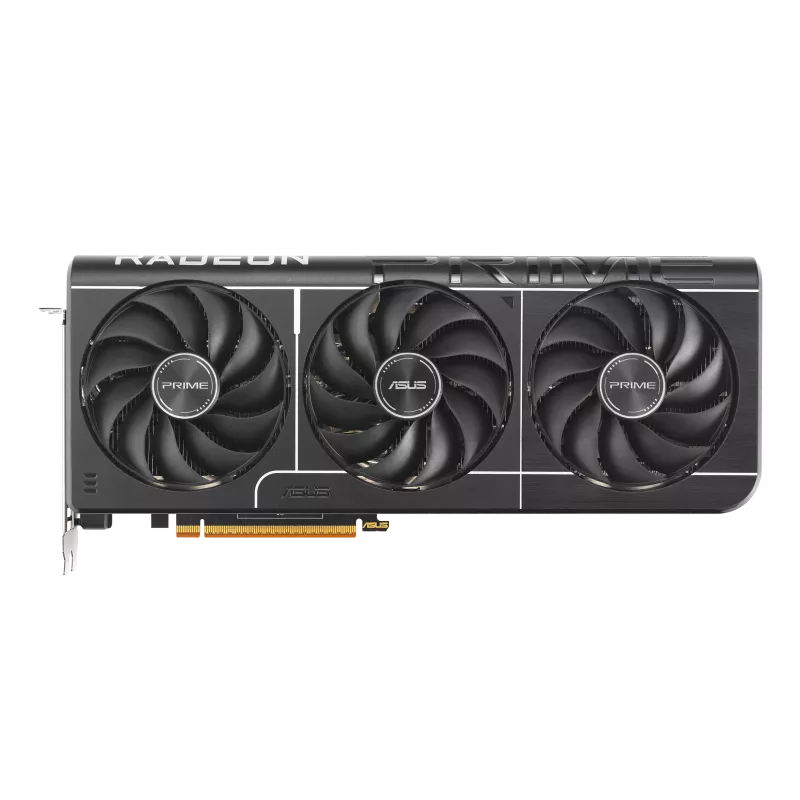

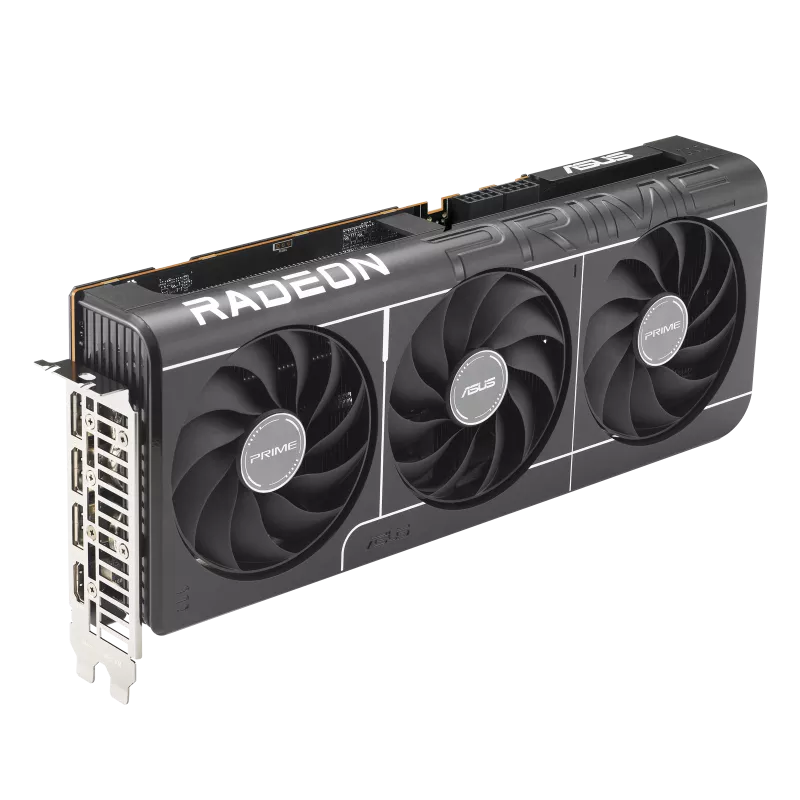

ASUS Prime Radeon™ RX 9070 OC Edition 16GB GDDR6 Graphics Card

The ASUS Prime Radeon™ RX 9070 OC Edition 16GB GDDR6 Graphics Card is based on the AMD Radeon™ RX 9070 GPU and uses PCI Express 5.0 connectivity. The exact ASUS model is PRIME-RX9070-O16G. ASUS specifies 16GB of GDDR6 memory, a 256-bit memory interface, 20 Gbps memory speed and 3,584 Stream Processors.

The OC mode reaches up to 2610 MHz Boost Clock and 2140 MHz Game Clock. The card uses a 2.5-slot cooling design and ASUS specifies a 650W recommended PSU with two 8-pin power connectors.

Key Features

• AMD Radeon™ RX 9070 GPU
• AMD RDNA 4 architecture
• 16GB GDDR6 memory
• 256-bit memory interface
• 20 Gbps memory speed
• Up to 2610 MHz OC Mode Boost Clock
• Up to 2140 MHz OC Mode Game Clock
• 3,584 Stream Processors
• PCI Express 5.0
• 2.5-slot design
• ASUS Axial-tech cooling
• 3-fan cooling system
• 0dB technology
• 1 × HDMI 2.1b
• 3 × DisplayPort 2.1a
• Up to 4 displays
• Maximum digital resolution of 7680 × 4320
• 2 × 8-pin power connectors
• 650W recommended PSU

Complete Technical Specifications

• Brand: ASUS
• Model: PRIME-RX9070-O16G
• Series: ASUS Prime
• GPU/CPU/Product Type: AMD Radeon™ RX 9070 Graphics Card
• Architecture: AMD RDNA 4
• Memory: 16GB
• Memory Type: GDDR6
• Memory Bus: 256-bit
• Memory Speed: 20 Gbps
• Clock Speed: OC Mode up to 2610 MHz Boost / up to 2140 MHz Game; Default Mode up to 2590 MHz Boost / up to 2120 MHz Game
• Stream Processors: 3584
• Interface: PCI Express 5.0
• Dimensions: 312 × 130 × 50 mm
• Power Consumption: Not Available
• Power Connector: 2 × 8-pin
• Recommended PSU: 650W
• Cooling: ASUS Axial-tech cooling
• Number of Fans: 3
• Slot Size: 2.5-slot
• Maximum Resolution: 7680 × 4320
• Maximum Displays: 4
• HDMI: 1 × HDMI 2.1b
• DisplayPort: 3 × DisplayPort 2.1a
• HDCP: 2.3
• OpenGL: 4.6
• NVLink / CrossFire: No
• Fan Technology: 0dB Technology
• BIOS: Not Available
• Software: ASUS GPU Tweak III & Drivers
• SKU / Part Number: 90YV0LI1-M0NA00

GPU Architecture

The exact PRIME-RX9070-O16G uses the AMD Radeon™ RX 9070 graphics engine with 3,584 Stream Processors. ASUS specifies PCI Express 5.0 as the bus standard.

Memory

The card has 16GB GDDR6 memory running at 20 Gbps with a 256-bit memory interface.

Clock Speeds

ASUS specifies up to 2610 MHz Boost Clock / 2140 MHz Game Clock in OC Mode. Default Mode is up to 2590 MHz Boost Clock / 2120 MHz Game Clock.

Cooling System

The exact model uses a 2.5-slot cooling design with ASUS Axial-tech cooling and 0dB technology.

Display Connectivity

The card provides 1 × HDMI 2.1b and 3 × DisplayPort 2.1a, with support for up to four displays and a maximum digital resolution of 7680 × 4320.

Power Requirements

ASUS specifies 2 × 8-pin power connectors and a 650W recommended PSU for this exact model.

Physical Design

The exact ASUS PRIME-RX9070-O16G measures 312 × 130 × 50 mm and occupies 2.5 slots.

Compatibility

• PCI Express 5.0 compatible motherboard
• Compatible full-length PCI Express graphics slot
• 2 × 8-pin PCIe power connectors
• ASUS recommended 650W PSU
• Up to 4 displays
• HDMI 2.1b and DisplayPort 2.1a
• Compatible with modern Windows gaming and workstation systems

Package Includes

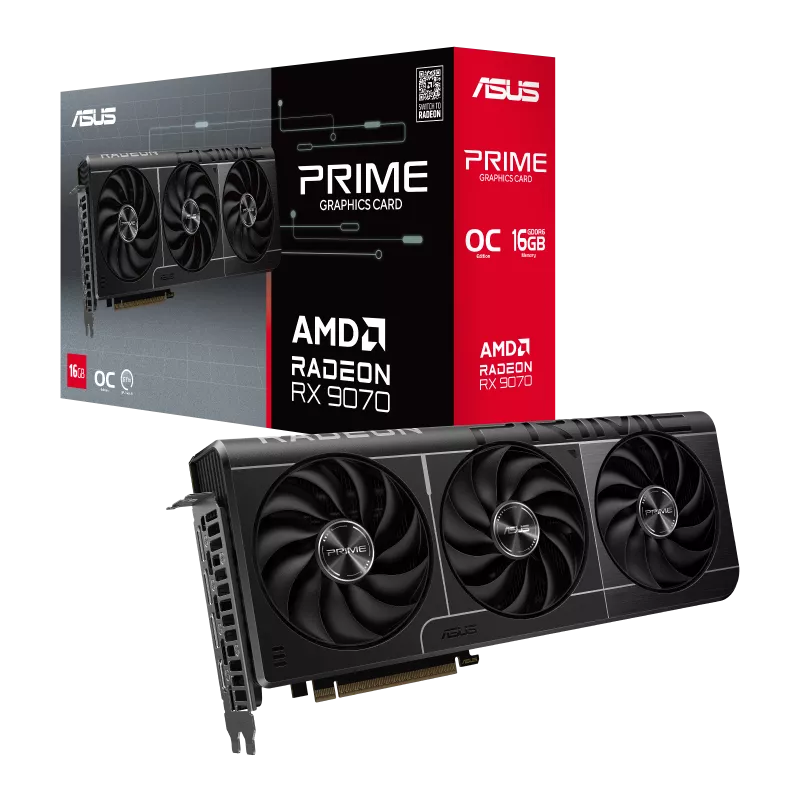

• ASUS Prime Radeon™ RX 9070 OC Edition 16GB GDDR6 Graphics Card
• Thank You Card
• Speedsetup Manual
